Specifications
Brand Name :
WeSeW
Model Number :
CNC0184
Certification :
CE, ISO9001/UL
Place of Origin :
China
MOQ :
1pcs
Price :
US$5~US$50 per pc
Payment Terms :
T/T,Western Union
Supply Ability :
10,000 pieces per month
Delivery Time :
10-20 working day
Packaging Details :
Wooden Case
name :
Precision Splined Gear Shaft
OEM/ODM :
OEM ODM CNC Milling Turning Machining Service
Material Capabilities :
Aluminum, Brass, Bronze, Copper, Hardened Metals
Application :
Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery
Standard :
DIN, ASTM, GOST, GB, JIS, ANSI, BS
CNC Machining or Not :
CNC Machining
Micro Machining or Not :
Micro Machining
Processing Method :
Customer′s Engineering Drawing
Description
Custom High-Speed Spline Shaft Ball Spline

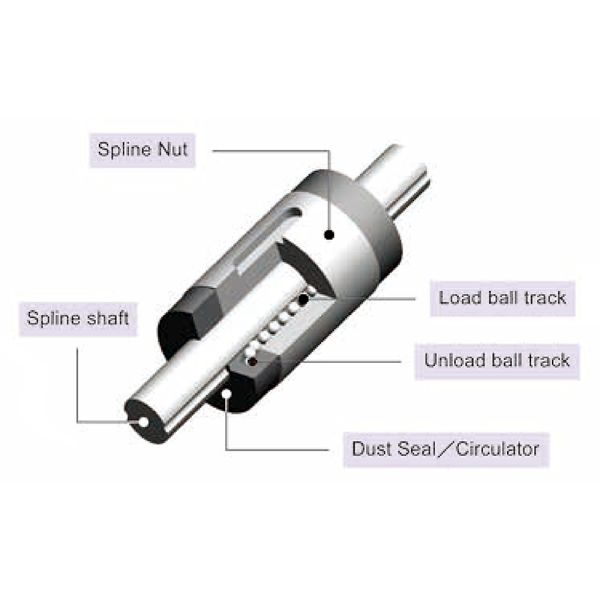

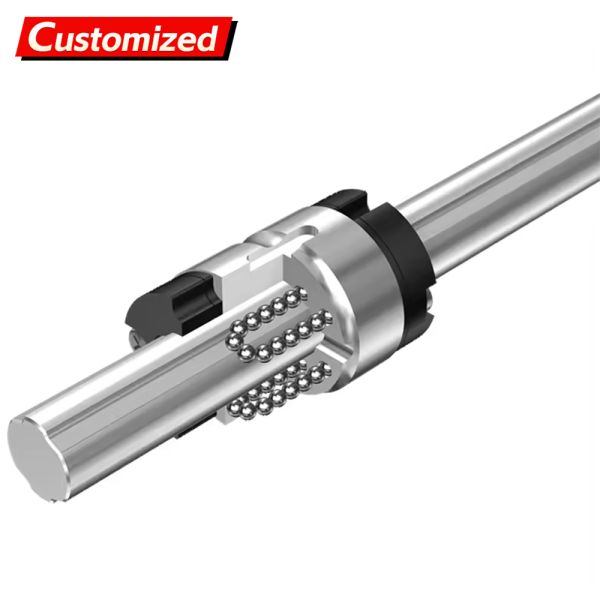

Ball splines are precision transmission components that integrate rotational and linear motion functions, primarily consisting of a splined shaft, splined sleeve, and circulating balls. They achieve efficient power transmission through the rolling motion of balls between the splined shaft and sleeve.
Product Specifications
Product Name: Ball Spline
Model: 25
Material: Bearing Steel
Manufacturing Process: Rolled Thread
Core Components: Bearing
Length: Customized
Weight: 1 kg
Condition: New
Warranty: 1 Year
Key Advantages
  • High Transmission Efficiency: Point contact between balls and raceways minimizes friction coefficients, reducing energy loss while delivering responsive operation and superior dynamic performance
  • High Positioning Accuracy: Preload adjustment eliminates rotational backlash, enabling zero-backlash transmission with micrometer-level repeatability precision
  • Strong Load-Bearing Capacity: Gothic 40° angular contact structure increases contact area, handling radial, axial, and overturning torque loads simultaneously
  • Compact & Durable Design: Single shaft enables dual-degree-of-freedom motion, reducing installation space with excellent lubrication and extended service life
Industry Applications
Building Material Shops, Manufacturing Plants, Machinery Repair Shops, Printing Shops, Construction Works, Energy & Mining, Advertising Companies, and various other industrial sectors. Specifically used in CNC machine tools, industrial robots, medical equipment, aerospace, automotive manufacturing, and precision printing machinery.
