Specifications
Brand Name :
WeSeW
Model Number :
CNC0184
Certification :
CE, ISO9001/UL
Place of Origin :
China
MOQ :
1pcs
Price :
US$5~US$50 per pc
Payment Terms :
T/T,Western Union
Supply Ability :
10,000 pieces per month
Delivery Time :
10-20 working day
Packaging Details :
Wooden Case
name :
Flexible Star Couplings
OEM/ODM :
OEM ODM CNC Milling Turning Machining Service
Material Capabilities :
Aluminum, Brass, Bronze, Copper, Hardened Metals
Application :
Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery
Standard :
DIN, ASTM, GOST, GB, JIS, ANSI, BS
CNC Machining or Not :
CNC Machining
Micro Machining or Not :
Micro Machining
Processing Method :
Customer′s Engineering Drawing
Description

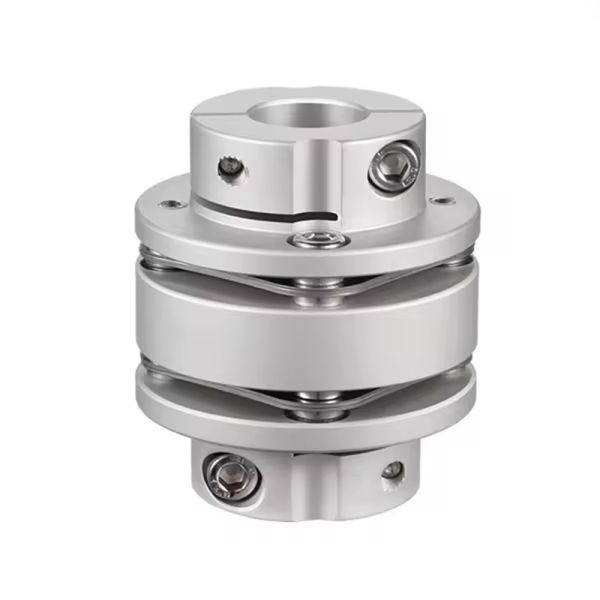

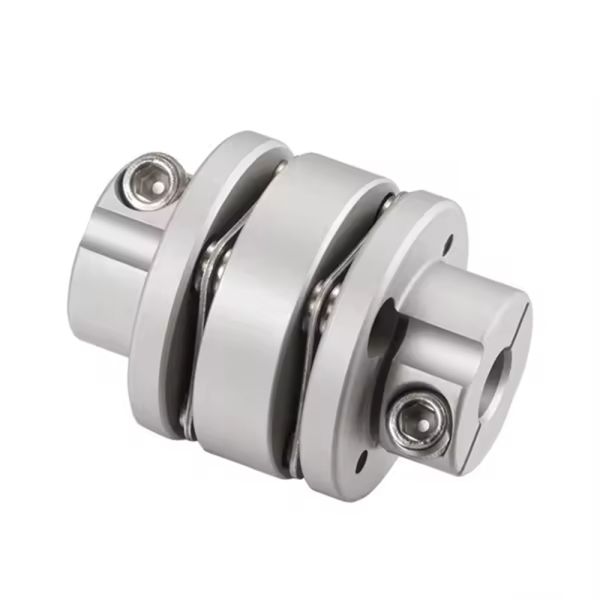

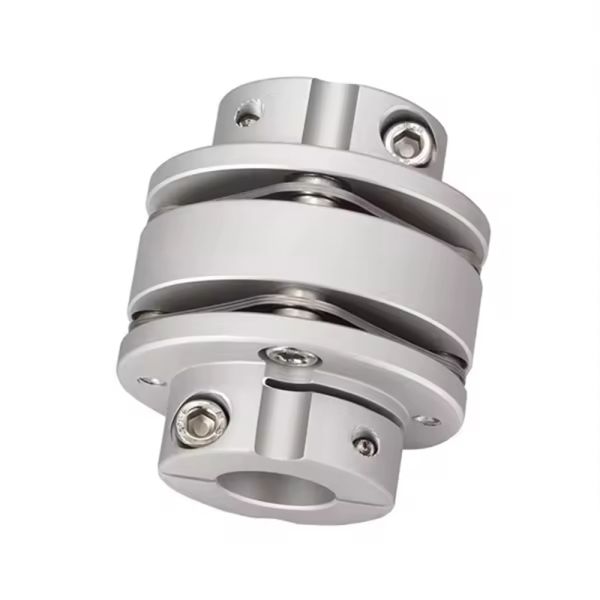

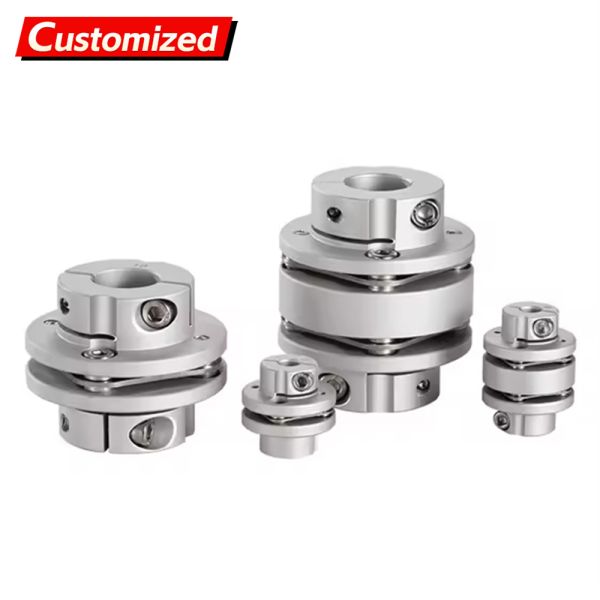

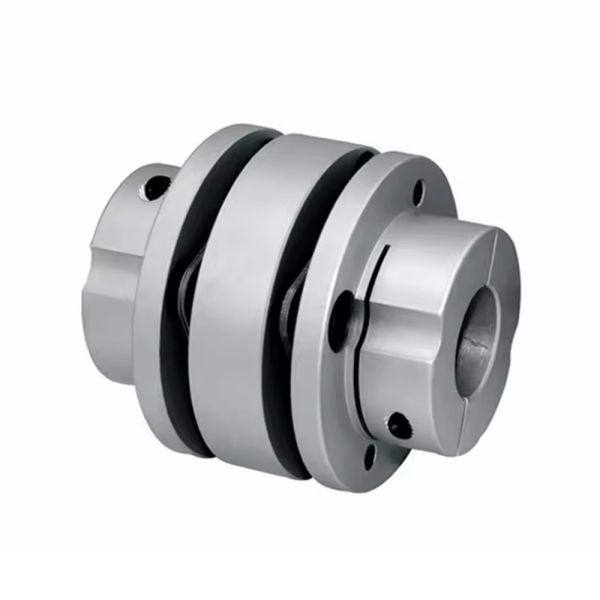

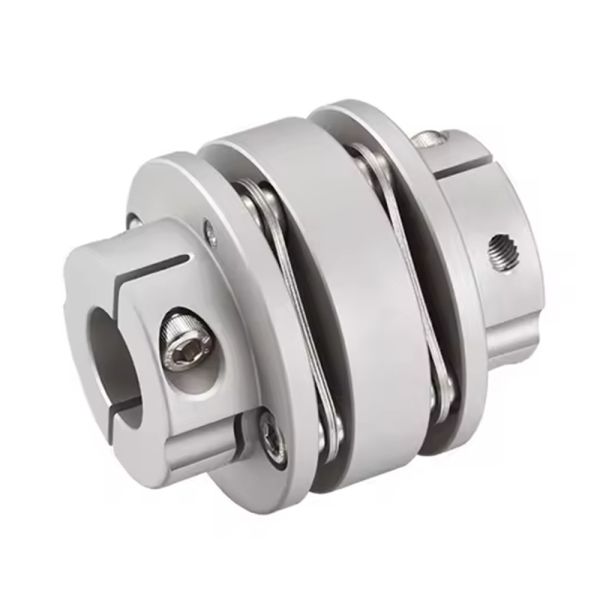

Custom High-Torque GLT Two-Stage Rigid Coupling
This two-step double-diaphragm coupling provides reliable two-shaft axial connection for torque transmission and drive equipment applications.
Product Specifications
Applicable Industries:
Production workshop, repair shop, other
Material:
Aluminium
Standard or Nonstandard:
Standard
Structure:
Universal
Customized Support:
Standard
Flexible or Rigid:
Rigid
Aperture:
5-38mm
Rated Torque:
2-90 Nm
Key Features
  • Designed for servo and stepper motors
  • Zero gap between shaft and sleeve connection, suitable for forward and reverse rotation
  • Low inertia design, optimized for high-speed operation
  • Diaphragm made of spring steel with excellent fatigue resistance
The double-step double-diaphragm coupling is a high-performance flexible transmission component that connects two sets of diaphragms via an intermediate shaft, specifically engineered to address complex shaft misalignment challenges.
Working Principle
Utilizes elastic three-dimensional deformation generated by dual diaphragm assemblies at both ends of the intermediate shaft to transmit torque from the driving shaft to the driven shaft. Compared to single-diaphragm structures, it can flex simultaneously in multiple directions, more efficiently absorbing combined axial, radial, and angular misalignment while eliminating additional stresses.
Core Advantages
Zero Maintenance: Requires no lubrication or seals
Zero Backlash: No rotational clearance during operation
High Efficiency: Transmission efficiency up to 99.86%
Enhanced Compensation: Dual-step design provides twice the angular displacement capacity of single-diaphragm types
Corrosion Resistant: Resists acid and alkali corrosion
Temperature Range: Withstands extreme environments from -80°C to 300°C
Long Service Life: Exceeds 10 years of reliable operation
Applications
Widely used in heavy-duty equipment such as high-power fans, chemical pumps, and compressors, as well as precision scenarios demanding exceptional transmission accuracy and stability—including aerospace and semiconductor manufacturing applications.
