Specifications
Brand Name :
WeSeW
Model Number :
Kai003
Certification :
CE/UL
Place of Origin :
china
MOQ :
1 pc
Price :
US$15,000~US$30,000 per pc
Payment Terms :
T/T,Western Union
Supply Ability :
500000/Year
Delivery Time :
20~40 working day
Packaging Details :
Wooden Case
Model NO. :
Kai003
Condition :
New
Control System :
Button Control
Cooling Method :
Air Cooling
Heating Method :
Electric Heating
Main Material :
Alloy Steel, Carbon Steel, Stainless Steel
Mixing Capacity :
500-1000L
Safety Features :
Anti-Slip Feet, Emergency Stop Button, Overload Protection, Safety Lock, Splash Guard
Speed Control :
Variable Speed
Speed Range :
30-39 R/min
Stirring Type :
Spiral
Temperature Control :
With Heating
Working :
High Speed Mixer
Material Processed :
Plastics, Chemicals, Food, Medicine
Key Selling Points :
Easy to Operate
Machinery Test Report :
Provided
Application Scope :
Food Pharmacy Chemical
Core Components :
Motor, Gearbox
Color :
Clients Request
Transport Package :
Wooden Box
Specification :
Customized
Trademark :
WESEW
Origin :
China
Package Size :
150.00cm * 50.00cm * 50.00cm
Package Gross Weight :
80.000kg
After-sales Service :
Engineers Available to Service Machinery Overseas
Application :
Granules, Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid
Application Area :
Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Metallurgy&Mineral, Pharmaceutical
Customization :
Available Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Description
Custom-designed 200L 304/316 Stainless Steel Mixing Tanks
A mixing tank (or agitator tank) is a precision-engineered vessel designed to blend or combine different substances or components to create a homogenous mixture. It ensures uniform consistency in processes involving liquids, slurries, or solid-liquid mixtures.
Product Specifications
Material Processed: Chemicals, Food, Liquid
Capacity: 200 L
Mixer Type: Agitator
Material: SUS304L, SUS316L
Product Type: Food
Configuration: Vertical
Additional Capabilities: Blending
Voltage: 380 V, 220 V
Power: 3 kW, 1.5 kW
Core Components: Motor, Pump
Key Selling Points: Easy To Operate, High Productivity
Weight: 500 kg
Spindle Speed Range: 1 - 1200 r.p.m
Dimensions: Customized
Application Scope: Chemical, Cosmetic, Food
Main Features
Component Details
Tank Body • Materials: SS 304/316 L stainless steel (standard)
• Capacity: Capacity can be selected as needed
Agitation System • Blade type: Anchor type, frame type, flat paddle type, oblique paddle type, screw belt type, turbine type, propulsion type, and multiple types of composite types
• Motor Power: 0.55kW-200kW, with variable frequency drives (VFD) for speed control
• Shaft: Stainless steel with mechanical seals (single/double) for leak-proof operation
Auxiliary Systems • Baffles: 3-4 vertical baffles to prevent vortex formation
• Jackets: Steam/heating/cooling jackets for temperature control
• CIP/SIP: Clean-in-Place/Sterilize-in-Place systems for hygienic industries
Standard Capacity Specifications
Capacity (L) Tank Size (mm) Power (KW) Voltage (v)
100 500×500 0.75 220/380
200 650×630 0.75 220/380
300 750×700 0.75 220/380
500 850×900 1.5 380
1000 1050×1250 3 380

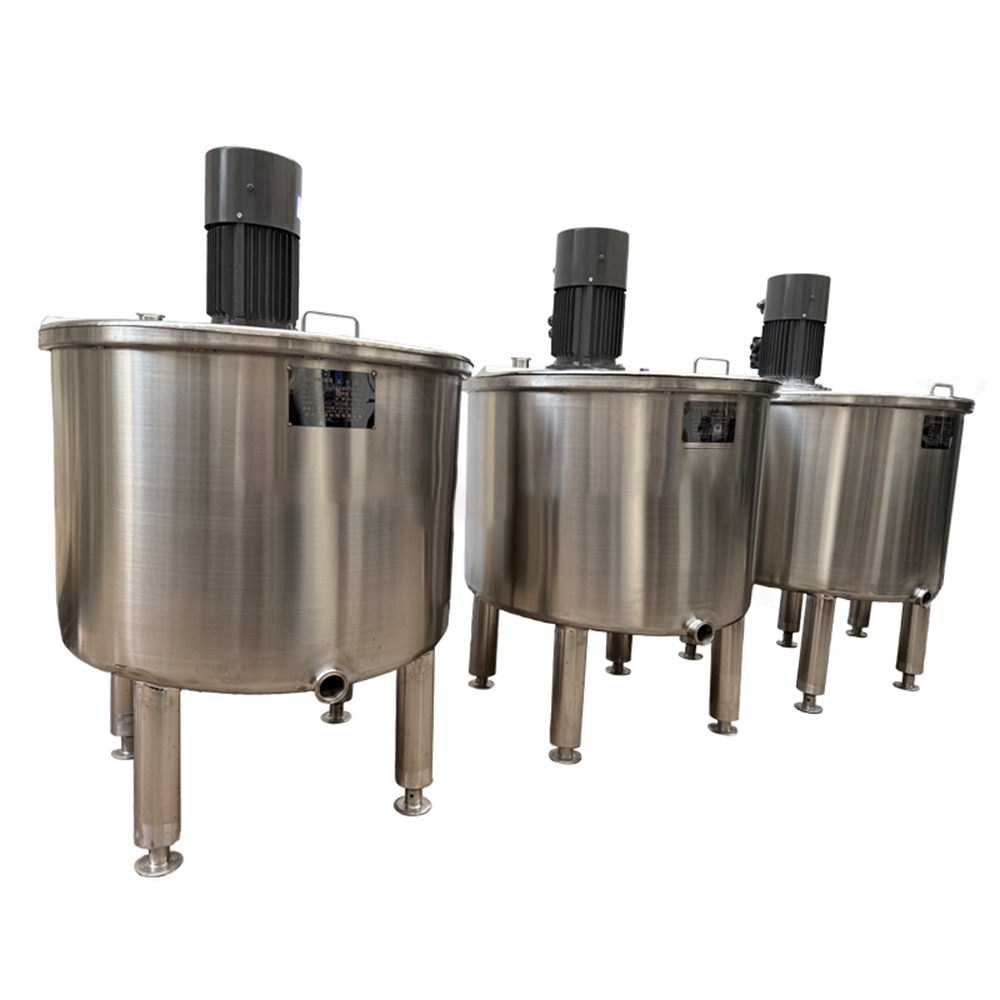

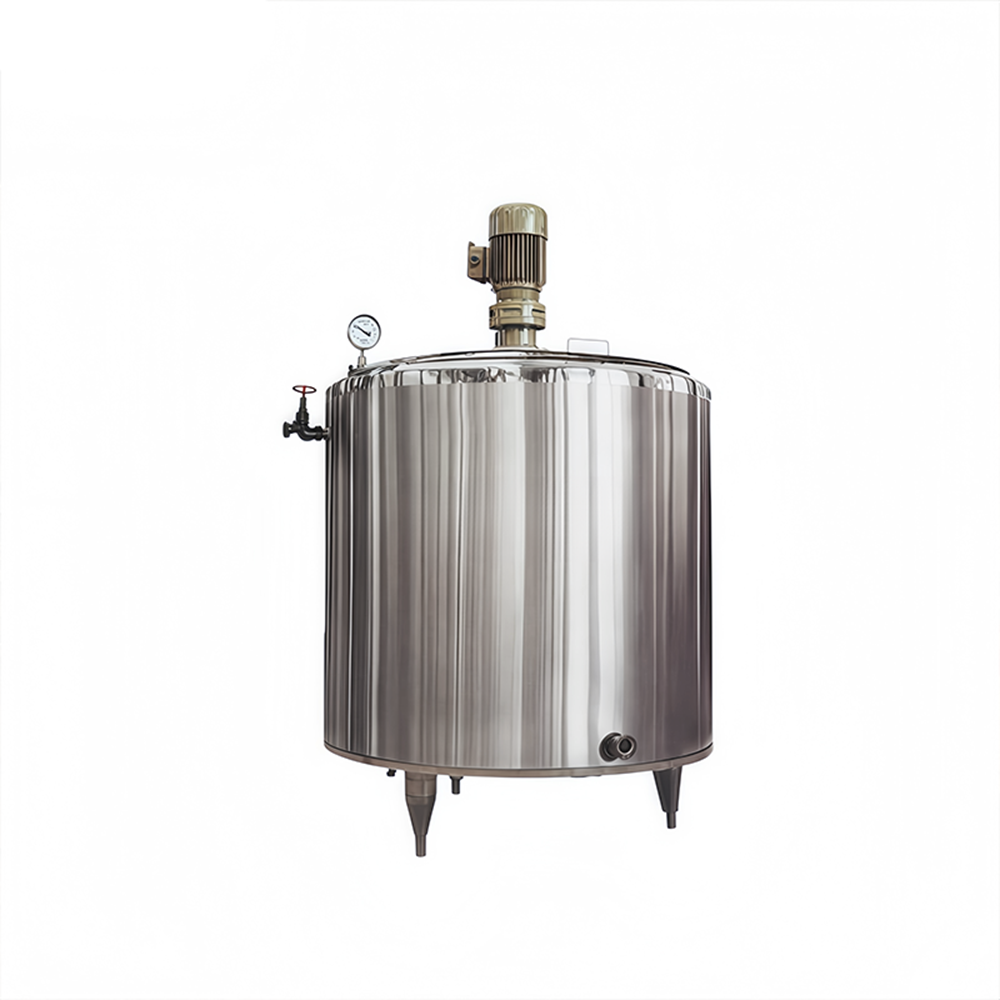

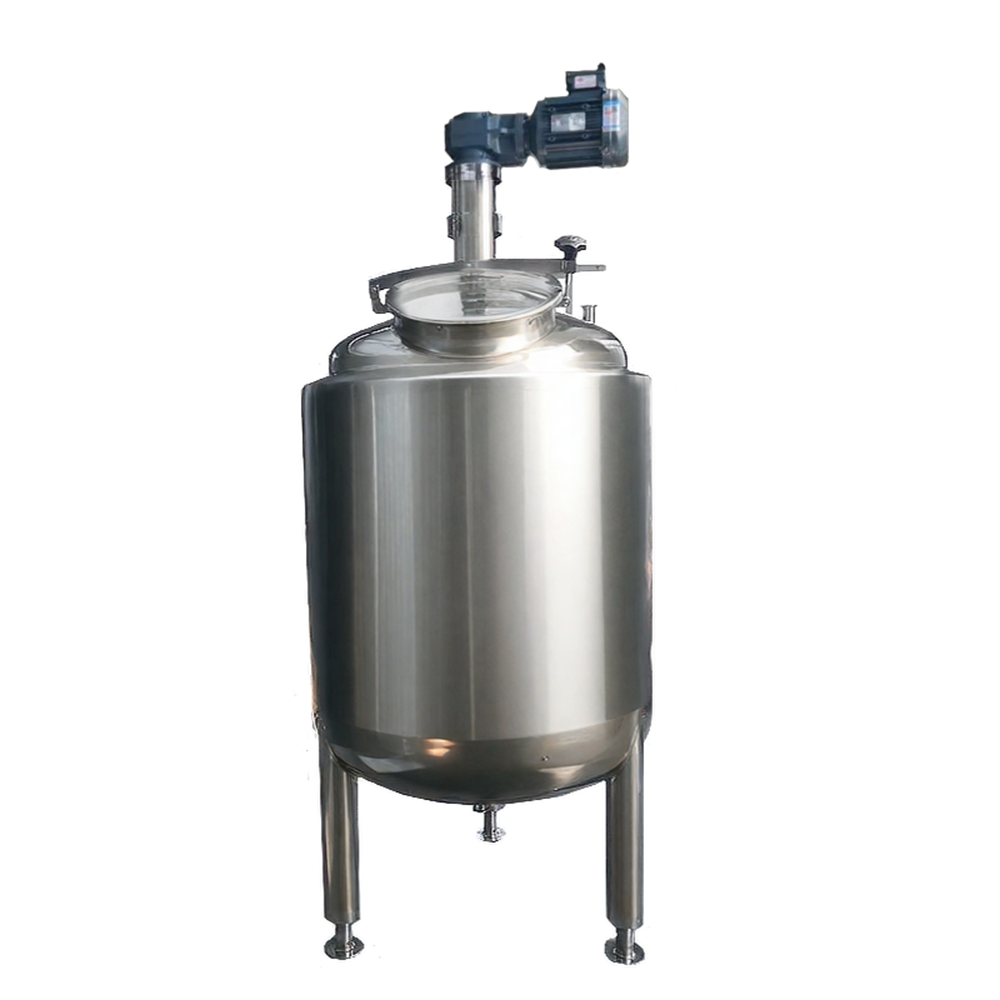

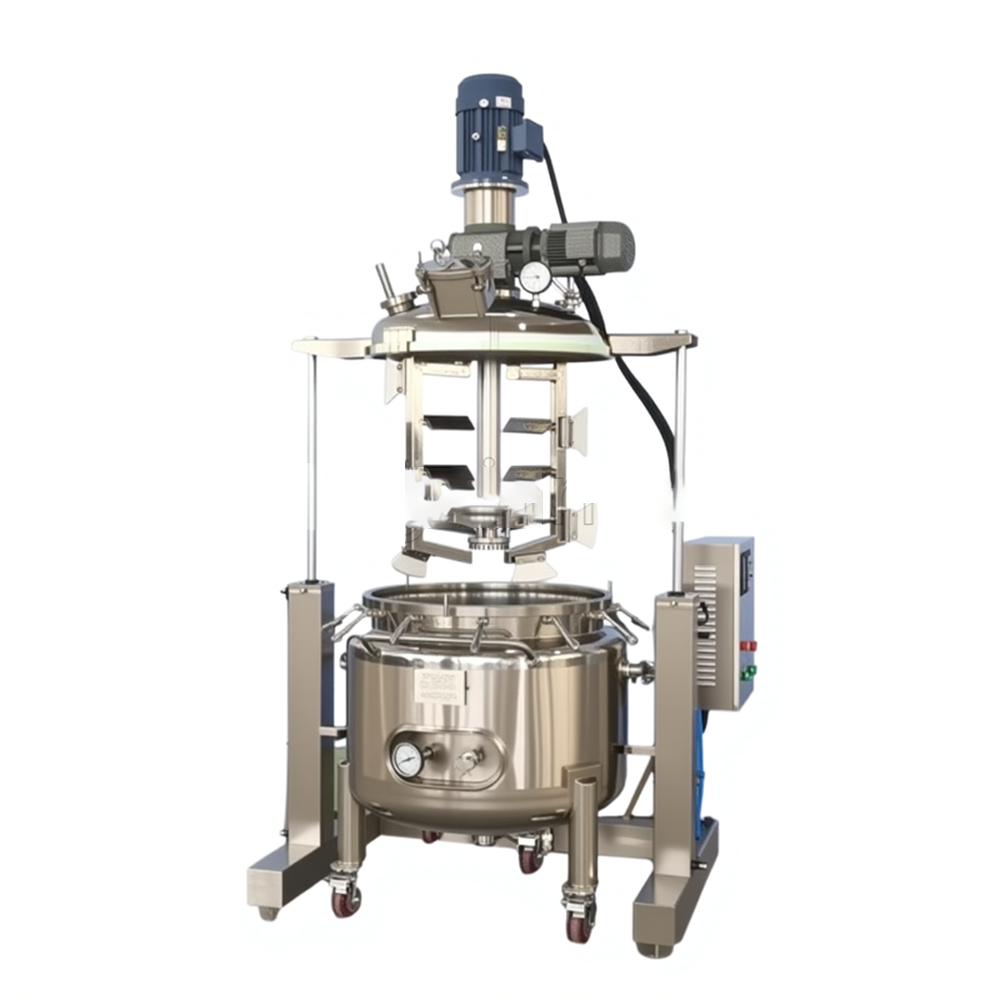

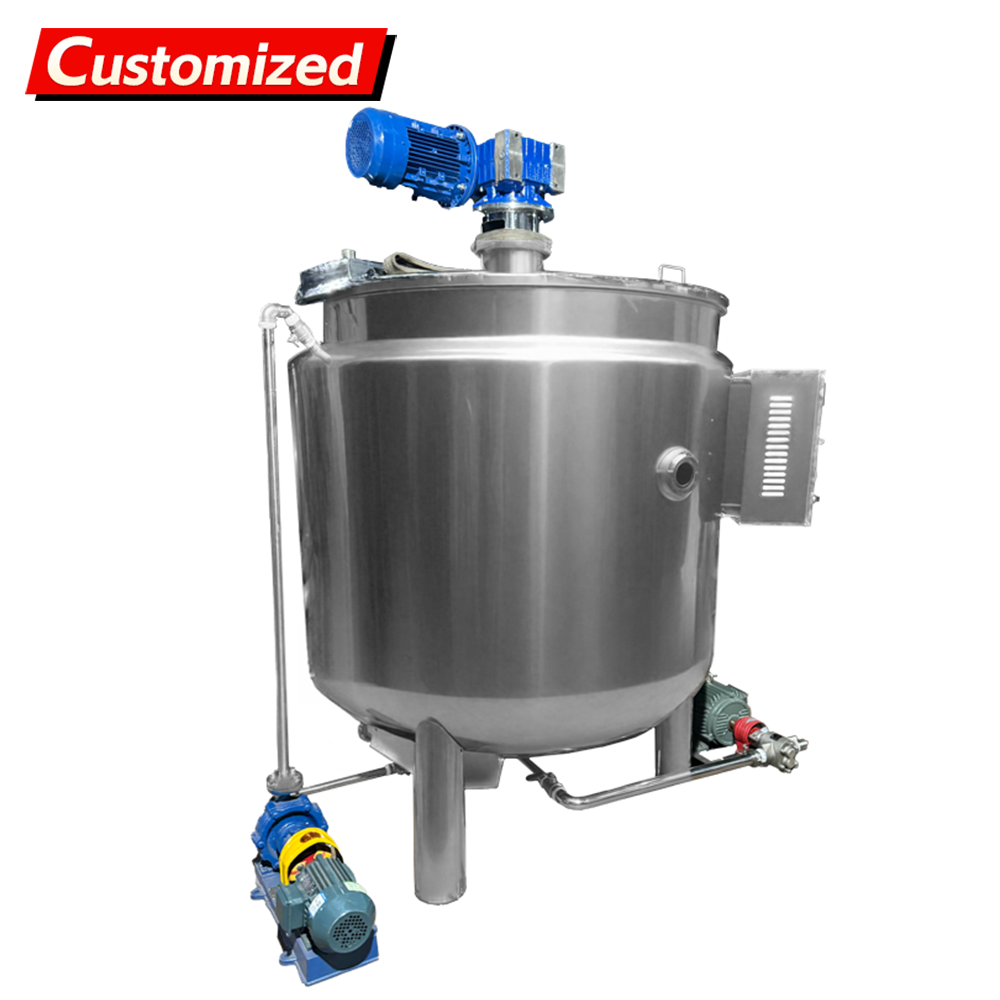

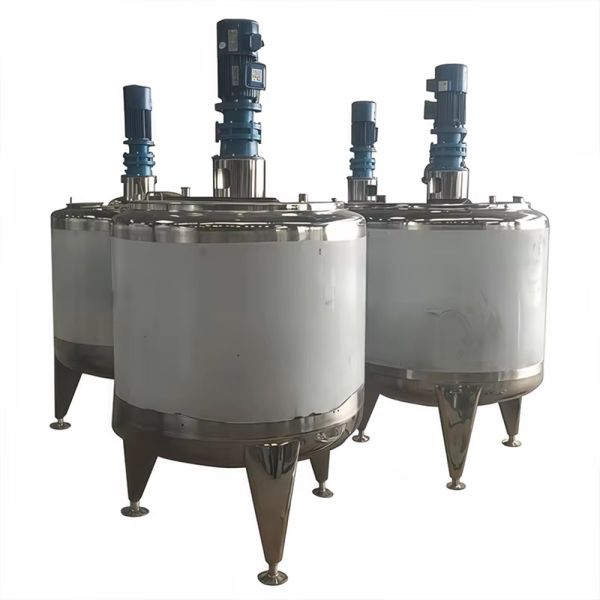

Product Images
Custom 200L Capacity 304/316 Stainless Steel Mixing Tank with Electric Heating for Food and Chemical Industries Custom 200L Capacity 304/316 Stainless Steel Mixing Tank with Electric Heating for Food and Chemical Industries Custom 200L Capacity 304/316 Stainless Steel Mixing Tank with Electric Heating for Food and Chemical Industries Custom 200L Capacity 304/316 Stainless Steel Mixing Tank with Electric Heating for Food and Chemical Industries Custom 200L Capacity 304/316 Stainless Steel Mixing Tank with Electric Heating for Food and Chemical Industries Custom 200L Capacity 304/316 Stainless Steel Mixing Tank with Electric Heating for Food and Chemical Industries
