Custom Stainless Steel Twin-Screw Mixer with Wear-Resistant Alloy, Variable Speed Control, and Dual-Input Reducer
Custom Stainless Steel Twin-Screw Mixer with Wear-Resistant Alloy, Variable Speed Control, and Dual-Input Reducer
Custom Stainless Steel Twin-Screw Mixer with Wear-Resistant Alloy, Variable Speed Control, and Dual-Input Reducer
Custom Stainless Steel Twin-Screw Mixer with Wear-Resistant Alloy, Variable Speed Control, and Dual-Input Reducer
Custom Stainless Steel Twin-Screw Mixer with Wear-Resistant Alloy, Variable Speed Control, and Dual-Input Reducer
Custom Stainless Steel Twin-Screw Mixer with Wear-Resistant Alloy, Variable Speed Control, and Dual-Input Reducer
Custom Stainless Steel Twin-Screw Mixer with Wear-Resistant Alloy, Variable Speed Control, and Dual-Input Reducer
Custom Stainless Steel Twin-Screw Mixer with Wear-Resistant Alloy, Variable Speed Control, and Dual-Input Reducer
Custom Stainless Steel Twin-Screw Mixer with Wear-Resistant Alloy, Variable Speed Control, and Dual-Input Reducer
Custom Stainless Steel Twin-Screw Mixer with Wear-Resistant Alloy, Variable Speed Control, and Dual-Input Reducer
Custom Stainless Steel Twin-Screw Mixer with Wear-Resistant Alloy, Variable Speed Control, and Dual-Input Reducer
Custom Stainless Steel Twin-Screw Mixer with Wear-Resistant Alloy, Variable Speed Control, and Dual-Input Reducer
Specifications
Mixing Capacity :
500-1000L
Model Number :
Kai003
Cooling Method :
Air Cooling
Brand Name :
WeSeW
Speed Control :
Variable Speed
Working :
High Speed Mixer
Main Material :
Alloy Steel, Carbon Steel, Stainless Steel
MOQ :
1 pc
Delivery Time :
20~40 working day
Application Scope :
Food Pharmacy Chemical
Key Selling Points :
Easy to Operate
Control System :
Button Control
Payment Terms :
T/T,Western Union
Material Processed :
Plastics, Chemicals, Food, Medicine
Machinery Test Report :
Provided
Price :
US$15,000~US$30,000 per pc
Speed Range :
30-39 R/min
Safety Features :
Anti-Slip Feet, Emergency Stop Button, Overload Protection, Safety Lock, Splash Guard
Supply Ability :
10,000 pieces per month
Heating Method :
Electric Heating
Stirring Type :
Spiral
Certification :
CE/UL
Core Components :
Motor, Gearbox
Place of Origin :
china
Temperature Control :
With Heating
Packaging Details :
Wooden Case
Description

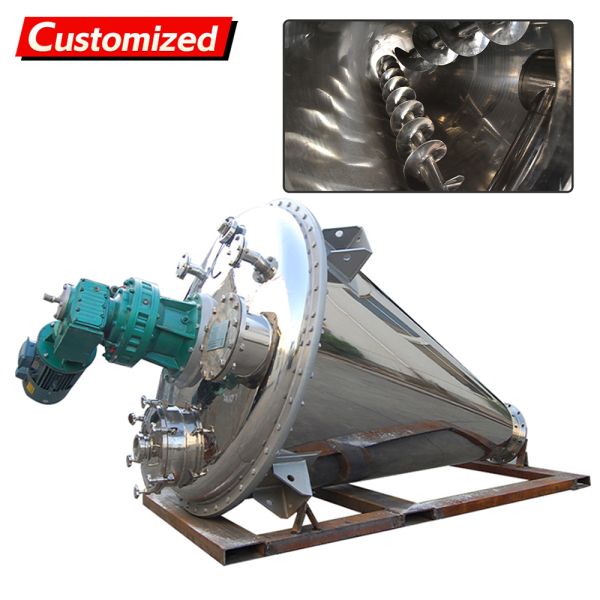

Custom Stainless Steel Twin-Screw Mixer with Conical Agitator
Professional-grade twin-screw conical mixer featuring polished and brushed finish, constructed from wear-resistant alloy with dual-input reducer for optimal performance in industrial mixing applications.
Material Selection
Available in carbon steel, manganese steel, SS304, 316L, and 321. Different materials can be used for parts contacting and non-contacting with raw materials. Surface treatments include sandblasting, wire drawing, polishing, and mirror polishing.
Driven Unit
Equipped with appropriative double output reducer combining pinwheel, gear, and worm gear configurations. Drive unit and power specifications vary according to raw material properties, starting methods, and processing requirements.
Discharging Unit
Available with spherical valve or plum-blossom dislocation valve. Valve surfaces match screw bottom track to minimize mixing dead zones and maximize discharging area, ensuring no leftover material. Excellent sealing performance for powders and liquids.
Auxiliary Components
Optional circulation medium jacket for temperature control. Custom coatings for anti-riot, anti-caking, and metal isolation. Spraying or atomizing units for liquid addition. Wear-proof alloy overlays for severe conditions.

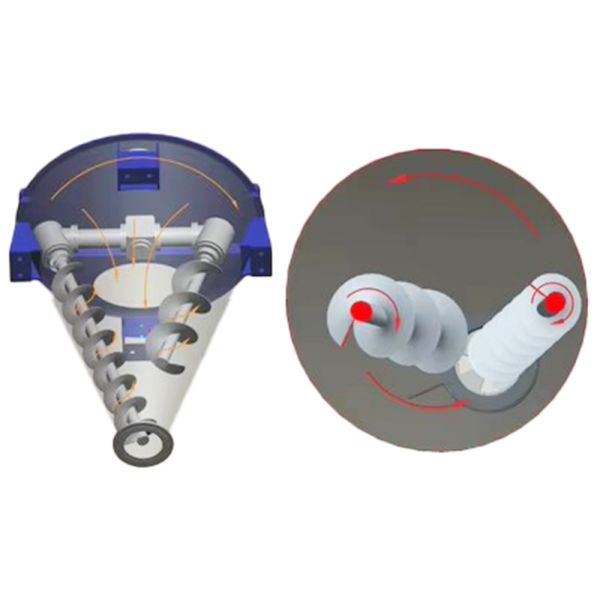

Mixing Mechanism
Double screw conical mixer rotates around its axis using two internal asymmetric spirals mounted on cantilever. The rotational force drives spirals in revolution around conical chamber axis, creating four-direction material movement:
  • Two inner asymmetric spirals upgrade materials by rotation
  • Tumbler low-speed rotation creates circular material motion
  • Spiral rotation and revolution absorb and diffuse materials
  • Two upward material flows converge downward to center, forming convective circulation
Selection Guidelines
  • Choose batch working capacity from 0.1 m³ to 20 m³
  • Select contact and non-contact materials (mild steel, SUS304, SUS316L, SUS321)
  • Determine motor power based on material gravity, fluidity, and operation type
  • Add auxiliary components (spraying, heating, cooling) as needed
  • Configure mixer inlets: feeding ports, cleaning port, vent
  • Choose discharging and driven modes: manual, pneumatic, electric
Important: Mixer selection requires detailed material information, processing conditions, and factory arrangement. Our technical team provides professional support for optimal configuration.
