3 X2.5MM2 household Electrical power wire
3 X2.5MM2 household Electrical power wire
3 X2.5MM2 household Electrical power wire
3 X2.5MM2 household Electrical power wire
3 X2.5MM2 household Electrical power wire
3 X2.5MM2 household Electrical power wire
3 X2.5MM2 household Electrical power wire
3 X2.5MM2 household Electrical power wire
3 X2.5MM2 household Electrical power wire
3 X2.5MM2 household Electrical power wire
Specifications
Brand Name :
sihuan
Model Number :
3X2.5mm2
Certification :
CE
Place of Origin :
china
MOQ :
1000m
Supply Ability :
1000km
Delivery Time :
30 days
Packaging Details :
film
Description

Basic Info.

Model NO.
RVV
Application
Movable Power Supply
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Round Wire
Range of Application
Flame Retardant
Certification
ISO9001, CCC
Brand
Jinshui
Voltage
300/500 V
Working Temp.
70 Degrees
Optional Feature
Flame Retardant, Fire Resistant
Sheath Color
White or Black
Transport Package
100 Meters Per Roll
Specification
15cm*15cm*8cm
Trademark
Jinshui
Origin
China
HS Code
8544492100
Production Capacity
500 Km Per Month

Product Description

Standard
IEC 60227-5: Polyvinyl chloride insulated cables of rated voltages up to and including 450/750 V - Part 5: Flexible cables (cords)

Application

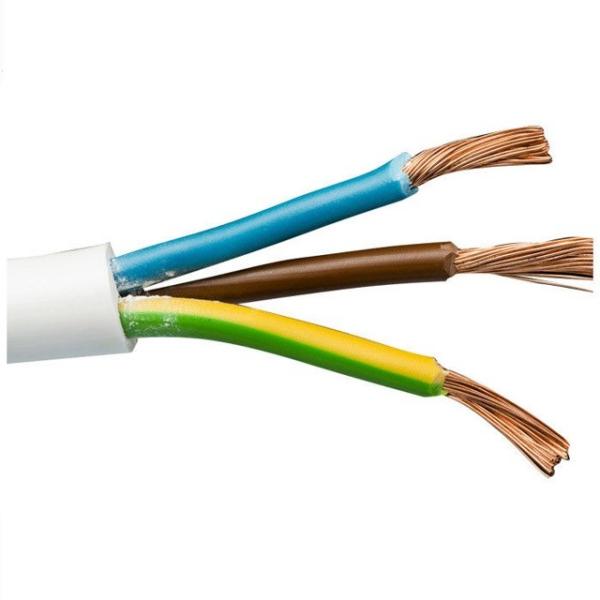

This pvc insulated and sheathed flexible 3x2.5mm2 power cable is used in movable power applications of rated voltage 300/500V and below.

Product Details
1) Conductor: Class 5 stranded copper, 49/0.25 mm
2) Sectional area: 2.5 mm2
3) Insulation: PVC, 0.8 mm
4) No. of cores: 3
5) Outer sheath: PVC, 1.2 mm
6) Overall diameter: 10.5 mm
7) Net weight: 154 kg/km
8) Max. working temperature: 70 ºC
9) Max. DC resistance at 20ºC: 7.98 Ω/km
10) Optional features: flame retardant, fire resistant, weather resistant
