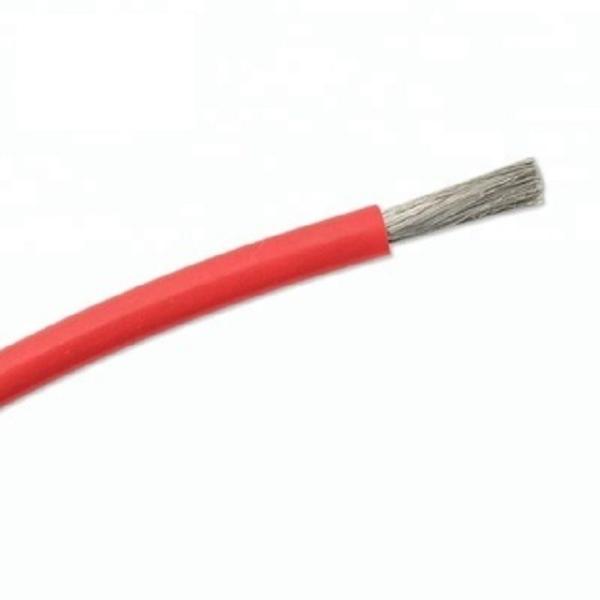

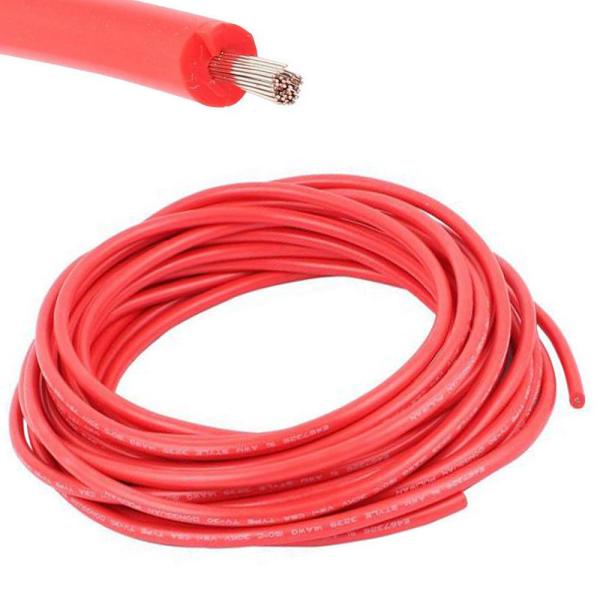

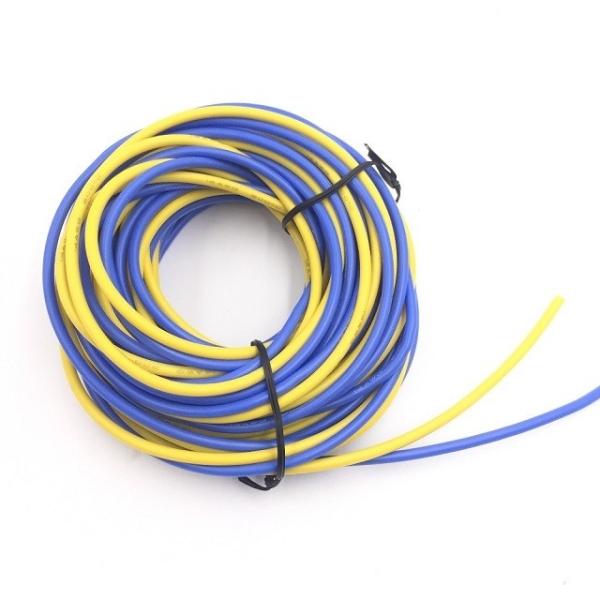

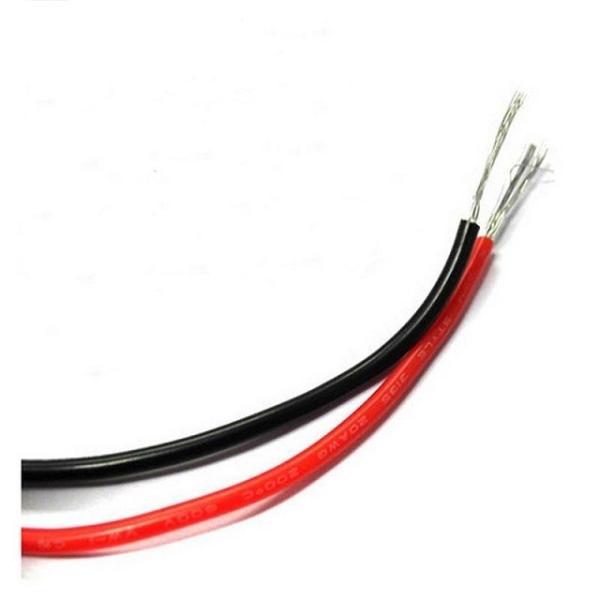

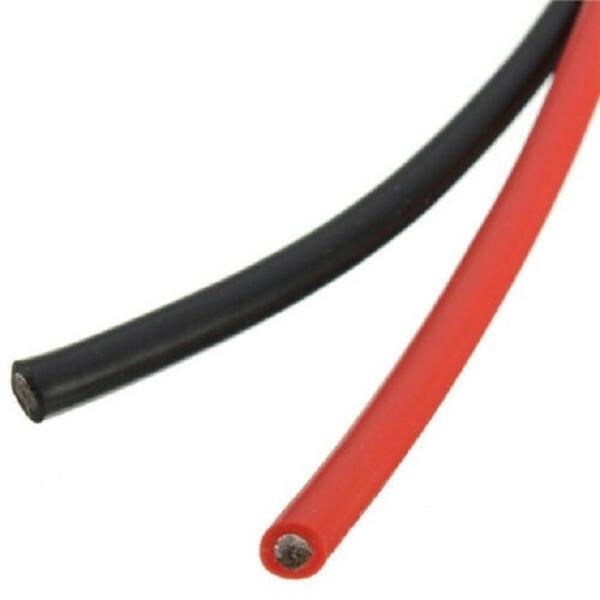

Stranded Conductor Rubber Insulation Wire UL AWM 3135 300C Silicon Heating Cable 8 10 12 16 14GA
Stranded Conductor Rubber Insulation Wire UL AWM 3135 300C Silicon Heating Cable 8 10 12 16 14GA
Stranded Conductor Rubber Insulation Wire UL AWM 3135 300C Silicon Heating Cable 8 10 12 16 14GA
Stranded Conductor Rubber Insulation Wire UL AWM 3135 300C Silicon Heating Cable 8 10 12 16 14GA
Stranded Conductor Rubber Insulation Wire UL AWM 3135 300C Silicon Heating Cable 8 10 12 16 14GA
Stranded Conductor Rubber Insulation Wire UL AWM 3135 300C Silicon Heating Cable 8 10 12 16 14GA
Stranded Conductor Rubber Insulation Wire UL AWM 3135 300C Silicon Heating Cable 8 10 12 16 14GA
Stranded Conductor Rubber Insulation Wire UL AWM 3135 300C Silicon Heating Cable 8 10 12 16 14GA
Stranded Conductor Rubber Insulation Wire UL AWM 3135 300C Silicon Heating Cable 8 10 12 16 14GA
Stranded Conductor Rubber Insulation Wire UL AWM 3135 300C Silicon Heating Cable 8 10 12 16 14GA
Stranded Conductor Rubber Insulation Wire UL AWM 3135 300C Silicon Heating Cable 8 10 12 16 14GA
Stranded Conductor Rubber Insulation Wire UL AWM 3135 300C Silicon Heating Cable 8 10 12 16 14GA
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
SIHUAN
Model Number :
8 10 12 16 14GA
Type :
TINNED COPPER
Application :
Heating
Conductor Material :
TINNED COPPER
Conductor Type :
Stranded
Insulation Material :
SILICON RUBBER
MOQ :
100 rolls
Price :
Negotiable
Description

HIGH TEMPERATURE WIRE

AWM 3135

Rated Temperature: 200℃

Rated Voltage: 600V

Insulation: Silicone Rubber Insulation

Conductor: Tinned Copper

Standard: UL758, UL1581

UL File No.: E310829

MARKING

E310829 AWM STYLE 3135 NO.AWG 200℃ 600V SILICONE RUBBER POWER ACT AWM I A 200℃ 600V FT2 -LF-

PERFORMANCE SPECIFICATION


Electrical Properties		 Dielectric Strength Test 2000V , without break down
Spark Test 3000V AC,without break down
Insulation Resistance ≥8MΩ
Physical Performance Tensile Strength ≥3.45 Mpa
Elongation ≥100 %
Tensile Force ≥6.0N
FT2 Flame test Shall not convey flame along its length,shall not convey flame to combustible materials in its vicinity.

STRUCTURE

Type AWG Conductor Size
(No./ mm)
±0.005mm		 Conductor Resistance
20℃
(Ω/Km)		 Conductor
Dia.(mm)		 Insulation thickness
(mm)		 Overall Diameter
(mm)		 Package m/roll
Nom. Min. Average Tolerance
3135 12 7/0.78 5.64 2.40 0.76 0.69 4.00 ±0.15 200
65/0.254 5.64 2.36 0.76 0.69 4.00 ±0.15 200
14 41/0.254 8.96 1.87 0.76 0.69 3.50 ±0.15 200
16 7/0.50 14.60 1.52 0.76 0.69 3.10 ±0.15 305
26/0.254 14.60 1.49 0.76 0.69 3.10 ±0.15 305
52/0.18 14.60 1.50 0.76 0.69 3.10 ±0.15 305
18 7/0.39 23.20 1.19 0.76 0.69 2.80 ±0.10 305
16/0.254 23.20 1.17 0.76 0.69 2.80 ±0.10 305
34/0.18 23.20 1.21 0.76 0.69 2.80 ±0.10 305
20 7/0.31 36.70 0.94 0.76 0.69 2.55 ±0.10 305
10/0.26 36.70 0.95 0.76 0.69 2.55 ±0.10 305
21/0.18 36.70 0.95 0.76 0.69 2.55 ±0.10 305
22 7/0.254 59.40 0.77 0.76 0.69 2.40 ±0.10 305
17/0.16 59.40 0.76 0.76 0.69 2.40 ±0.10 305
24 7/0.20 94.20 0.61 0.76 0.69 2.20 ±0.10 305
11/0.16 94.20 0.61 0.76 0.69 2.20 ±0.10 305
26 7/0.16 150.00 0.48 0.76 0.69 2.10 ±0.10 305
