Plastic Housing Platform Scale Indicator , ID226P Weighing Terminal
Plastic Housing Platform Scale Indicator , ID226P Weighing Terminal
Plastic Housing Platform Scale Indicator , ID226P Weighing Terminal
Plastic Housing Platform Scale Indicator , ID226P Weighing Terminal
Plastic Housing Platform Scale Indicator , ID226P Weighing Terminal
Plastic Housing Platform Scale Indicator , ID226P Weighing Terminal
Plastic Housing Platform Scale Indicator , ID226P Weighing Terminal
Plastic Housing Platform Scale Indicator , ID226P Weighing Terminal
Specifications
Model Number :
ID226P
Place of Origin :
China
MOQ :
20 pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
large quantity
Delivery Time :
5~25 days
Packaging Details :
carton
Display :
Green LED,Red LED
Material :
plastic housing
Display Resolution :
200,000
Unit :
kg/lb
Interface :
RS232,RS485
Load Cell Number :
Max. 8x350 ohm
Update speed :
50ms
In-linearity :
less than 0.0015%FS
TC :
less than 5ppm/℃
Description

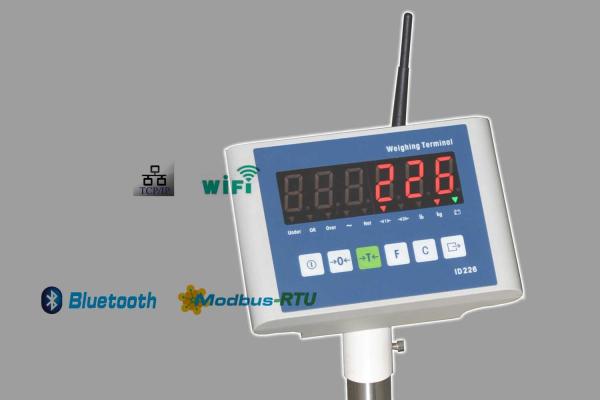

ID226P Weighing Terminal

-- LED Display Plastic Housing Platform Scale Indicator

Features:

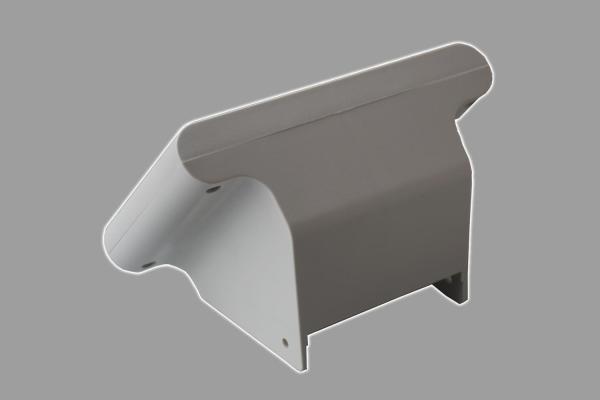

* Plastic housing

* 200,000 display division

* Support 350 ohm x 8 load cell

* Two display increment size range

* RS232/485 (standard)

* 6 bits 49mm height display, Green or Red LED

* MODBUS_RTU

* Basic weighing: Tare,Zero,Print,Auto Tare,Auto Clear and Auto Print,Unit Switch

* Mettler-Toledo SICS Commands

* Print and Totalization

* X10/ Over/Under/OK/Count/Animal Weighing/Unit Switch.

* Auto save battery and battery indicating

* Auto Power OFF

* Power Input:100~264VAC,≤0.1A

Options:

* NI-MH battery group, GP 7.2 VDC 3800mAh

* Lead-Acid cell battery, 6V4.0AH

* TCP/IP LAN port Option

* WIFI option

* Blue tooth option

Plastic Housing Platform Scale Indicator , ID226P Weighing Terminal

Specifications:

Accuracy class III
Display 6 bits 49mm high green or red LED display & 10 status lights
Update speed 50ms
Status display Over/Under/Ok,Count,kg/lb,Center of Zero,Net/Gross,Motion,Battery
5 function keys Tare,Clear,Zero,Function key,Print
ADC 24-bit,100Hz;
Resolution:0.1mV to 19mV input range;200,000d;0.05uV/d,1uV/d
In-linearity & TC ≤0.0015FS,≤5ppm/℃
Load cell Exciting Voltage:5V DC
Up to 8*350 ohm
4 wired or 6 wired,Cable:274mR/m2
Basic scale functions Calibration: 2-point,3-point,5-point
Filter: 3-step
Scale process:Tare,Zero,Auto zero,Motion,Auto tare,Auto clear,Auto Print & Print accumulation
Applications Basic weighing
Classify: Over/Under/Ok alarm output with relay output
Counting,Printing & accumulation,Animal weighing are also supported
Communication I/F RS232 & RS485,MODBUS-RTU:Continuous report weight,Demand input/output,Label print
LAN/WIFI: TCP,UDP,Continuous output,Demand input.output
Bluetooth: Continuous output,Demand input/output
Temperature -10℃~+40℃, 95%RH
Power supply 110VAC~220VAC 12W

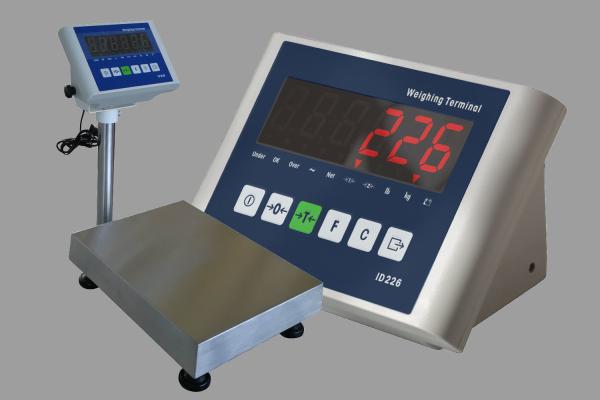

Typical Application:

Plastic Housing Platform Scale Indicator , ID226P Weighing Terminal

Successful Case:

Plastic Housing Platform Scale Indicator , ID226P Weighing Terminal
