Specifications
Model Number :
ID226SS-R
Place of Origin :
China
MOQ :
20 pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
large quantity
Delivery Time :
5~25 days
Packaging Details :
carton
Material :
Stainless steel
Waterproof Class :
IP66
Display :
Red LED
Display resolution :
200,000
Unit :
kg/lb
Standard interface :
RS232,RS485
Description

Stainless Steel Housing Platform Weighing Indicator

Brief Introduction:

This unit is a high precision industrial weighing indicator. It is typically designed for bench scale,floor scale and truck scale,etc. with high precison as well as high IP requirements.

Features:

* A304 stainless steel material, IP66

* 200,000 display division

* Two display increment size range

* 6 bits 49mm height Red LED display,10 status lights

* RS232/485 (standard)

* MODBUS_RTU

* Basic weighing: Tare,Zero,Print,Auto Tare,Auto Clear and Auto Print,Unit Switch

* Mettler-Toledo SICS Commands

* Print and Totalization

* X10/ Over/Under/OK/Count/Animal Weighing.

* Auto save battery and battery indicating

* Auto Power OFF

* Power Input:100~264VAC,≤0.1A

Options:

* NI-MH battery group, GP 7.2 VDC 3800mAh

* Lead-Acid cell battery, 6V4.0AH

* TCP/IP LAN port Option

* WIFI option

* Blue tooth option

Specifications:

Accuracy

* Accuracy class: III

* Approval: 200,000 display division

* Increment size: two display increment size range

Display & Keypad

* Display: 6 bits 49mm high Red LED display & 10 status lights

* Update speed: 100ms

* Status display: Over/Under/OK, Count, KG/LB, Center of Zero, Net/Gross, Motion, Battery

* Key: 5 function keys(Tare,Clear,Zero,Function key,Print)

* Power On/Off: spport

ADC

* Type and speed: 24-bit, 100Hz

* Resolution: 0.1mV to 10mV input range, 200,000d, 0.05uV/d, 1uV/e

Linearity and Stability

* In-linearity and TC: ≤0.0015% FS；≤5ppm/℃

Load Cell

* Exciting Voltage: 5V DC

* Load Cell Number: Max. 8x350ohm

* Connect Type: 4-wired or 6-wired, cable:274mR/m2

Scale Basic Functions
Calibration 2-point,3-point,5-point
Filter 3-step
Scale process Tare,Zero,Auto zero,Motion,Auto tare,Auto clear,Auto print & print accumulation
Inputs None
Outputs None
Applications
Basic weighing Tare,Zero,Print,Auto tare,Auto clear and auto print,Unit switch
Classify Over/Under/OK alarm output with relay output
Counting Supported
Print and accumulation Supported
Animal weighing Supported
Communication I/F
Serial port COM1-RS232,COM2-RS485,MODBUS-RTU,Continuous report weight,Demand input/output,Lable printer
LAN/WIFI TCP,UDP,Continuous output,Demand input/output
Bluetooth Continuous output, Demand input/output
Housing
Harsh IP66
Working condition
Temperature -10℃~40℃ , 95％ RH
Power supply 110VAC~220VAC, 12W

Waterproof IP66 Electronic Weighing Indicator Stainless Steel Housing Standard RS232/485

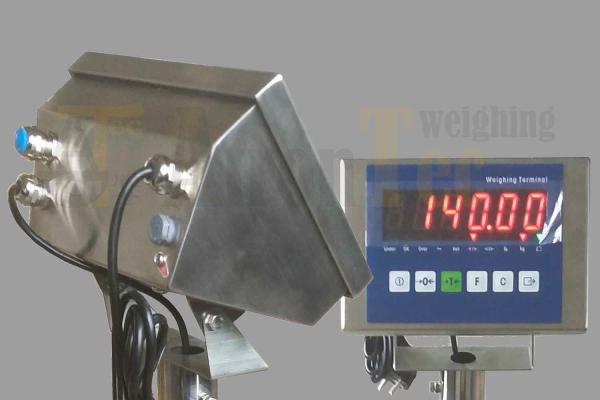

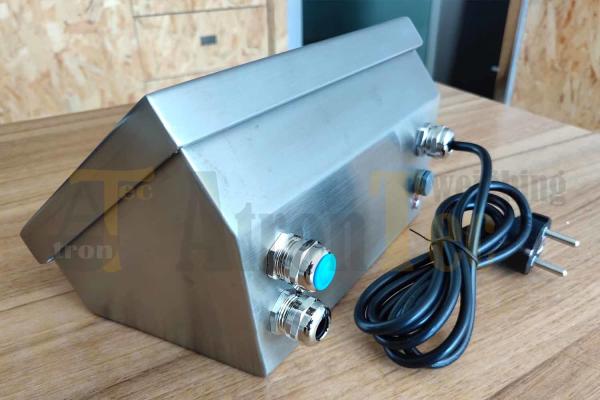

Product Pictures:

Waterproof IP66 Electronic Weighing Indicator Stainless Steel Housing Standard RS232/485

Waterproof IP66 Electronic Weighing Indicator Stainless Steel Housing Standard RS232/485
