Gigabit Ethernet 1000 Mbps POE Switch 16 Ports 2 Gigabit Uplink RJ45 150-260W
Gigabit Ethernet 1000 Mbps POE Switch 16 Ports 2 Gigabit Uplink RJ45 150-260W
Specifications
Poe ports :
16*PoE Ports
Mac address :
8K,16K
Brand Name :
OEM
Payment Terms :
T/T
Supply Ability :
20000pcs/Month
Subtype :
Gigabit Ethernet
Model Number :
ATD-P1602GD
Operating temperature :
0°C~40°C,0 ℃ ~ 85℃,0℃to 50℃,-40°C to + 70°C
Place of Origin :
CHINA
Delivery Time :
5-7 days
Switch capacity :
36Gbps
Packaging Details :
1pcs/box
Certification :
CE ROSH FCC ISO
Ports :
16+2
Poe standard :
IEEE802.3af/at
Transmission rate :
10/100/1000Mbps
Communication mode :
Full-Duplex & Half-Duplex
Description

Gigabit Ethernet PoE Switch 16 PoE Ports 2 Gigabit Uplink RJ45 Desktop Type 150-260W PoE Powered Network Switch for SMB & CCTV

Product Description

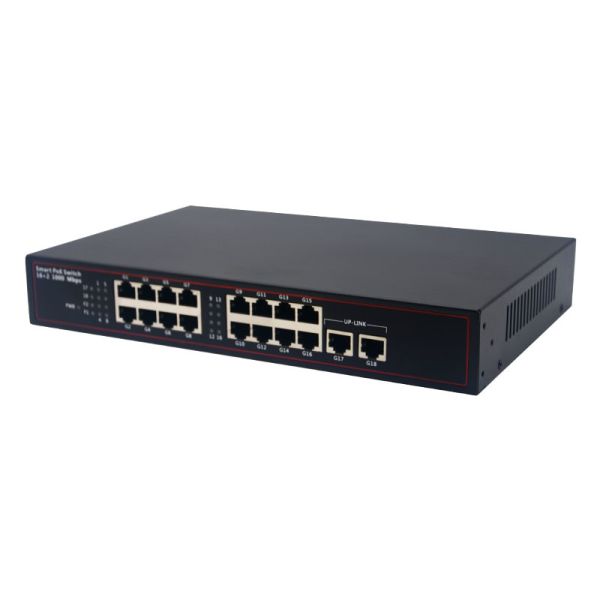

This compact desktop gigabit PoE switch is engineered for reliable all-in-one networking and power supply, perfectly tailored for surveillance projects and small-to-medium business scenarios. Featuring 16 full gigabit PoE+ ports paired with 2 independent gigabit uplink ports, it enables seamless connection to routers, NVRs or extra network devices to expand your network coverage freely.
It fully adheres to IEEE 802.3af/at PoE protocols, which can automatically identify and supply power to standard PoE devices. You can run IP cameras, wireless access points and VoIP phones via a single Ethernet cable, getting rid of scattered power cords and adapters to simplify wiring layout greatly.
Adopting classic desktop structure and solid metal shell, this unmanaged switch requires no professional configuration, just plug and play. The passive fanless cooling structure ensures zero noise during operation and excellent heat dissipation, supporting stable long-term work. Compact size saves placement space, and built-in multiple circuit protections guard your devices against voltage surges and overload risks.

Key Features

All-Gigabit Port Layout: 16 PoE+ RJ45 ports plus 2 dedicated gigabit uplink ports, full 10/100/1000Mbps auto negotiation for smooth data transfer

Standard PoE Support: IEEE 802.3af/at compliant, auto PoE detection, integrated power & data transmission for various PoE terminals

Practical Desktop Form: Compact desktop design, space-saving, easy to place on desk, cabinet and other indoor locations

Hassle-free Use: Unmanaged design, no driver or software needed, instant connection after plugging in

Silent & Stable Operation: Fanless passive cooling, no running noise; premium metal housing boosts heat dissipation and durability

Reliable Circuit Protection: Built-in overload, short circuit and surge protection to prevent device damage and extend service life

Wide Compatibility: Works well with IP cameras, WiFi access points, VoIP phones and other mainstream PoE network devices

Product Specifications

Item Details
Device Type Desktop Unmanaged Gigabit PoE Switch
Port Configuration 16 × Gigabit PoE+ RJ45, 2 × Gigabit Uplink RJ45
Compliance Standard IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at
Port Speed 10/100/1000 Mbps (Auto-negotiation)
Single Port PoE Output Up to 30W
Total PoE Power Budget 150-260W
Switching Capacity 36 Gbps
Forwarding Rate 26.8 Mpps
MAC Address Table 8K Entries
Cooling Mode Fanless (Passive Heat Dissipation)
Casing Material Metal
Power Input Built-in power supply, 100-240V AC
Installation Type Desktop
Operating Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 70°C
