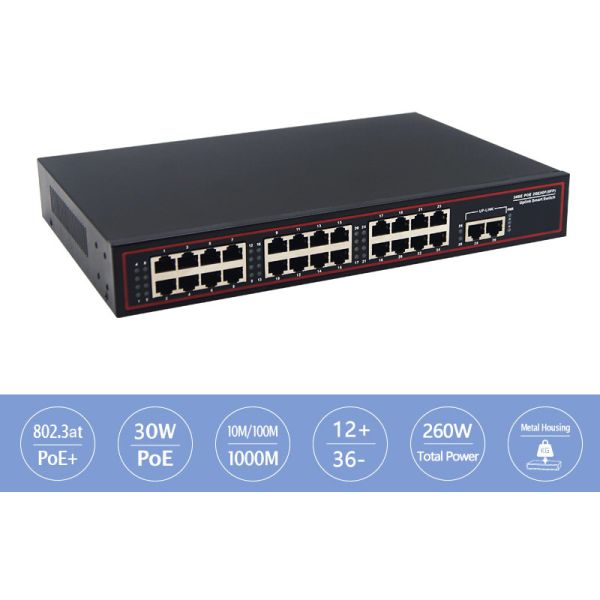

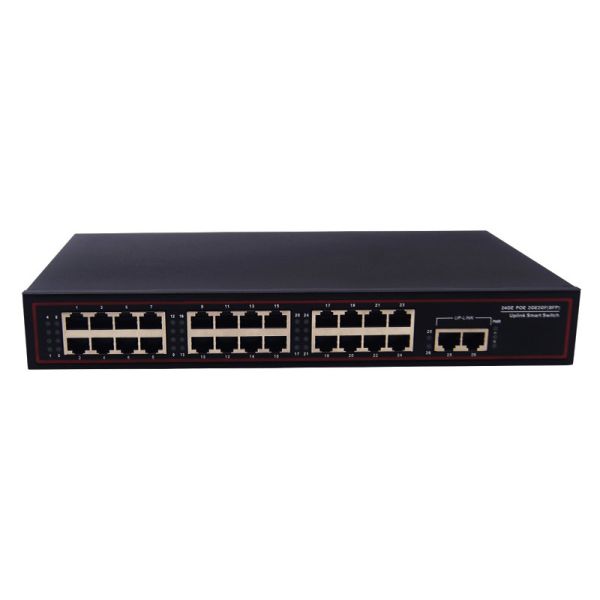

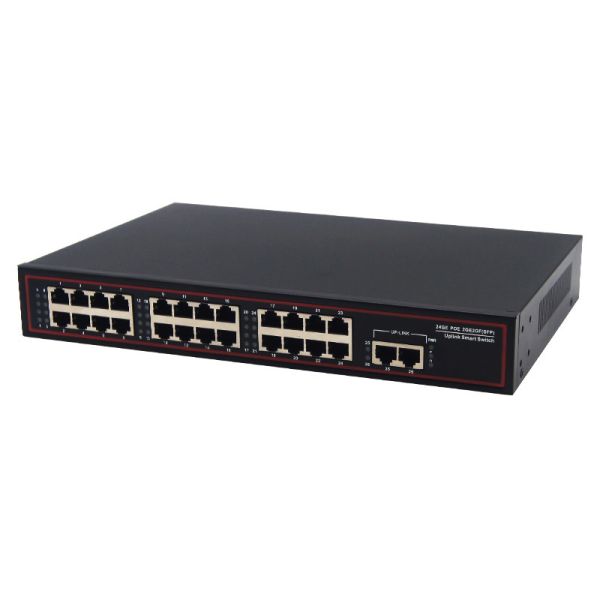

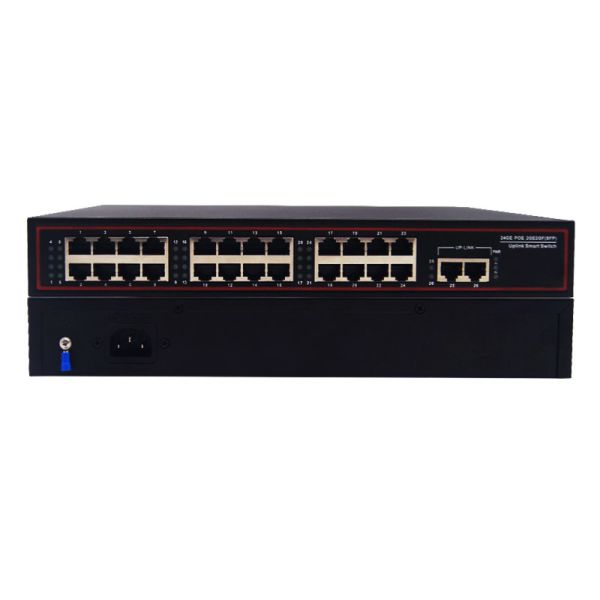

24 Port Full Gigabit PoE Ethernet Switch High Density Desktop PoE Switch 2 Uplink RJ45
24 Port Full Gigabit PoE Ethernet Switch High Density Desktop PoE Switch 2 Uplink RJ45
24 Port Full Gigabit PoE Ethernet Switch High Density Desktop PoE Switch 2 Uplink RJ45
24 Port Full Gigabit PoE Ethernet Switch High Density Desktop PoE Switch 2 Uplink RJ45
24 Port Full Gigabit PoE Ethernet Switch High Density Desktop PoE Switch 2 Uplink RJ45
24 Port Full Gigabit PoE Ethernet Switch High Density Desktop PoE Switch 2 Uplink RJ45
24 Port Full Gigabit PoE Ethernet Switch High Density Desktop PoE Switch 2 Uplink RJ45
24 Port Full Gigabit PoE Ethernet Switch High Density Desktop PoE Switch 2 Uplink RJ45
Specifications
Mounting :
Rack-mountable or desktop
Brand Name :
OEM
Port Type :
RJ45 Ethernet Ports
Forwarding Rate :
Up to 35.7 Mpps (varies by model)
Certification :
CE ROSH FCC ISO
Power Supply :
Internal or external power adapter
Model Number :
ATD-P2402GD
Data Transfer Rate :
1000 Mbps
Packaging Details :
1pcs/box
Payment Terms :
T/T
Switching Capacity :
Up to 52 Gbps (varies by model)
Place of Origin :
CHINA
Supply Ability :
20000pcs/Month
Poe Standard :
IEEE 802.3af/at/bt
Delivery Time :
5-7 days
Poe Power Budget :
Up to 380W (varies by model)
Description

24 Full Gigabit PoE Ethernet Switch Cost-effective High-Density Desktop 2 Uplink RJ45 , All-in-One Power & Data Solution for SMB and Surveillance Projects

Product Description

This high-density desktop gigabit PoE switch is engineered to meet the connection demands of medium and large-scale network systems. Combining 24 PoE+ access ports and 2 dedicated gigabit uplink ports, it delivers ample port resources to connect numerous PoE devices and supports easy network cascading for expanded coverage.
Adhering to IEEE 802.3af/at PoE standards, the unit features intelligent device recognition. It transmits gigabit data and supplies stable power simultaneously through one network cable, eliminating scattered power adapters and streamlining cable arrangement greatly. No complex configuration is required thanks to its unmanaged design, enabling fast deployment even for users without professional technical skills.
Crafted with solid metal casing, the switch boasts excellent heat dissipation and structural sturdiness. Adopting fanless passive cooling, it runs silently around the clock without disturbing the working environment. Built-in multi-protection circuitry defends against surge, overcurrent and short circuit, delivering steady performance and long service life for 24/7 continuous operation in offices, shops and monitoring sites.

Key Features

  • High-Density Port Design: 24 PoE+ RJ45 plus 2 uplink ports, all support 10/100/1000Mbps auto-negotiation for high-speed data transfer
  • Standard PoE Function: Compatible with IEEE 802.3af/at, auto detects PoE devices, realizes one-cable power and data delivery
  • Space-Saving Desktop Form: Compact structure fits desks, cabinets and shelves, flexible placement for various indoor scenarios
  • Easy Deployment: Unmanaged plug-and-play design, no software or settings needed, ready to use right after connection
  • Silent & Durable: Fanless cooling system and premium metal shell, noise-free operation plus outstanding heat resistance
  • Reliable Circuit Protection: Built-in surge, over-current and short-circuit protection to prevent device damage
  • Strong Expandability: Dual uplink ports allow connection with routers, NVRs and other switches to scale up networks freely
  • Wide Compatibility: Works perfectly with IP cameras, wireless access points, VoIP phones and other mainstream PoE terminals

Product Specifications

Item Details
Product Type Desktop Unmanaged Gigabit PoE Switch
Port Configuration 24 × Gigabit PoE+ RJ45, 2 × Gigabit Uplink RJ45
Network Standards IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at
Transmission Speed 10/100/1000 Mbps (Auto-negotiation & Auto MDI/MDIX)
Single PoE Port Power Max 30W
Total PoE Power Budget 260W
Switching Capacity 52 Gbps
Packet Forwarding Rate 38.7 Mpps
MAC Address Table 8K Entries
Cooling Mode Fanless (Passive Heat Dissipation)
Housing Material Metal
Power Supply Built-in wide voltage, 100-240V AC
Installation Style Desktop
Operating Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 70°C
