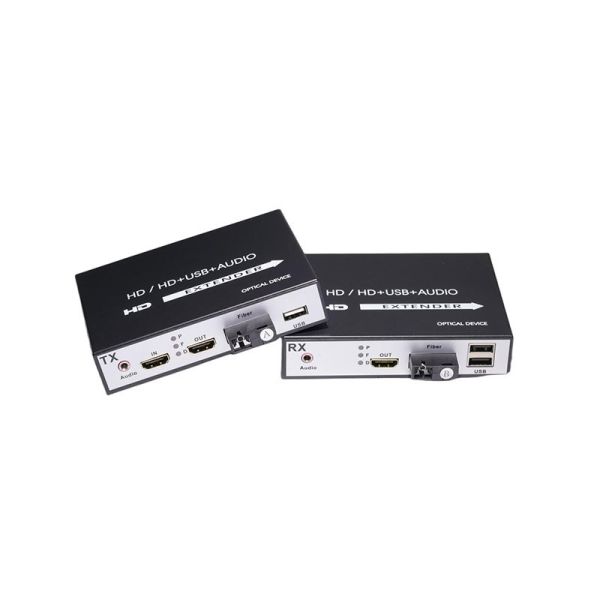

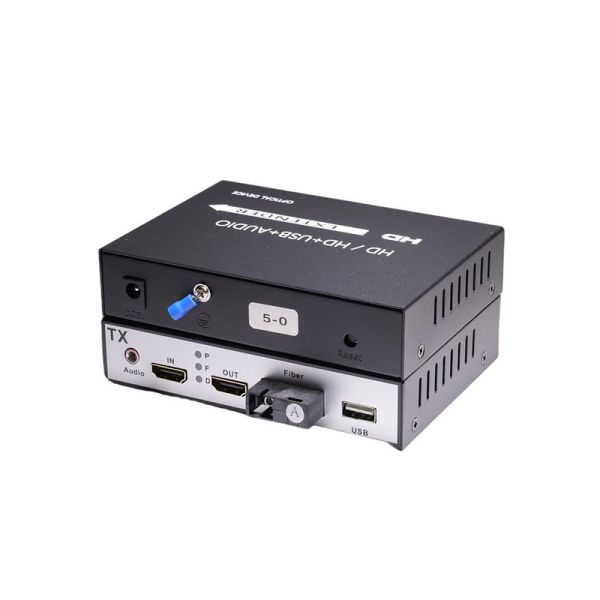

1080P 30Hz HDMI Over Fiber Optic Extender USB KVM HDMI Local Loop Stereo Audio TX RX Kit
1080P 30Hz HDMI Over Fiber Optic Extender USB KVM HDMI Local Loop Stereo Audio TX RX Kit
1080P 30Hz HDMI Over Fiber Optic Extender USB KVM HDMI Local Loop Stereo Audio TX RX Kit
1080P 30Hz HDMI Over Fiber Optic Extender USB KVM HDMI Local Loop Stereo Audio TX RX Kit
1080P 30Hz HDMI Over Fiber Optic Extender USB KVM HDMI Local Loop Stereo Audio TX RX Kit
1080P 30Hz HDMI Over Fiber Optic Extender USB KVM HDMI Local Loop Stereo Audio TX RX Kit
Specifications
Packaging Details :
1Pair/box
Product name :
HDMI Extender Optical Fiber Extender
Supply Ability :
20000pcs/Month
Color :
Black or Customized
Delivery Time :
5-7 days
Fiber type :
SC,SFP Module(LC),Single-mode single fiber,Single Fiber Single Mode
KVM :
Support USB
Place of Origin :
CHINA
Working temperature :
0 ~+70 /-40 ~+85,0℃~+50℃,-30 °C ~ +75 °C
Payment Terms :
T/T
Certification :
CE ROSH FCC ISO
Warranty :
3 years
Power supply :
DC 12V,DC5V 1A,DC 5V/2A
Audio :
Support
Model Number :
ATD-HDMI-U-LA
Transmission distance :
20km,20KM(standard),multi-mode 300m,Single mode 1000m
Brand Name :
OEM
Material :
Metal,Aluminum,iron
HDMI Loop :
Support
Description

HDMI over Fiber Optic Extender 1080P@30Hz, USB KVM, HDMI Local Loop, Stereo Audio TX RX Kit

Product Description

This professional HDMI over Fiber Extender kit realizes long-distance transmission of Full HD video, USB and audio signals. Equipped with transmitter and receiver, it reaches 20km over single-mode fiber and 300m over multi-mode fiber.
The transmitter comes with HDMI local loopout for real-time local monitoring during remote signal extension. Built-in USB 2.0 KVM supports keyboard, mouse and USB storage devices extension. Independent 3.5mm stereo audio ports enable audio embedding and de-embedding for flexible layout.
Compliant with HDMI 1.4 and HDCP standards, it features auto EDID recognition for broad compatibility. The durable aluminum alloy casing offers great heat dissipation and anti-interference capability, well suited for surveillance, video conferences, digital signage and other professional scenarios.

Key Features

  • Full HD 1080P@30Hz video transmission, compatible with HDMI 1.4 & HDCP
  • USB 2.0 KVM function for keyboard, mouse and USB peripheral extension
  • HDMI local loopout port for convenient on-site real-time monitoring
  • 3.5mm stereo audio in/out, supports separate audio transmission
  • Long range: 20km over single-mode fiber, 300m over multi-mode fiber
  • Plug-and-play design, no driver needed; auto EDID management
  • Aluminum alloy shell, excellent heat dissipation and anti-interference
  • Widely used in surveillance, conference rooms, education and commercial AV systems

Specification

Parameter Details
Product Type HDMI Fiber Extender (TX + RX Kit)
Video Standard HDMI 1.4, HDCP Compliant
Max Resolution 1080P@30Hz (1920×1080)
USB Interface USB 2.0
Audio Interface 3.5mm Stereo Audio In (TX) / Out (RX)
Local Loopout HDMI Female Port (Transmitter)
Fiber Port SC/LC Simplex
Supported Fiber Single-mode / Multi-mode Fiber
Transmission Distance 20km (Single-mode), 300m (Multi-mode)
EDID Function Auto Learning & Pass-through
Power Supply DC 5V/2A
Operating Temperature -10℃ ~ +55℃
Housing Material Matel
