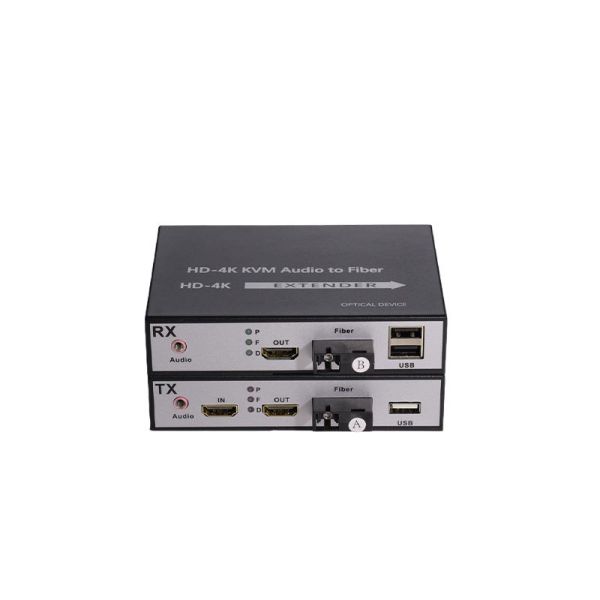

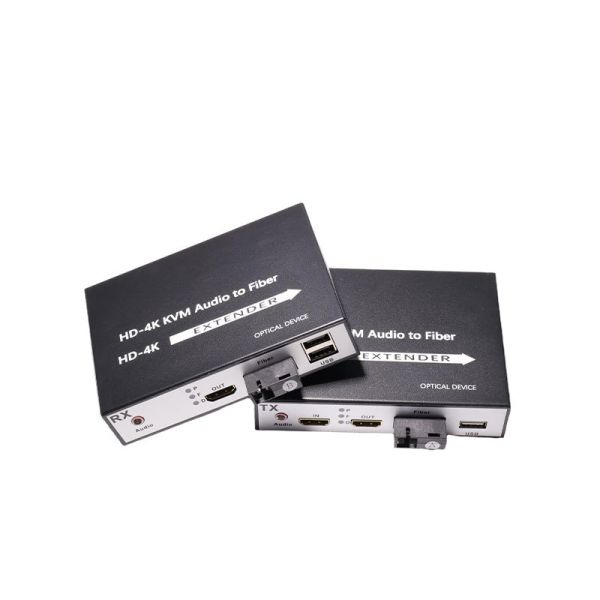

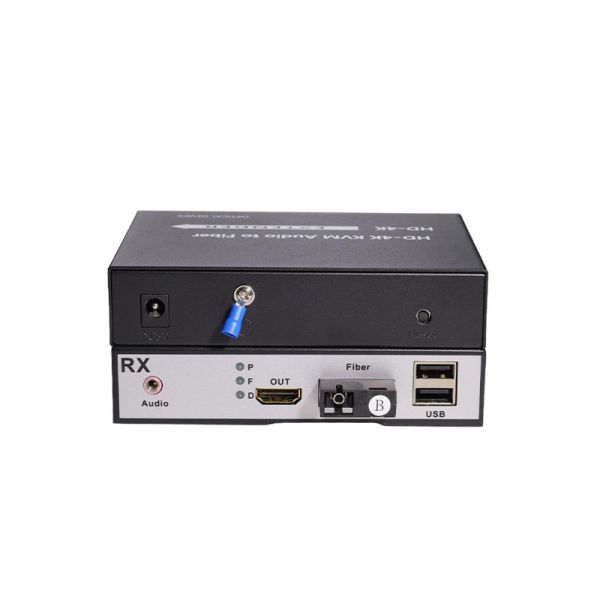

4K HDMI Fiber Extender KVM With USB Local Loopout 3.5mm Audio Single Fiber Up To 20Km
4K HDMI Fiber Extender KVM With USB Local Loopout 3.5mm Audio Single Fiber Up To 20Km
4K HDMI Fiber Extender KVM With USB Local Loopout 3.5mm Audio Single Fiber Up To 20Km
4K HDMI Fiber Extender KVM With USB Local Loopout 3.5mm Audio Single Fiber Up To 20Km
4K HDMI Fiber Extender KVM With USB Local Loopout 3.5mm Audio Single Fiber Up To 20Km
4K HDMI Fiber Extender KVM With USB Local Loopout 3.5mm Audio Single Fiber Up To 20Km
4K HDMI Fiber Extender KVM With USB Local Loopout 3.5mm Audio Single Fiber Up To 20Km
4K HDMI Fiber Extender KVM With USB Local Loopout 3.5mm Audio Single Fiber Up To 20Km
Specifications
Material :
Metal,Aluminum,iron
Power supply :
DC 12V,DC5V 1A,DC 5V/2A
Supply Ability :
20000Pair/Month
Working temperature :
0 ~+70 /-40 ~+85,0℃~+50℃,-30 °C ~ +75 °C
Delivery Time :
5-7 days
Place of Origin :
CHINA
Fiber type :
SC,SFP Module(LC),Single-mode single fiber,Single Fiber Single Mode
Model Number :
ATD-4KHDMI-U-LA
Product name :
4k HDMI kvm extender
Packaging Details :
1Pair/box
Color :
Black,Black or Customized
Warranty :
3 years
Certification :
CE ROSH FCC ISO
Payment Terms :
T/T
Resolution :
1080p,4Kx2K@30Hz ( For 40M UTP cable) 1920*1080@60Hz ( For 70M UTP cable),1920*1200@60Hz
Brand Name :
OEM
Transmission distance :
20km,20KM(standard),multi-mode 300m,Single mode 1000m
Description

4K HDMI Fiber Extender KVM with USB, Local Loopout & 3.5mm Audio, Single Fiber Up to 20Km

Product Description

This professional 4K HDMI over Fiber Extender kit consists of a transmitter and a receiver, supporting long-distance signal transmission. It reaches up to 20km over single-mode fiber and 300m over multi-mode fiber, delivering stable UHD video, USB and audio signals.
The built-in HDMI local loopout on the transmitter enables real-time local monitoring during remote signal extension. The USB 2.0 KVM function works perfectly for extending keyboards, mice and USB storage devices. Independent 3.5mm stereo audio ports support audio embedding and de-embedding to meet diverse audio layout demands.
Compliant with HDMI 2.0 and HDCP 2.2 standards, it features wide compatibility with mainstream devices. Adopting premium aluminum alloy housing, the device offers outstanding heat dissipation and anti-interference ability. It is an ideal choice for video conferencing, surveillance, digital signage and other professional AV scenarios.

Key Features

  • UHD 4K@30Hz video transmission (3840×2160), compatible with HDMI 2.0 & HDCP 2.2
  • USB 2.0 KVM function for extension of keyboard, mouse and USB peripherals
  • HDMI local loopout port on transmitter for convenient on-site real-time monitoring
  • 3.5mm stereo audio input & output, supports independent audio transmission
  • Long transmission range: 20km for single-mode fiber, 300m for multi-mode fiber
  • Plug-and-play operation, no extra drivers required
  • Durable aluminum alloy shell, great heat dissipation and anti-interference performance
  • Suitable for surveillance, conference rooms, education and commercial AV systems

Specification Table

Parameter Details
Product Type 4K HDMI Fiber Extender (TX + RX Kit)
Video Standard HDMI 2.0, HDCP 2.2 Compliant
Max Resolution 4K@30Hz (3840×2160), backward compatible with 1080P/720P
USB Interface USB 2.0
Audio Interface 3.5mm Stereo Audio In (TX) / Out (RX)
Local Loopout HDMI Female Port (Transmitter)
Fiber Port SC/LC Simplex
Supported Fiber Single-mode Fiber / Multi-mode Fiber
Transmission Distance 20km (Single-mode), 300m (Multi-mode)
EDID Function Not supported
Power Supply DC 5V/2A (TX & RX)
Operating Temperature -10℃ ~ +55℃
Housing Material Metal
