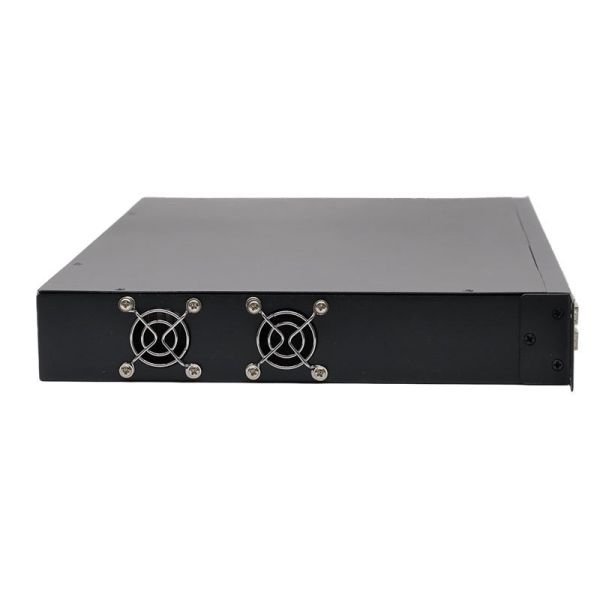

1U Rackmount Gigabit Fiber Switch 16 SFP Slots 8 RJ45 Ethernet Ports Optical Switch
1U Rackmount Gigabit Fiber Switch 16 SFP Slots 8 RJ45 Ethernet Ports Optical Switch
1U Rackmount Gigabit Fiber Switch 16 SFP Slots 8 RJ45 Ethernet Ports Optical Switch
1U Rackmount Gigabit Fiber Switch 16 SFP Slots 8 RJ45 Ethernet Ports Optical Switch
1U Rackmount Gigabit Fiber Switch 16 SFP Slots 8 RJ45 Ethernet Ports Optical Switch
1U Rackmount Gigabit Fiber Switch 16 SFP Slots 8 RJ45 Ethernet Ports Optical Switch
1U Rackmount Gigabit Fiber Switch 16 SFP Slots 8 RJ45 Ethernet Ports Optical Switch
1U Rackmount Gigabit Fiber Switch 16 SFP Slots 8 RJ45 Ethernet Ports Optical Switch
Specifications
Humidity :
5 To 95%
Backplane Capacity :
12.8G
Place of Origin :
CHINA
Model Number :
ATD-MC16F8G-SFP
Power Input :
AC100-240V
Ipc Extender :
IPC to switch can be 250m
Delivery Time :
5-7 days
Gigabit Sfp Ports :
16
Packaging Details :
1pcs/box
Certification :
CE ROSH FCC ISO
Brand Name :
OEM
Payment Terms :
T/T
Supply Ability :
20000pcs/Month
Fiber Port :
Single Mode Single Fiber
Storage Temperature :
-30℃-75℃
Operating Temperature :
-10°C to 70°C
Mac Table Size :
8K
Description

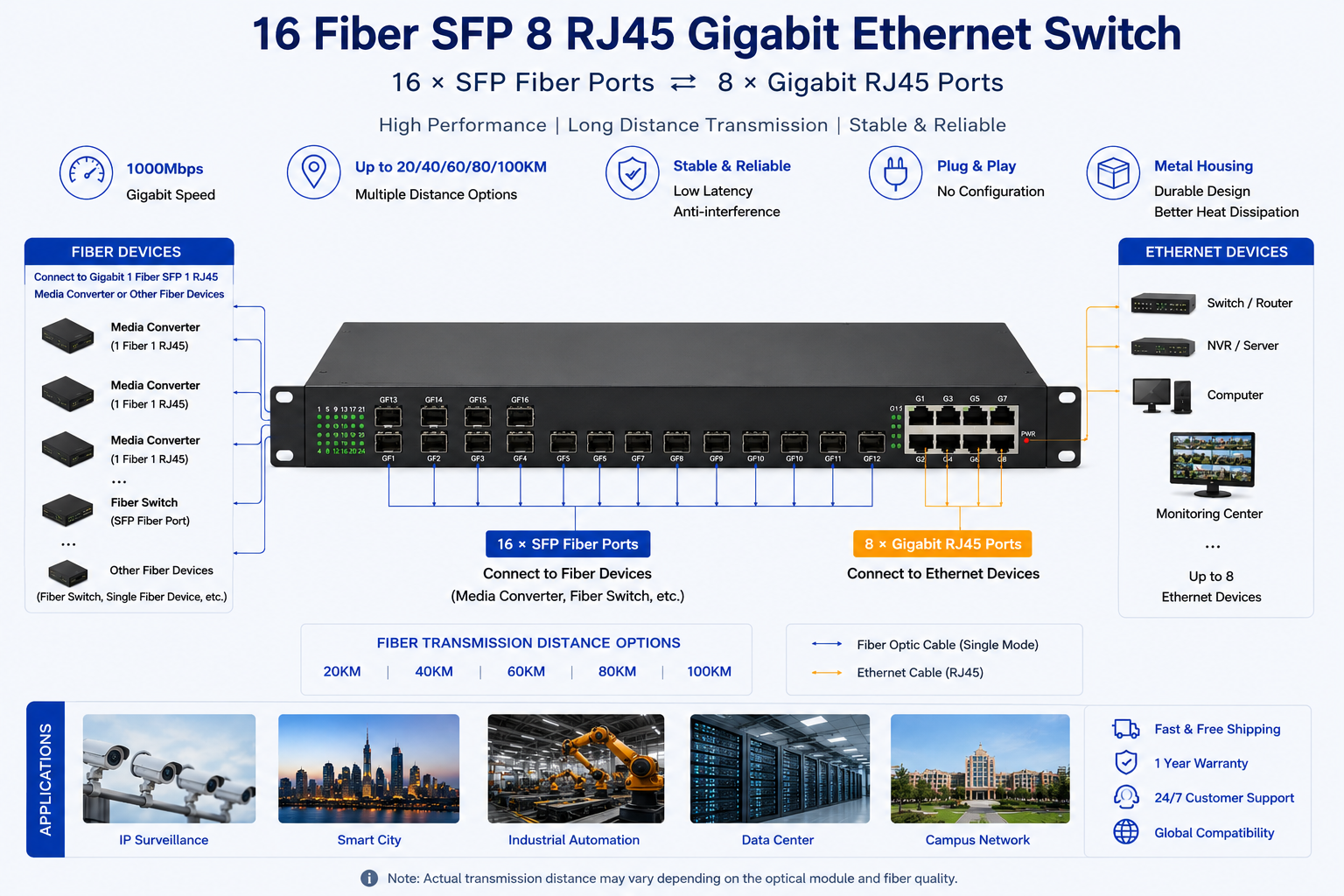

Gigabit Fiber Switch 16 SFP Slots 8 RJ45 Ethernet Ports 1U Rackmount Optical Switch, Plug&Play for IP Surveillance, FTTH, Office Hybrid Fiber-Copper LAN Deployment

Product Description

Our 16SFP+8RJ45 rackmount gigabit fiber switch is customized for hybrid fiber and copper mixed networking demands, breaking the 100m transmission limit of ordinary copper switches via flexible SFP module configuration. Standard 1U metal rack design fits all industry-standard server cabinets perfectly; unmanaged plug-and-play design eliminates complicated software setup, greatly shortening on-site construction cycle for system integrators and engineering contractors.

Equipped with 8 high-performance gigabit copper ports for direct connection to NVR, PC, switches and terminal equipment, while 16 SFP optical slots support single/multi-mode SFP transceivers for kilometer-level long-distance fiber layout. Widely deployed in large-scale IP camera monitoring project, FTTH community broadband access, factory workshop networking, shopping mall weak current construction and campus fiber transformation.

Strictly complies with global IEEE Ethernet specifications, all-metal shell enhances anti-EMI interference capability, each RJ45 port is built with lightning surge protection. Fanless passive heat dissipation enables 7×24-hour non-stop stable operation in unattended equipment room and poor power supply environment, reducing later maintenance costs effectively.
Product Features

16 Independent Gigabit SFP +8 Full Gigabit RJ45 Combo Layout: Abundant port resources for large hybrid fiber-copper networking, freely match LC/SC single/multimode SFP modules

Standard 19-inch 1U Cold-rolled Steel Chassis: Convenient centralized rack installation, neat wiring and unified cabinet management

True Plug & Play Unmanaged Operation: Auto MDI/MDIX & 10/100/1000Mbps speed auto-negotiation, zero configuration needed for quick deployment

48Gbps Non-blocking Switch Fabric: Wire-speed data forwarding without packet loss, supports up to 9K jumbo frame for large video stream transmission

Port Surge & Lightning Protection: RJ45 built-in ESD/lightning safeguard, stable running under unstable grid and outdoor wiring environment

Fanless Silent Passive Cooling: Zero fan failure risk, low noise, reliable long-term continuous operation for surveillance machine room

Full IEEE Standard Compatibility: IEEE802.3/802.3ab/802.3x, full-duplex flow control prevents network congestion and data overflow

Broad SFP Compatibility: Compatible with all mainstream brand gigabit SFP transceivers, single-fiber/double-fiber optional for flexible distance expansion

Specification
Item Specific Parameter
Port Configuration 16×1000BASE-X SFP Slots, 8×10/100/1000BASE-T RJ45 Copper Ports
Total Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K Auto-learning
Supported Frame Standard Ethernet Frame + Max 9000Bytes Jumbo Frame
Flow Control IEEE802.3x Full-duplex Flow Control, Half-duplex Backpressure
Mounting Way Standard 19”1U Rack Mount, Desktop Placement Optional
Casing Material All Cold-rolled Steel, Fanless No-fan Design
Working Temperature 0℃ ~ +45℃(Commercial Grade; Wide temp -40~75℃ customizable)
Power Input Built-in AC 100-240V Internal Power Supply
Overall Dimension 440mm(L)*185mm(D)*44mm(H)
Certification CE, FCC, RoHS, UKCA
