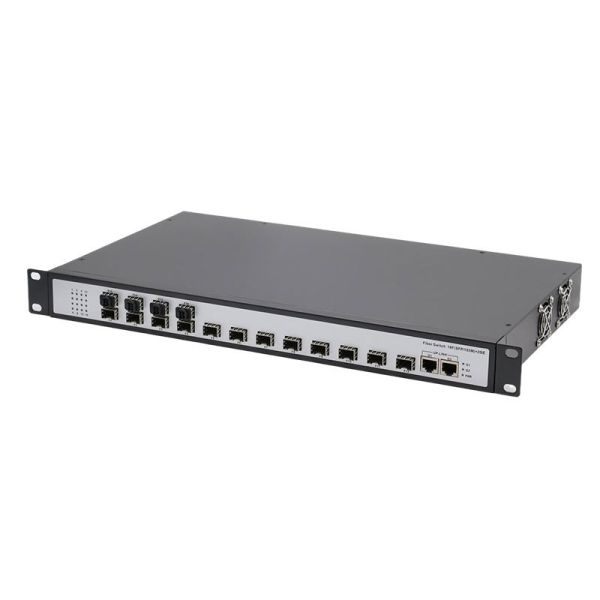

16 Port 100Mbps SFP Fiber Switch With 2 Gigabit RJ45 Uplink Ports 1U 19 Inch Rack
16 Port 100Mbps SFP Fiber Switch With 2 Gigabit RJ45 Uplink Ports 1U 19 Inch Rack
16 Port 100Mbps SFP Fiber Switch With 2 Gigabit RJ45 Uplink Ports 1U 19 Inch Rack
16 Port 100Mbps SFP Fiber Switch With 2 Gigabit RJ45 Uplink Ports 1U 19 Inch Rack
16 Port 100Mbps SFP Fiber Switch With 2 Gigabit RJ45 Uplink Ports 1U 19 Inch Rack
16 Port 100Mbps SFP Fiber Switch With 2 Gigabit RJ45 Uplink Ports 1U 19 Inch Rack
16 Port 100Mbps SFP Fiber Switch With 2 Gigabit RJ45 Uplink Ports 1U 19 Inch Rack
16 Port 100Mbps SFP Fiber Switch With 2 Gigabit RJ45 Uplink Ports 1U 19 Inch Rack
Specifications
Jumbo Frame :
10K
Mac Table Size :
8K
Delivery Time :
5-7 days
Packaging Details :
1pcs/box
Optical Ports :
16 gigabit SFP ports
Storage Temperature :
-40℃-85℃
Back Bandwidth :
20G
Data transferrate :
1 Gbps
Certification :
CE ROSH FCC ISO
Supply Ability :
20000pcs/Month
Voltage Range :
AC 100～240V
Brand Name :
OEM
Model Number :
ATD-MC16F2EG-SFP
Optical Wavelength :
1310/1550nm
Payment Terms :
T/T
Place of Origin :
CHINA
Rated Voltage Range :
AC 100～240V ；50/60Hz
Ethernet Port :
2*10/100/1000 Mbps RJ45
Description

16 Port 100Mbps SFP Fiber Switch with 2 Gigabit RJ45 Uplink Ports 1U 19 Inch Rack

Product Description

Tailored for medium-capacity fiber access scenarios, this 16 SFP port rack switch abandons fixed fiber port design and adopts flexible SFP modular structure, allowing integrators to collocate single-fiber or dual-fiber SFP transceivers per on-site construction requirements. Two integrated gigabit copper uplink ports efficiently converge multi-path fiber data, widely deployed for villa zone FTTH, factory workshop monitoring and branch office LAN upgrading.
Full metal thick steel casing with fanless passive heat dissipation design, avoiding fan breakdown and regular maintenance costs. Every electrical port is equipped with anti-lightning surge circuit to resist voltage spike interference, stable running in equipment room, outdoor weak current cabinet and other complicated working surroundings. Auto MDI/MDIX eliminates cross-line setup troubles during field wiring.
Fully compatible with mainstream industry-standard 100Mbps SFP optical modules, transmission coverage ranges from 2km short haul multimode to 120km long-distance single mode. Compliant with global Ethernet specifications and CE/FCC/RoHS certification, low-power master chip ensures round-the-clock steady operation for bulk engineering procurement.
Products Features
.Flexible Modular Layout:16 Hot-swappable 100Base-FX SFP Slots, freely match various specification SFP transceivers
.Dual Gigabit Uplink:2×10/100/1000Mbps auto-adaptive RJ45 for high-speed data aggregation
.Standard 1U 19-inch rack size, easy fixation inside standard network cabinet
.Unmanaged Plug&Play, no firmware setup needed, fast on-site installation
.Fanless all-metal chassis, passive cooling, low power loss and long service life
.4KV built-in surge protection per port, strong anti-interference for harsh installation environments
.Auto duplex & MDI-X identification, compatible with Cat5e/Cat6 common ethernet cables
.Full compliance with IEEE802.3 /802.3u /802.3ab /802.3x industry Ethernet standards

Technical Specifications

Specification Item Technical Parameter
Port Configuration 16×100Base-FX SFP Slot;2×10/100/1000Base-T Gigabit RJ45
Network Standard IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3x Flow Control
Backplane Bandwidth 3.6Gbps
Packet Forwarding Rate 2.68Mpps
SFP Matching Universal 100M industry SFP,SM/MM single/dual fiber optional
Copper Cable Cat5e/Cat6,Max 100m transmission distance
Mount Dimension 1U Height,19 inch standard rackmount
Shell Material Cold rolled steel,black anti-corrosion matte coating
Input Voltage Default DC12V;Custom wide voltage DC9~57V for industrial model
Operating Temp 0℃~60℃;Industrial customization:-40℃~75℃
Storage Temperature -40℃~+85℃
Overall Size 442×185×44mm(L×D×H)
Certifications CE,FCC,RoHS Approved
Max Power Consumption ≤10W
