Gigabit Fiber Media Converter 1 Fiber SC To 4 RJ45 Ethernet Ports Network Extender
Gigabit Fiber Media Converter 1 Fiber SC To 4 RJ45 Ethernet Ports Network Extender
Gigabit Fiber Media Converter 1 Fiber SC To 4 RJ45 Ethernet Ports Network Extender
Gigabit Fiber Media Converter 1 Fiber SC To 4 RJ45 Ethernet Ports Network Extender
Gigabit Fiber Media Converter 1 Fiber SC To 4 RJ45 Ethernet Ports Network Extender
Gigabit Fiber Media Converter 1 Fiber SC To 4 RJ45 Ethernet Ports Network Extender
Gigabit Fiber Media Converter 1 Fiber SC To 4 RJ45 Ethernet Ports Network Extender
Gigabit Fiber Media Converter 1 Fiber SC To 4 RJ45 Ethernet Ports Network Extender
Gigabit Fiber Media Converter 1 Fiber SC To 4 RJ45 Ethernet Ports Network Extender
Gigabit Fiber Media Converter 1 Fiber SC To 4 RJ45 Ethernet Ports Network Extender
Specifications
Supply Ability :
50000PCS/Month
Place of Origin :
CHINA
Fiber Port :
SC
Oem :
Support
Flow Control :
Full duplex/half duplex
Distrance :
0-20KM
Certification :
CE ROSH FCC ISO
Power Supply :
DC 5V/12V
Fiber Type :
Single-mode or Multi-mode
Delivery Time :
5-7 days
Brand Name :
OEM
Packaging Details :
1pcs/box
Protocol Support :
IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Humidity :
Operating: 10~90%
Ethernet Port :
CAT-5e (or better) (10/100/1000Mbps)
Payment Terms :
T/T
Rate :
10/100/1000Mbps
Model Number :
ATD-MC1F4G
Operating Temperature :
-10°C to 70°C
Description

Gigabit Fiber Media Converter 1 Fiber SC to 4 RJ45 Ethernet Ports Network Extender

Product Overview

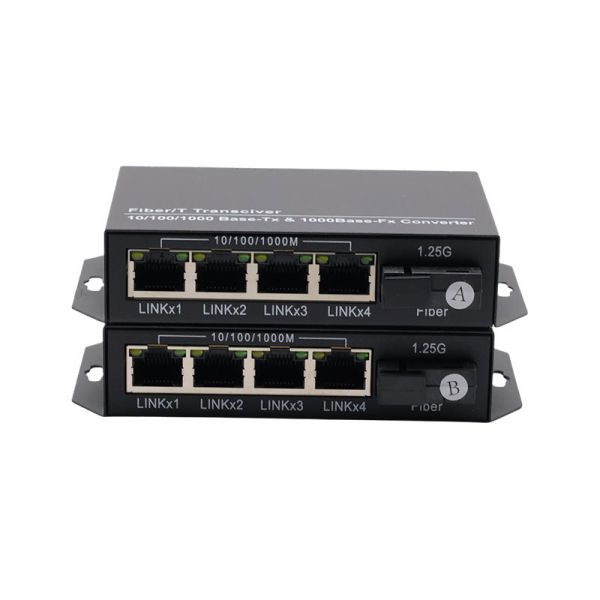

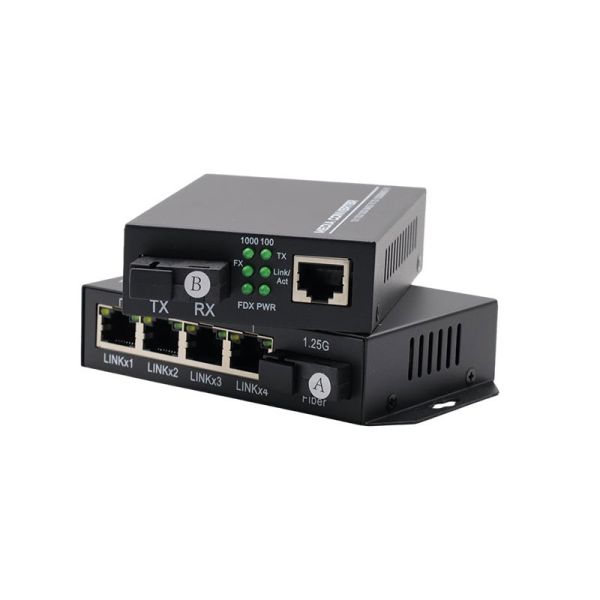

This Gigabit fiber media converter features 1 SC fiber port and 4 RJ45 Ethernet ports, enabling high-speed 10/100/1000Mbps network extension. Ideal for surveillance, enterprise networking, and industrial applications requiring stable long-distance data transmission.

Product Description

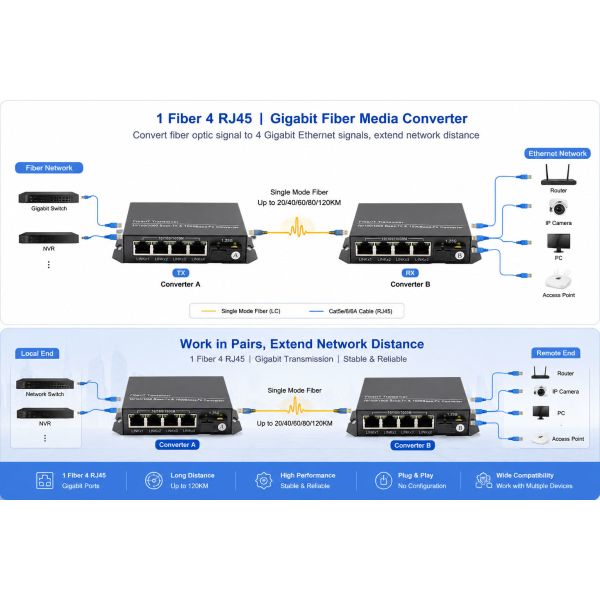

The Gigabit Fiber Media Converter 1 Fiber to 4 Ethernet Ports is designed to extend Ethernet networks over optical fiber, delivering stable and high-speed data transmission up to 1000Mbps. It converts optical signals from a single SC fiber port into four RJ45 copper Ethernet ports, allowing multiple devices to connect simultaneously.

With plug-and-play installation, no configuration is required, making deployment fast and easy. It is widely used in IP surveillance systems, enterprise networks, industrial automation, and FTTH applications. The robust metal housing ensures durability and reliable operation in demanding environments.

Key Features

  • 1 Fiber to 4 Ethernet Ports: Expand a single fiber link into four Ethernet connections
  • Gigabit High-Speed Performance: Supports 10/100/1000Mbps auto-negotiation
  • Long-Distance Transmission: Extends network up to 20km (depending on SFP module)
  • Plug & Play Design: No software or configuration required
  • Stable & Reliable: Non-blocking wire-speed forwarding
  • Industrial Grade Housing: Durable metal casing for harsh environments
  • Wide Compatibility: Works with switches, IP cameras, routers, and NVR systems
  • LED Status Indicators: Easy monitoring of power and link activity

Technical Specifications

Parameter Specification
Fiber Port 1 × SC Fiber Port (Single-mode/Multimode optional)
Ethernet Ports 4 × RJ45 10/100/1000Mbps
Data Rate 10/100/1000Mbps Auto-negotiation
Transmission Distance Up to 20km (depends on fiber module)
Standard IEEE 802.3 / 802.3u / 802.3ab / 802.3z
Power Supply DC 5V–12V External Adapter
Power Consumption ≤ 5W
Operating Temperature -10°C to 60°C
Storage Temperature -40°C to 85°C
Humidity 5%–95% non-condensing
LED Indicators Power, FX Link/Act, TP Link/Act
Material Metal Housing
Installation Desktop / Wall-mount
Dimensions Approx. 94 × 70 × 26 mm

Gigabit Fiber Media Converter 1 Fiber SC To 4 RJ45 Ethernet Ports Network Extender
