1000Mbps Fiber Media Converter Gigabit 1 SFP Fiber To 2 RJ45 Ethernet Ports
1000Mbps Fiber Media Converter Gigabit 1 SFP Fiber To 2 RJ45 Ethernet Ports
1000Mbps Fiber Media Converter Gigabit 1 SFP Fiber To 2 RJ45 Ethernet Ports
1000Mbps Fiber Media Converter Gigabit 1 SFP Fiber To 2 RJ45 Ethernet Ports
1000Mbps Fiber Media Converter Gigabit 1 SFP Fiber To 2 RJ45 Ethernet Ports
1000Mbps Fiber Media Converter Gigabit 1 SFP Fiber To 2 RJ45 Ethernet Ports
1000Mbps Fiber Media Converter Gigabit 1 SFP Fiber To 2 RJ45 Ethernet Ports
1000Mbps Fiber Media Converter Gigabit 1 SFP Fiber To 2 RJ45 Ethernet Ports
Specifications
Buffer Space :
128Kb RAM
Model Number :
ATD-MC1F2G-SFP
Fiber Port :
SFP
Sfp Module :
Dual Fiber/ Single Fiber
Wavelength :
850 nm / 1310 nm / 1550 nm
Fiber Type :
Single-mode or Multi-mode
Place of Origin :
CHINA
Certification :
CE ROSH FCC ISO
Supply Ability :
50000Pcs/Month
Standards Compliance :
IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Payment Terms :
T/T
Interface Type :
RJ45 and Fiber Optic
Packaging Details :
1pcs/box
Operating Temperature :
-10°C to 70°C
Brand Name :
OEM
Delivery Time :
5-7 days
Mtbf :
Over 100,000 hours
Description

1000Mbps Fiber Media Converter Gigabit 1 SFP Fiber to 2 RJ45 Ethernet Ports

Product Overview

Effortlessly expand your network with this Gigabit fiber media converter featuring 1 SFP fiber slot and 2 RJ45 Ethernet ports. Supports 10/100/1000Mbps high-speed data transfer, ideal for industrial networks, IP cameras, and office applications.

Product Description

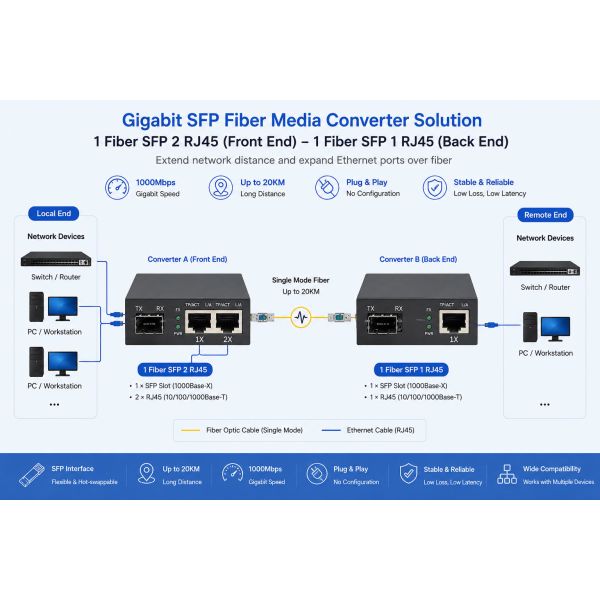

The Gigabit Fiber Media Converter 1 SFP to 2 Ethernet Ports converts optical signals from an SFP module into two standard RJ45 Ethernet ports, delivering stable high-speed data up to 1000Mbps. It allows multiple devices to connect over a single fiber link, extending network reach and improving flexibility.

Plug-and-play design ensures easy installation without software or configuration. Compatible with switches, routers, NVRs, and IP cameras, it is perfect for surveillance systems, enterprise networks, and industrial automation. Durable metal housing protects against environmental stress, while LED indicators provide real-time monitoring of power and link activity.

Key Features

  • 1 SFP Fiber to 2 Ethernet Ports: Expand a single fiber link to multiple devices
  • Gigabit High-Speed: Supports 10/100/1000Mbps auto-negotiation
  • Long-Distance Transmission: Extends network up to 20km (depending on SFP module)
  • Plug & Play: Quick setup with no configuration required
  • Stable & Reliable: Non-blocking wire-speed forwarding
  • Industrial-Grade Housing: Durable metal casing suitable for harsh environments
  • LED Status Indicators: Monitor power and link/activity in real-time
  • Wide Compatibility: Works with switches, routers, NVRs, and IP cameras

Technical Specifications

Parameter Specification
Fiber Port 1 × SFP Slot (Single-mode/Multimode compatible)
Ethernet Ports 2 × RJ45 10/100/1000Mbps
Data Rate 10/100/1000Mbps Auto-negotiation
Transmission Distance Up to 20km (depends on SFP module)
Standard IEEE 802.3 / 802.3u / 802.3ab / 802.3z
Power Supply DC 5V–12V External Adapter
Power Consumption ≤ 5W
Operating Temperature -10°C to 60°C
Storage Temperature -40°C to 85°C
Humidity 5%–95% non-condensing
LED Indicators Power, FX Link/Act, TP Link/Act
Material Metal Housing
Installation Desktop / Wall-mount
Dimensions Approx. 94 × 60 × 25 mm

1000Mbps Fiber Media Converter Gigabit 1 SFP Fiber To 2 RJ45 Ethernet Ports

Send your message to this supplier
Send Now

1000Mbps Fiber Media Converter Gigabit 1 SFP Fiber To 2 RJ45 Ethernet Ports

Ask Latest Price
Product Detail
Buffer Space :
128Kb RAM
Model Number :
ATD-MC1F2G-SFP
Fiber Port :
SFP
Sfp Module :
Dual Fiber/ Single Fiber
Wavelength :
850 nm / 1310 nm / 1550 nm
Fiber Type :
Single-mode or Multi-mode
