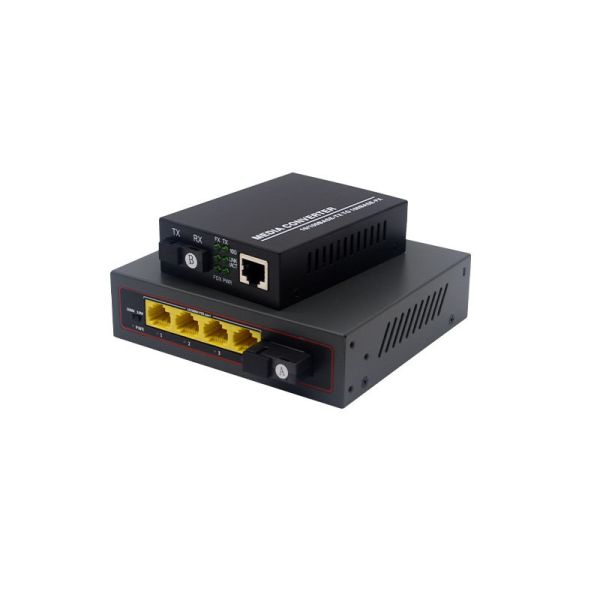

Unmanaged POE Fiber Media Converter 1 SC 100M 4 Port AF POE Ethernet Transceiver
Unmanaged POE Fiber Media Converter 1 SC 100M 4 Port AF POE Ethernet Transceiver
Unmanaged POE Fiber Media Converter 1 SC 100M 4 Port AF POE Ethernet Transceiver
Unmanaged POE Fiber Media Converter 1 SC 100M 4 Port AF POE Ethernet Transceiver
Unmanaged POE Fiber Media Converter 1 SC 100M 4 Port AF POE Ethernet Transceiver
Unmanaged POE Fiber Media Converter 1 SC 100M 4 Port AF POE Ethernet Transceiver
Unmanaged POE Fiber Media Converter 1 SC 100M 4 Port AF POE Ethernet Transceiver
Unmanaged POE Fiber Media Converter 1 SC 100M 4 Port AF POE Ethernet Transceiver
Specifications
Packaging Details :
1pcs/box
Fiber Interface :
LC / SC
Supply Ability :
50000PCS/Month
Product name :
POE Fiber Media Converter
Mtbf :
Over 100,000 hours
Power supply :
External DC 48V or 12V adapter
Operatingtemperature :
-10°C to 70°C
Wavelength :
850nm, 1310nm, or 1550nm
Model Number :
ATD-MCP1F4E
Delivery Time :
5-7 days
Certification :
CE ROSH FCC ISO
Led Indicators :
Power, Link/Activity, PoE status
Brand Name :
OEM
Place of Origin :
CHINA
Humidity :
10% to 90% non-condensing
Payment Terms :
T/T
Fiber Port :
1*SC
Data Transfer Rate :
10/100/1000 Mbps
Power :
External Power Supply
Function :
Converts Ethernet signals between copper and fiber optic cables with Power over Ethernet (PoE) support
Description

POE Fiber Media Converter 1 SC 100M 4 Port AF POE Ethernet Transceiver

Product Description

This all-in-one PoE fiber transceiver combines optical signal conversion and PoE power supply to simplify on-site wiring. Its SC fiber interface extends transmission distance far beyond copper cable limits, while four independent Af-compliant PoE ports directly power IP cameras without extra local power adapters, greatly cutting construction materials and labor costs for security projects.
Constructed with sturdy metal casing for efficient heat dissipation, each PoE port is equipped with independent overload, short-circuit and surge protection to stabilize round-the-clock running. Auto MDI/MDIX function removes cable crossover trouble, friendly for inexperienced installers.
Fully compliant with IEEE international standards, compatible with mainstream PoE IP cameras and wireless AP. CE, FCC, RoHS approved and optional wide input voltage available to fit indoor cabinets and outdoor waterproof enclosure installation.

Product Features

Integrated 1×100M SC fiber + 4×IEEE802.3af PoE RJ45, data & power in one cable

SC interface supports multimode 2km / single-mode 20~60km optional fiber transmission

Unmanaged plug-and-play design, zero software setup needed

Per-port independent PoE protection against short, overload and overvoltage damage

Auto MDI-X & duplex auto-adapt, works well with Cat5e / Cat6 network wire

Solid metal housing with superior heat dissipation for 24/7 continuous working

Standard 15.4W Af PoE output for PoE camera & PoE wireless AP access

Custom wide voltage DC9~57V available for diverse power supply scene

Technical Specifications

Items Specification Details
Port Setup 1×100Base-FX SC;4×10/100M IEEE802.3af PoE RJ45
Compliance IEEE802.3,802.3u,802.3af
Single PoE Output Max 15.4W per port
Fiber Type SC, MM:2km / SM:20/40/60km optional
Copper Cable Cat5e/Cat6, ≤100m
Shell Full metal casing
Input Power Default DC52V, optional DC9~57V
Working Temp 0℃~+55℃
Storage Temp -40℃~+70℃
Dimension 95×70×26mm
Cert CE,FCC,RoHS
Total PoE Power ≤65W
