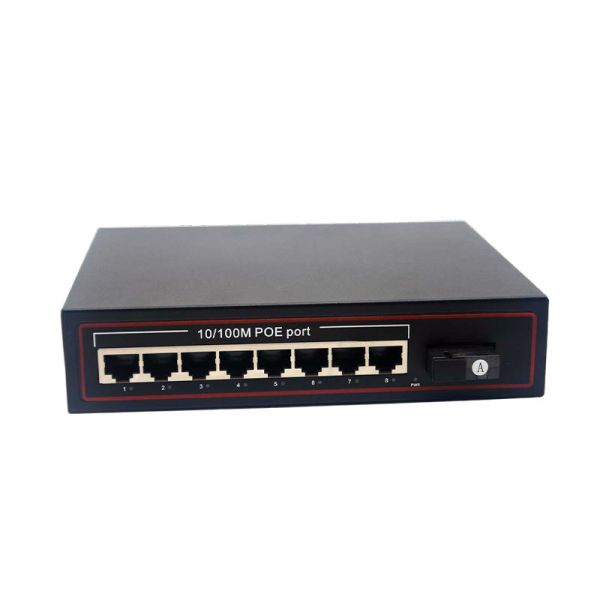

All In One PoE Fiber Media Converter 100Base-FX SC To 8CH PoE Fiber Transceiver
All In One PoE Fiber Media Converter 100Base-FX SC To 8CH PoE Fiber Transceiver
All In One PoE Fiber Media Converter 100Base-FX SC To 8CH PoE Fiber Transceiver
All In One PoE Fiber Media Converter 100Base-FX SC To 8CH PoE Fiber Transceiver
All In One PoE Fiber Media Converter 100Base-FX SC To 8CH PoE Fiber Transceiver
All In One PoE Fiber Media Converter 100Base-FX SC To 8CH PoE Fiber Transceiver
All In One PoE Fiber Media Converter 100Base-FX SC To 8CH PoE Fiber Transceiver
All In One PoE Fiber Media Converter 100Base-FX SC To 8CH PoE Fiber Transceiver
Specifications
Payment Terms :
T/T
Warranty :
3 years
Brand Name :
OEM
Model Number :
ATD-MCP1F8E
Fiber Type :
Single-mode or Multi-mode (depending on model)
Poe Port :
8port
Application :
Extends network distance and powers remote devices such as IP cameras, wireless access points, and VoIP phones
Delivery Time :
5-7 days
Packaging Details :
1pcs/box
Data Transfer Rate :
10/100/1000 Mbps
Supply Ability :
50000PCS/Month
Operating temperature :
-10°C to 70°C
Led Indicators :
Power, Link/Act, PoE status
Certification :
CE ROSH FCC ISO
Transmission Distance :
Up to 20 km (varies by fiber type)
Connector :
RJ45 Port, SC Fiber
Place of Origin :
CHINA
Description

PoE Fiber Media Converter All-in-One 100Base-FX SC to 8CH PoE Fiber Transceiver

Product Description

Designed for centralized multi-camera monitoring projects, this 8-POE fiber transceiver realizes long-distance signal extension via SC fiber, breaking the 100m copper transmission restriction. Eight PoE ports can directly power eight surveillance cameras simultaneously, eliminating separate onsite power adapters and drastically cutting wiring material and construction expense for integrators.

Adopt thickened metal casing with optimized inner air duct cooling structure to support continuous 24/7 load operation. Each PoE channel uses exclusive power control chip equipped with surge, overload and short-circuit auto cut-off protection; built-in MDI/MDIX auto identification simplifies field cable arrangement work.

Conforms to full IEEE Ethernet and PoE industrial standards, compatible with mainstream PoE IP cameras and PoE wireless AP. Pass CE, FCC, RoHS certification, customizable DC9~57V wide input voltage fits indoor cabinet and outdoor waterproof box installation for diversified engineering environments.
Product Features

. Integrated layout:1×100M SC fiber + 8×IEEE802.3af 15.4W PoE RJ45, data & power transmitted on one network cable

. SC fiber supports multimode 2km, single-mode 20/40/60km optional transmission distances

. Unmanaged plug & play design, no software configuration required for rapid commissioning

. Individual protection per PoE port against overvoltage, short-circuit and lightning surge damage

. Auto duplex & MDI-X adaptive, compatible with standard Cat5e/Cat6 ethernet cable

. Durable metal housing with excellent heat dissipation to sustain round-the-clock surveillance workload

. Default DC52V input, optional DC9~57V wide voltage for industrial customized projects

. Centralized PoE output, perfect for cluster installation of multiple PoE monitoring devices

Technical Specifications

Item Spec Details
Port Configuration 1×100Base-FX SC Fiber; 8×10/100M IEEE802.3af PoE RJ45
Compliance Standard IEEE802.3, IEEE802.3u, IEEE802.3af
Single Port PoE Output Max 15.4W per port
Fiber Spec MM:2km, SM:20/40/60km optional
Copper Cable Cat5e/Cat6, Max 100m
Shell Full Metal Casing
Input Voltage Standard DC52V; Optional DC9~57V Wide Voltage
Operating Temp 0℃ ~ +55℃
Storage Temp -40℃ ~ +70℃
Dimension 125×82×30mm
Certification CE, FCC, RoHS
Total Max PoE Power ≤120W
