Real Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual Band
Real Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual Band
Real Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual Band
Real Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual Band
Specifications
Payment Terms :
T/T,Western Union,Paypal,Bank transfering
Brand Name :
ATNJ
Model Number :
JS-DB1800/2100
Certification :
CE,ROHS，CCC，TUV,BV， ISO
Place of Origin :
China
MOQ :
5Pcs
Price :
USD+110---120+kit
Supply Ability :
1000+unit+per day.
Delivery Time :
2 work days
Packaging Details :
Standard neutral packing,52x21x16cm(1 kit), 4kits as 1 carton(53x49x42cm)
1800MHz Range :
1710-1785MHz/1805-1880MHz
2100MHz Range :
1920-1980MHz/2110-2170MHz
Device Gain :
65±3dB
Output power :
≥20dBm
AGC Intelligent function :
Done,31dB @ 1dB/ Step
Power Supply :
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
Packing size :
52x21x16cm
Products type :
Cellular amplifier, mobile signal booster 3g 4g
Description

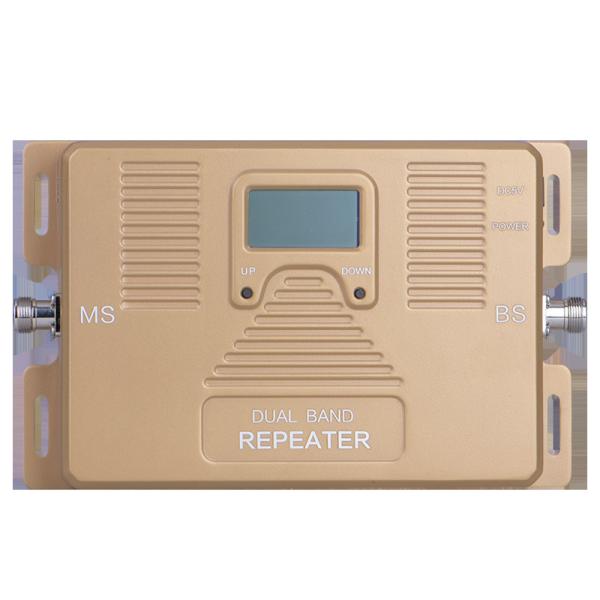

Real power showing 20dBm 3G LTE 4G Dual Band Smart Mobile Signal Booster

Product Description

The dual band 1800/2100MHz Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.

The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.

AGC MGC Function

The AGC and MGC functions can prevent the amplified signal from causing interference to the base station. Even if it is installed incorrectly, the amplifier can protect the normal operation of the base station.

Adjustable Gain

Automatic adjust the system gain to avoid the repeater self-excitation

Check the frequency range before you buy

To make sure that the amplifier you buy is suitable for your mobile operator, please follow the steps and detect the frequency range of your mobile phone. This signal booster can only work on Band 3, Band 1.


Band 8 = B8 = 2G GSM900 / EGSM900
Band 3 = B3 = 4G DCS1800 / 4G LTE1800
Band 1 = B1 = 3G WCDMA2100 / 3G UMTS2100

Real Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual Band

Technical Specifications

Specifications

Parameters

Frequency Range (Customers to Choose)

Uplink

1710-1785MHz, 1920-1980MHz

Downlink

1805-1880MHz, 2110-2170MHz

Frequency Bandwidth

75MHz&60MHz

Gain

68±3dB

Automatic gain control (Step Attenuation)

31dB @ 1dB/ Step

Auto Gain Control

20dB Min.

Output Power(Customers to Choose)

≤20dBm

Spurious Emission

≤ -15dBm/30kHz

9kHz~1GHz: ≤ -36dBm/30kHz

1GHz~12.75GHz: ≤ -30dBm/30kHz

Inter-Modulation Attenuation ACPR

≤ -40dBc / 30kHz (measured under rated output power)

In-band Ripple

≤ 3dB

VSWR

<=2

I/O Impedance

50 Ω

Noise Figure

≤ 5dB

System Delay

≤ 5μs

RF Connector(Customers to Choose)

N(Female)

Operating Temperature

Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C

Power Supply

AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)

Dimensions

165*130*40 (mm)

Weight

≤0.8 kg(Net)

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply

Further detail pls click here for downloading the products specification:

1800+2100MHz A032 mobile signal repeater.pdf

Real Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual BandReal Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual BandReal Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual BandReal Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual BandReal Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual BandReal Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual BandReal Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual BandReal Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual BandReal Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual Band

Real Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual BandReal Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual BandReal Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual Band

Real Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual BandReal Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual BandReal Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual BandReal Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual BandReal Power Showing 20dBm Smart Mobile Signal Booster 3G LTE 4G Dual Band

We are manufacturer, and have our own factory.

FAQ

Q1. Could I get a sample before bulk order?

Yes, we offer the sample for all models but charged.

Q2. What should I do if I don't know about frequency in my country?

This model is suitable for Asia, Europe, The Middle East, and Brazil, etc.

*For more details please contact us directly.

Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.

Q4.Payment Method
T/T, Western Union, Paypal, and Credit Card are available,
but we suggest paying by Trade Assurance, the most favor, and security method.
*Other methods please contact us with more details.

Q5.Shipment Date

Sample 1-3 business days
<50 pcs 7-10 days
50-200 pcs 10-15 days
>200 pcs Negotiate


Q6: Delivery Date of the sample by DHL/FedEx

Russia/Canada/Europe/Asia 3-5 days
Middle East/Latin American 3-6 days
African 5-7 days
