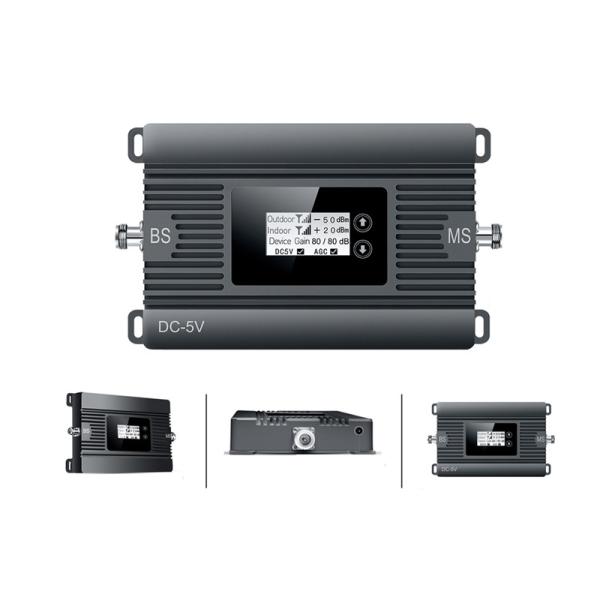

ATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large Coverage
ATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large Coverage
ATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large Coverage
ATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large Coverage
Specifications
Payment Terms :
T/T,Western Union,Paypal,Bank transfering
Brand name :
ATNJ
Frequency Range :
1710-1785MHz/1805-1880MHz
Gain :
80dB
AGC Intelligent function :
Done,31dB @ 1dB/ Step
Output power :
23-27dbm
RF Connect Type :
N/Female
Color :
Grey
Coverage :
200-700m2
Power Supply :
AC 100-240V
Products Type :
cellular repeater, signal blocker
Brand Name :
ATNJ
Model Number :
MS-D
Certification :
CE,ROHS，CCC，TUV,BV， ISO
Place of Origin :
China
MOQ :
5Pcs
Price :
USD+100---120+kit
Supply Ability :
1000+unit+per day.
Delivery Time :
3-5 work days
Packaging Details :
Standard neutral packing,52x21x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Description

ATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large Coverage

ATNJ RF repeater with industrial design, combines multi mobile network signals together and improves the mobile voice and data communication, aiming to provide a more cost-effective solution for signal. ATNJ RF repeater is easy to install and maintain,
which could help signal providers get fast solution.

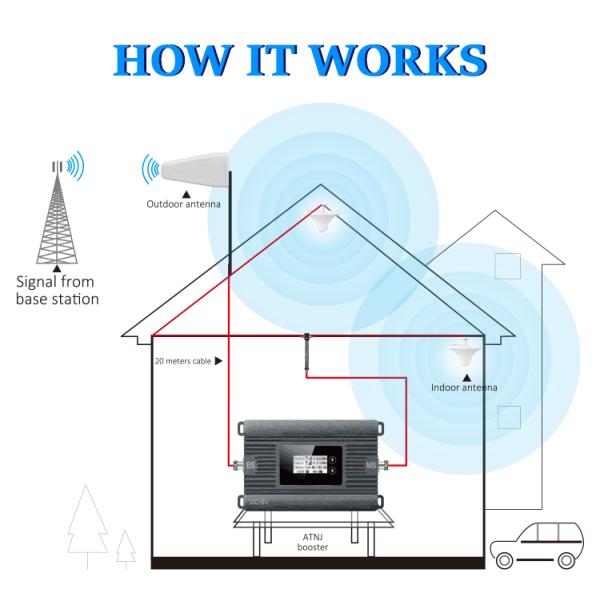

A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.

Technical Specifications

SPECIFICATIONS parameters
Frequency Range (Customers to Choose) Uplink 1710-1785MHz
Downlink 1805-1880MHz
Frequency Bandwidth (3dB Bandwidth) 75Mhz
Gain 80dB
Automatic gain control (Step Attenuation) 31dB @ 1dB/ Step
Auto Gain Control 20dB Min.
Output Power(Customers to Choose) 27dBm
Spurious Emission ≤ -15dBm/30kHz
9kHz~1GHz: ≤ -36dBm/30kHz
1GHz~12.75GHz: ≤ -30dBm/30kHz
Inter-Modulation Attenuation ACPR ≤ -40dBc / 30kHz (measured under rated output power)
In-band Ripple ≤ 3dB
VSWR <=2
I/O Impedance 50 Ω
Noise Figure ≤ 5dB
System Delay ≤ 5μs
RF Connector(Customers to Choose) N (Female)
Operating Temperature Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C
Power Supply AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
Weight ≤0.8 kg(Net)
Alarm Monitoring System Alarm for uplink self-oscillation
Indication LED Power supply

Further detail pls click here for downloading the products specification:

DCS 1800MHz B011A Signal Repeater.pdf

Selling Point

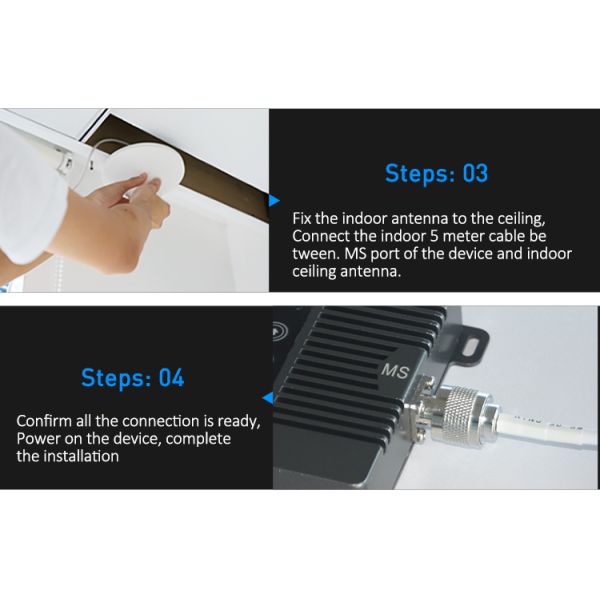

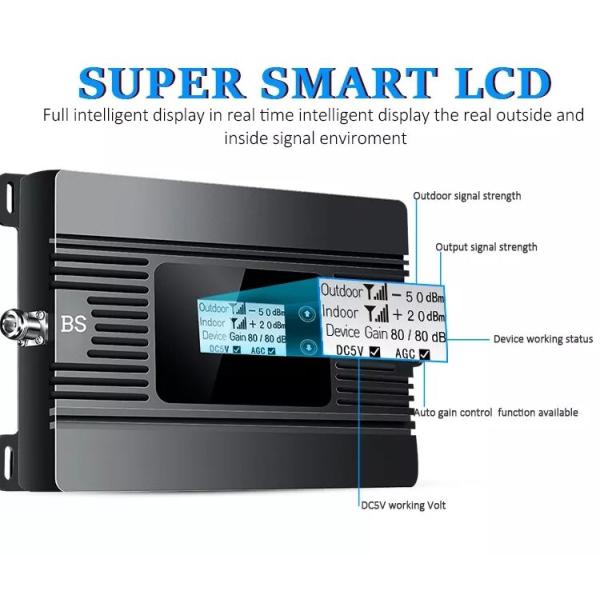

①Intelligent to guide the installation with LCD .
②Real time display the signal strength . Automatic dormancy when no user make the calling .

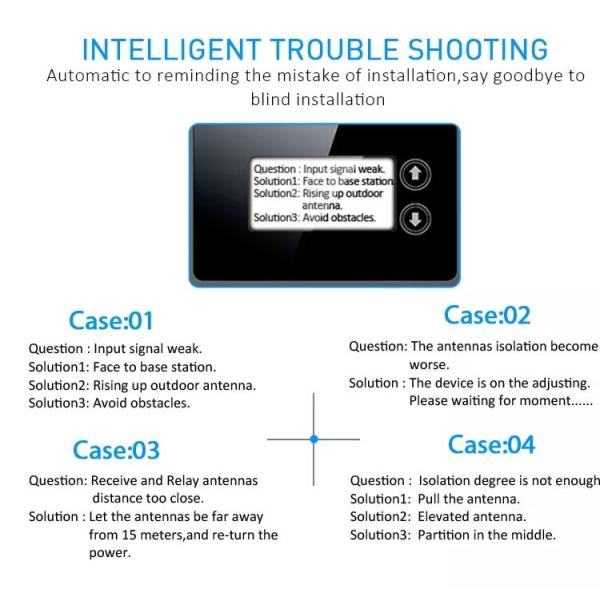

③Automatic alarm when installation mistake and provide the according solution .
④Automatic adjust the system gain to avoid the repeater self-excitation .
⑤Initiative reminding when the device was damaged .
⑥Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .Supports 5G bandwidth,40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .
⑦With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .

Product Description

ATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large CoverageATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large CoverageATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large CoverageATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large CoverageATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large CoverageATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large CoverageATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large CoverageATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large CoverageATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large CoverageATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large Coverage

ATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large CoverageATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large Coverage

ATNJ 2G 4G 1800MHz Mobile Signal Booster 80dB High Gain For Large Coverage

Product packaging and transportation

We have 10 years of experience packing and shipping abroad.

We would make sure the goods arrive safely.
We would help you choose the shipping option that makes the most sense for you.

Provide the destination of your shipment, sort your results by time or cost to find the most cost-effective shipping service.

FAQ :
Q1 : Are you trading company or manufacturer ? Could I use our own logo and label?

A1 : We are factory, with trading service. We provide OEM/OEM service.

Q2 : Can I have a sample order? What is your MOQ?
A2 : Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

Q3 : Is it easy to set up your items?
A3 : Yes. We have a user manual and support technical support 24/7.

Q4 : What is your warranty time?
A4 : We promise 1-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

Q5 : Do you accept OEM order and how long will you shipping after place an order?
A5 : We can manufacture according to customer's request and usually we can deliver goods 15-20 days after we receive your deposit.

Q6 : What is your payment terms?
A6 : We accept Trade Assurance, T/T, West Union, Paypal, Bank Account Transfering.
