1. Core Overview

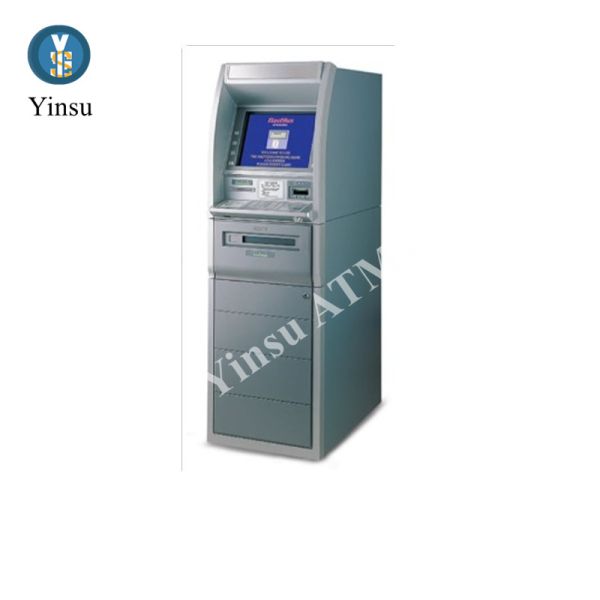

• Model: MoniMax 5600 (Lobby / Walk-Up)
• Installation: Freestanding, Indoor Lobby
• Key Features: Front-service design, compact footprint, EMV compliance, multi-cassette cash handling
• Target Use: Bank lobbies, corporate offices, high-traffic retail spaces

2. Hardware Specifications

Card Reader

Cash Dispensing Unit (CDU)

• Cassette Configuration: Up to 4 cash cassettes + 1 retract bin (total 5 modules)
• Capacity: 3,000 notes per cassette (max 12,000 notes total)
• Dispense Speed: Up to 50 notes per transaction
• Features: Automatic note shutter, note-by-note rejection, bundle present/retract, multi-denomination support
• Access: Front-loading for quick replenishment

Printers

• Receipt Printer: 80mm graphical thermal printer, semi-automatic paper loading
• Journal Printer: Optional (MDP-350 dot impact printer, 76mm width)

Main System

• CPU: Intel Pentium 4 / Celeron (legacy) / Modern equivalent
• Memory: 1GB DDR3 (upgradable)
• Storage: 160GB HDD (standard) / 128GB SSD (optional)
• OS: Windows 7 Embedded (standard) / Windows 10 (newer models)
• XFS: Hyosung Moniplus™ XFS 3.10 or later
• Ports: Gigabit LAN (10/100/1000Mbps), 8×USB, 6–8×RS232, Mini PCI-E expansion

Security & Safety

• Safe: UL 291 Level 1 certified (CEN optional)
• Locks: Mechanical combination lock, electronic lock, KABA Mas/Cencon lock (optional)
• Alarms: Heat + seismic sensors, door status sensor
• Tampers: Physical/electronic tamper detection, anti-tamper enclosures
• Cameras: Optional internal security camera (face/hand detection)

Power & Environment

• Power Input: 100–240V AC, 50/60Hz, 250W max
• Backup Battery: For safe shutdown and last transaction retention
• Operating Temp: 0°C ~ 40°C (32°F ~ 104°F)
• Storage Temp: -10°C ~ 60°C (14°F ~ 140°F)
• Humidity: 25%–86% (operating, non-condensing); 10%–90% (storage)
• Dimensions (H×W×D): 1,440 × 460 × 840 mm (58.6" × 18.1" × 33.1")
• Weight: ~350 kg (771.6 lbs)

3. Optional Modules

• Contactless NFC Card Reader
• Barcode Scanner (1D/2D)
• Biometric Fingerprint Reader
• Additional Security Cameras
• Privacy Filter
• ADA-Compliant Audio Guidance System

•
