GRG H22N Versatile Cash Dispenser ATM Machine

Product Description

1. Core Machine Overview

• Model: GRG H22N Series (Off-Premise Cash Dispenser ATM)
• Form Factor: Through-the-wall (TTW) / Walk-up / Lobby installation
• Key Positioning: Small footprint, high availability, and fast cash dispensing for heavy transaction volumes (e.g., Indonesian, Southeast Asian markets)

2. Hardware Specifications

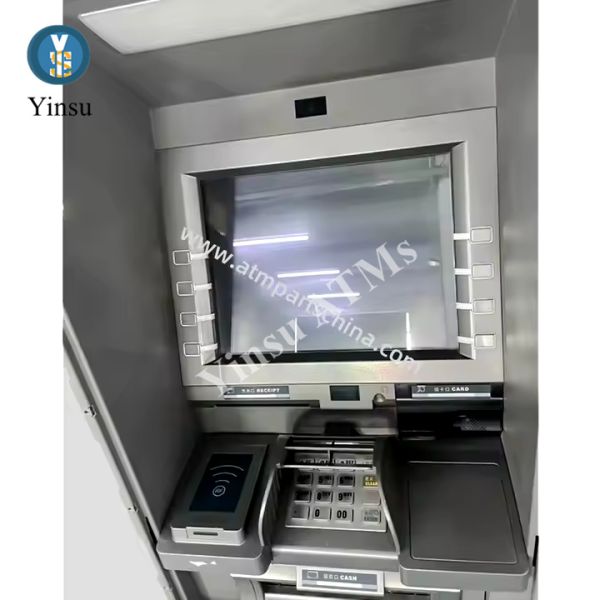

Display & Interface

• Main Display: 15-inch color LCD (optional touchscreen / privacy filter / sunlight-readable)

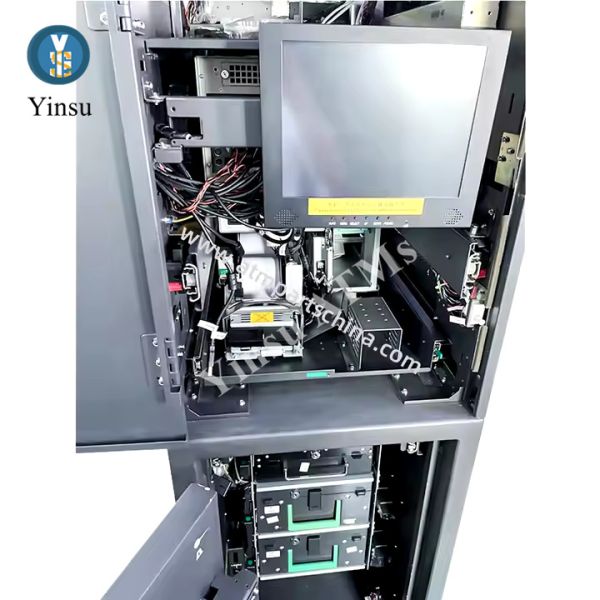

• Service Panel: 10.4-inch touchscreen (for function navigation)
• Keypad: 4×4 tactile EPP (Encrypting Pin Pad) with anti-skimming protection; supports multi-language layouts (e.g., German, English, local language)
• Card Reader: EMV-compliant smart card reader (contact/contactless optional; supports magnetic stripe, IC card, NFC)

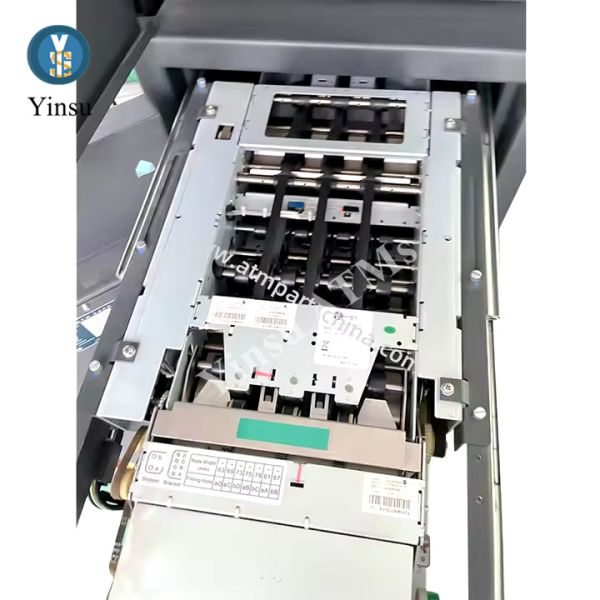

Cash Processing Unit (CDM)

• Dispensing Speed: Up to 7 notes per second
• Max Notes per Transaction: 100 notes (bulk dispensing)
• Cassette Configuration: Up to 4 cassettes (expandable to 6 in some variants)
• Cassette Capacity: Max 3,500 notes per cassette (total up to 12,000–14,000 notes)
• Note Compatibility: Handles 4–6 note sizes; supports multi-currency (e.g., IDR, MXN, EUR, etc.)
• Note Quality: Intelligent detection for worn/damaged notes to ensure clean dispensing

Peripherals

• Receipt Printer: 80mm thermal printer (203DPI; auto paper loading, low-paper alert)
• Journal Printer: Optional (for transaction logging)
• Power Supply: 110/220V AC, 50/60Hz (with backup battery option)
• Storage: 500GB HDD (supports dual HDD); DVD-RW drive
• Connectivity: Ethernet, USB, RS232; optional 3G/4G/Wi-Fi for remote management

3. Software & Security

• OS Support: Windows XP / 7 / 10 (customizable banking OS)
• Security Features:
  • Anti-skimming & anti-card-trapping protection
  • Encrypted PIN pad (EPP) with certified encryption (e.g., DES/3DES/AES)
  • SecOne security module (optional) for software/network hardening
  • Tamper alerts & physical security locks


• Application: GRG’s self-service banking application (supports integration with core banking systems, bill payment, and value-added services)

4. Physical & Environmental

• Dimensions: Compact footprint (optimized for space-constrained sites)
• Operating Temperature: 0–40°C (32–104°F)
• Relative Humidity: 20–80% (non-condensing)
• Certifications: CE, FCC, EMV, ISO 9001, and local market certifications (e.g., BSNL for Indonesia)
