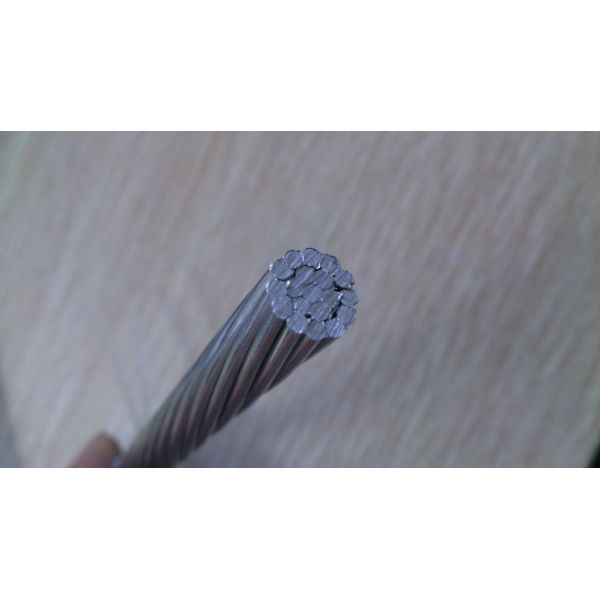

High Voltage AAAC Conductor AA6201 Swedish Spec Aerial Bare Conductor
High Voltage AAAC Conductor AA6201 Swedish Spec Aerial Bare Conductor
Specifications
Brand Name :
UNI-CABLES
Model Number :
AAAC6201
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Metric-Tons
Price :
USD$3100-3300 Per MT
Supply Ability :
100000MT per Month
Delivery Time :
15-20 days
Packaging Details :
1 MT per Wooden Reel
Conductor :
AA6201
Voltage :
High Voltage
Size :
31-910 mm2
Standard :
Swedish Spec
No. of Wires :
7-61 wires
Resistivity :
52.5% IACS
Description

Swedish Spec AAAC Conductor AAAC6201 High Voltage Aerial Bare Conductor

APPLICATION

The material used on these conductor is an aluminium alloy AA-6101. It’s a special alloy with Magnesium and Silicium with an excellent conductivity value (the average is 53%IACS).
The specific mechanical resistance is higher than AAC conductor (more or less the double), maintaining a high corrosion resistance.
Compared to ACSR, this kind of conductor is characterized by a lower diameter and the overloads due to the wind pressure are lower.

Key Benefits

  • High tensile strength as compared to AAAC conductor.
  • Higher conductivity as compared to ACSR conductor.
  • Better corrosion resistance than ACSR conductor.

Physical Contents of Alluminium Alloy :

  • Density : 2.70 kgm/dm3 at 20°C
  • Coefficient of Linear Expansion : 23 x 10-6 / °C
  • Resistivity : 0.0326 Ohms mm2/m at 20°C
  • Constant Mass Temperature Coefficient (a) : 0.00360/ °C
  • Material : Heat treated Al. Mg. Si. Alloy

DIMENSIONS

Swedish Spec.
All Aluminum Alloy Conductors ( AAAC )
Area Equivalent
Copper Area		 Stranding Overall
Diameter		 Weight Rated
Strength		 Maximum DC
Resistance
at 20oC
Nominal Actual
mm2 mm2 mm2 No/mm mm kg/km kN Ω /km
31 31.1 17.7 7/2.38 7.14 85 9.31 0.974
62 62.4 35.6 7/3.37 10.11 170 17.2 0.486
99 99.3 56.6 7/4.25 12.75 271 25.3 0.305
157 158.6 90.4 19/3.26 16.3 436 43.7 0.193
241 241.2 137.5 19/4.02 20.1 663 61.6 0.127
329 330 188.1 37/3.37 23.59 910 90.7 0.0928
454 454.5 259.1 61/3.08 27.72 1260 125 0.0675
593 593.6 338.4 61/3.52 31.68 1640 157 0.0517
774 774.2 441.3 61/4.02 36.18 2140 197 0.0396
910 910.7 519.1 61/4.36 39.24 2520 232 0.0337
