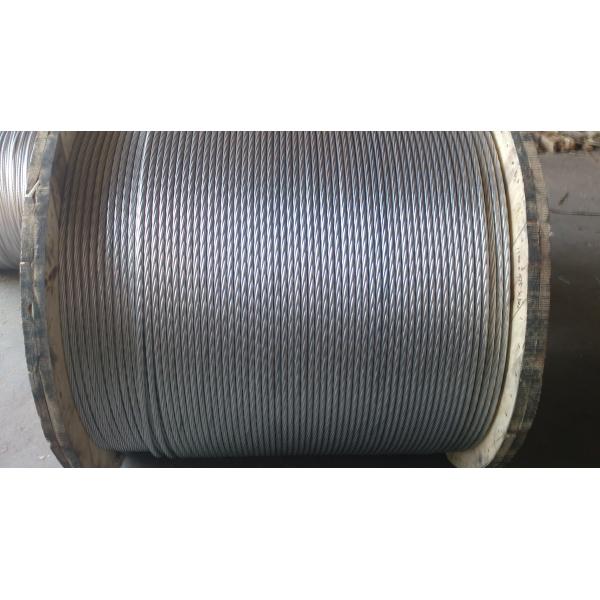

IEC 61089 AAAC Conductor Type A2 High Conductivity Aluminum Alloy
IEC 61089 AAAC Conductor Type A2 High Conductivity Aluminum Alloy
Specifications
Brand Name :
UNI-CABLES
Model Number :
Type A2
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Metric-Tons
Price :
USD$3100-3300 Per MT
Supply Ability :
100000MT per Month
Delivery Time :
15-20 days
Packaging Details :
1 MT per Wooden Reel
Conductor :
AL6201-T81
Voltage :
High Voltage
Size :
16-1120 mm2
Standard :
IEC Specification
No. of Wires :
7-91
Resistivity :
53% IACS
Description

IEC 61089 AAAC Conductor Type A2 High Conductivity Aluminum Alloy Conductor

APPLICATION

Aluminum Alloy Conductor (AAAC) manufactured out of this aluminum alloy 6201 (minimum conductivity 53%), have a better corrosion resistance and a better strength to weight ratio. On an equal diameter basis AAAC conductors possess higher electrical conductivity than ACSR conductors.

These conductors are designed to get better strength to weight ratio and offer improved electrical properties, excellent sag-tension characteristics, and superior corrosion resistance when compared with ACSR. As compared to a conventional ACSR conductor, the lighter weight, comparable strength & current carrying capacity, lower electrical losses and superior corrosion resistance have given AAAC a wide acceptance in the distribution and medium & high voltage transmission lines..

Features:

  • High current carrying capacity
  • Excellent resistance to corrosion
  • Ideal for use in coastal area
  • Suitable for low & medium voltage lines in urban area

CABLE STANDARDS
IEC 61089

DIMENSIONS

IEC Spec.
All Aluminum Alloy Conductors Type A2
Code
Name		 Area
Actual		 Equivalent
Copper Area		 Stranding Overall
Diameter		 Weight Rated
Strength		 Maximum DC
Resistance
at 20℃
mm2 mm2 No/mm mm kg/km kN Ω /km
16 18.4 9.8 7/1.83 5.49 50.4 5.43 1.7896
25 28.8 15.3 7/2.9 6.87 78.7 8.49 1.1453
40 46 24.4 7/2.89 8.67 125.9 13.58 0.7158
63 72.5 38.4 7/3.63 10.9 198.3 21.39 0.4545
100 115 61 19/2.78 13.9 316.3 33.95 0.2877
125 144 76 19/3.10 15.5 395.4 42.44 0.2302
160 184 98 19/3.51 17.6 506.1 54.32 0.1798
200 230 122 19/3.93 19.7 632.7 67.91 0.1439
250 288 153 19/4.39 22 790.8 84.88 0.1151
315 363 192 37/3.53 24.7 998.9 106.95 0.0916
400 460 244 37/3.98 27.9 1268.4 135.81 0.0721
450 518 275 37/4.22 29.5 1426.9 152.79 0.0641
500 575 305 37/4.45 31.2 1585.5 169.76 0.0577
560 645 342 61/3.67 33 1778.4 190.14 0.0516
630 725 384 61/3.89 35 2000.7 213.9 0.0458
710 817 433 61/4.13 37.2 2254.8 241.07 0.0407
800 921 488 61/4.38 39.4 2540.6 271.62 0.0361
900 1036 549 91/3.81 41.9 2861.1 305.58 0.0321
1000 1151 610 91/4.01 44.1 3179 339.53 0.0289
1120 1289 683 91/4.25 46.8 3560.5 380.27 0.0258
1250 1439 763 91/4.49 49.4 3973.7 424.41 0.0231

IEC 61089 AAAC Conductor Type A2 High Conductivity Aluminum Alloy
