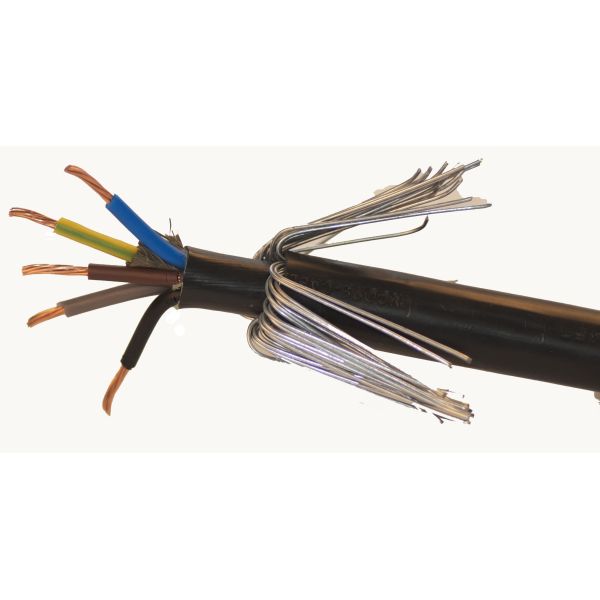

Mild Steel 3 Core Armoured Electrical Cable Multicore With Mechanical Protection
Mild Steel 3 Core Armoured Electrical Cable Multicore With Mechanical Protection
Specifications
Brand Name :
UNI-Cables
Model Number :
1.5 multicore
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1000M
Price :
Negotiable
Supply Ability :
70000 Meters per Week
Delivery Time :
15-18 working days
Packaging Details :
1000 Meters in a Wooden Reel
Voltage Rating (Uo/U) :
600/1000V
Standard: :
BS5467
Conductors: :
Class 1 solid & Class 2 stranded
Insulation :
XLPE
Armour :
Galvanized mild steel wires
Outer Sheath :
PVC (Polyvinyl Chloride)
Description

BS5467 1.5mm² Multicore Armoured Electrical Cable 0.6/1kv With PVC Bedding

APPLICATION

Designed for use in mains supply electricity. These cables are provided with mechanical protection are therefore suitable for external use and direct burial.

Steel Wire Armour cable BS5467 (SWA) is a hard-wearing power cable, with mechanical protection, designed for the supply of mains electricity. SWA is suitable for indoors and outdoors, in cable ducts or directly buried in the ground. Multi-core steel wire armoured cable can also be used for auxiliary control.

Armoured cable is protected by a sheath of wire armouring making it suitable for direct burial or use overhead without further protection.

Standard: BS5467
Conductors: Class 1 solid & Class 2 stranded, plain copper to EN 60228
Insulation: XLPE
Bedding: PVC
Armour: Galvanised mild steel to BS EN 10257-1
Sheath: PVC

Core identity/colours:
2 Core Blue/Brown
3 Core Brown/Black/Grey
4 Core Blue/Brown/Black/Grey
5 Cores and above Numbered cores

DIMENSIONS

1.5mm² Multicore Cables

Conductor size Insulation Bedding Bedding Diam Armour Sheath r/t Overall Diam Cable weight
r/t (mm) r/t (mm) (mm) size (mm) (mm) (mm) (Kg/Km)
1.5mm² (class 1) 7C 0.6 0.8 0.9 9.4 1.4 14 440
1.5mm² (class 2) 7C 0.6 0.8 1.25 10 1.5 15.5 560
1.5mm² (class 1)10C 0.6 0.8 1.25 12 1.5 17.5 682
1.5mm² (class 2) 10C 0.6 0.8 1.25 12.8 1.5 18.3 722
1.5mm² (class 1) 12C 0.6 0.8 1.25 12.38 1.5 17.9 736
1.5mm² (class 2) 12C 0.6 0.8 1.25 13.26 1.5 18.76 780
1.5mm² (class 1) 19C 0.6 0.8 1.25 14.55 1.6 20.25 960
1.5mm² (class 2) 19C 0.6 0.8 1.6 15.6 1.6 22 1145
1.5mm² (class 1) 27C 0.6 1 1.6 17.95 1.7 24.55 1418
1.5mm² (class 2) 27C 0.6 1 1.6 19.25 1.7 25.85 1498
1.5mm² (class 1) 37C 0.6 1 1.6 20.15 1.8 26.95 1725
1.5mm² (class 2) 37C 0.6 1 1.6 21.6 1.8 28.4 1834

2.5mm² Multicore Cables

Conductor size Insulation Bedding Bedding Diam Armour Sheath r/t Overall Diam Cable weight
r/t (mm) r/t (mm) (mm) size (mm) (mm) (mm) (Kg/Km)
2.5mm² (class 1) 7C 0.7 0.8 11.2 1.25 1.5 16.7 676
2.5mm² (class 2) 7C 0.7 0.8 11.88 1.25 1.5 17.38 700
2.5mm² (class 1) 10C 0.7 0.8 14.37 1.25 1.6 20.07 897
2.5mm² (class 2) 10C 0.7 0.8 15.3 1.6 1.6 21.7 1068
2.5mm² (class 1) 12C 0.7 0.8 14.88 1.25 1.6 20.58 977
2.5mm² (class 2) 12C 0.7 0.8 15.84 1.6 1.6 22.24 1156
2.5mm² (class 1) 19C 0.7 1 19.85 1.6 1.7 24.55 1484
2.5mm² (class 2) 19C 0.7 1 19.1 1.6 1.7 25.7 1551
2.5mm² (class 1) 27C 0.7 1 21.64 1.6 1.8 28.44 1915
2.5mm² (class 2) 27C 0.7 1 23.06 1.6 1.8 29.86 2011
2.5mm² (class 1) 37C 0.7 1 24.31 1.6 1.9 31.31 2366
2.5mm² (class 2) 37C 0.7 1 25.92 2 1.9 33.72 2706
