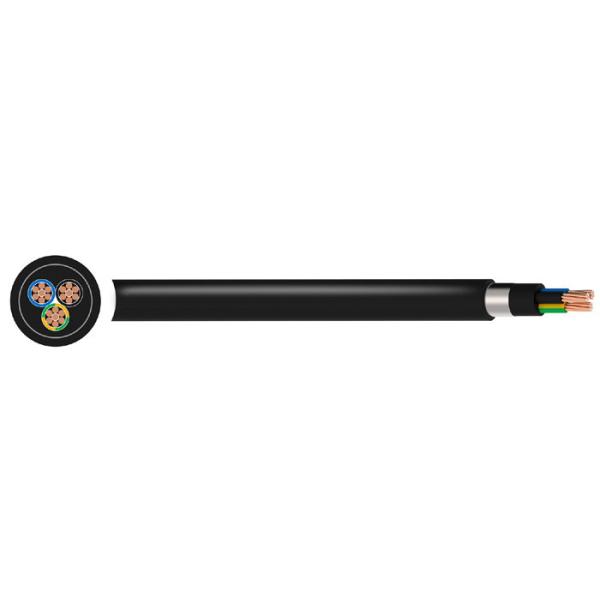

3.5 KV Industrial Armored Core Cable PVC Outer Sheath
3.5 KV Industrial Armored Core Cable PVC Outer Sheath
Specifications
Brand Name :
UNI-Cables
Model Number :
RVFV
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
2000M
Price :
Depends on Quantity
Supply Ability :
70000 Meters per Week
Delivery Time :
15-18 working days
Packaging Details :
1000 Meters in a Wooden Reel
Voltage Rating (Uo/U) :
600/1000V
Test Voltage :
3.5 kV
Temperature Rating :
-10°C to +60°C
Maximum Operating Temperature :
+90°C
Core Identification :
3 core including earth: Blue Brown Green/Yellow
Outer Sheath Colour :
Black
Conductor :
Class 1 solid or Class 2 stranded copper conductor
Insulation :
XLPE
Inner Sheath :
PVC (Polyvinyl Chloride)
Armour :
Two steel tapes
Outer Sheath :
PVC (Polyvinyl Chloride)
Description

NF C 32-322 Standard Armoured Electrical Cable U-1000 RVFV / XAV 0.6/1kV Cable

3.5 KV Industrial Armored Core Cable PVC Outer Sheath

APPLICATION

These U-1000 RVFV cables are suitable for direct burial without additional protection or for installation on cable trays or in ducts where mechanical protection is necessary (bursting risk)

CABLE STANDARDS

NF C 32-322

GB/T12706

IEC60502

DIMENSIONS

UNI-Cables
PART NO.		 NO. OF CORES NOMINAL CROSS SECTIONAL AREA
mm²		 NOMINAL OVERALL DIAMETER
mm		 NOMINAL WEIGHT
kg/km
2 core
UNIRVFV20015 2 1.5 13 215
UNIRVFV20025 2 2.5 14 249
UNIRVFV20040 2 4 15.5 309
UNIRVFV20060 2 6 16.5 386
UNIRVFV2010 2 10 18.5 515
UNIRVFV2016 2 16 20.5 709
UNIRVFV2025 2 25 23.5 1063
3 core
UNIRVFV30025 3 2.5 14.5 274
UNIRVFV30040 3 4 16 352
UNIRVFV30060 3 6 17.5 447
UNIRVFV3010 3 10 19 624
UNIRVFV3016 3 16 22 849
UNIRVFV3025 3 25 25 1273
UNIRVFV3035 3 35 32.5 1644
UNIRVFV3050 3 50 37.5 2107
UNIRVFV3070 3 70 35 2862
UNIRVFV3095 3 95 40 4190
UNIRVFV3120 3 120 45 5176
UNIRVFV3150 3 150 50 6303
UNIRVFV3185 3 185 54 7698
UNIRVFV3240 3 240 63 9814
3 core with smaller neutral conductor
UNIRVFV3050N 3 50 34.5 2560
UNIRVFV3070N 3 70 40 3492
UNIRVFV3095N 3 95 45 4790
UNIRVFV3120N 3 120 50 5951
UNIRVFV3150N 3 150 54 7090
5 core
UNIRVFV50015 5 1.5 15.5 301
UNIRVFV50025 5 2.5 17 373
UNIRVFV50040 5 4 18.5 480
UNIRVFV50060 5 6 20.5 638
UNIRVFV5010 5 10 22.5 900
UNIRVFV5016 5 16 26 1250
UNIRVFV5025 5 25 31 1903
UNIRVFV5035 5 35 32 2455

ELECTRICAL CHARACTERISTICS

NOMINAL CROSS SECTIONAL AREA
mm²		 PERMISSIBLE CURRENT RATING WHEN BURIED
Amps
2 core 3 core 5 core
1.5 37 - 31
2.5 48 41 41
4 63 53 53
6 80 66 66
10 104 87 87
16 136 113 113
25 173 144 144
35 - 174 170
50 - 206 -
70 - 254 -
95 - 301 -
120 - 343 -
150 - 387 -
185 - 434 -
240 - 501 -
