16A Series ARF Temperature Fuse High Current Load Capacity And Instantaneous Overload Protection
16A Series ARF Temperature Fuse High Current Load Capacity And Instantaneous Overload Protection
Specifications
Brand Name :
ARLIN
Place of Origin :
Shenzhen,China
Model Number :
F00240C
Certification :
UL&CUL,VDE,TUV,CCC,PSE,KC,CB
Material :
Silver, copper, ceramic, stainless steel, and epoxy resin
Rated voltage :
125VAC/250VAC
Rated current :
10A/16A/17A
Rated temperature :
240℃
Fusing-Off Tempe :
235~239℃
Holding temperature :
200℃
maximum temperature :
450℃
maximum resistance :
1mΩ
Response Time :
Fast Blow
Lead length :
Long 35mm, Short 25mm
MOQ :
2000pcs
MPQ :
500pcs
Application :
electric appliance
Description

To meet customers' demands for higher current, Aial has developed the 16A series. High quality materials and exquisite processing techniques ensure the high current load capacity and instantaneous overload capacity of the 16A series.
Size:

16A Series ARF Temperature Fuse High Current Load Capacity And Instantaneous Overload Protection

编号

①

②

 ③ ④

部件及规格

独立线脚

▢Ø1.0(铜镀银)

本体

Ø4.0(铜镀银)

外壳线脚

Ø1.0(铜镀银)

 高温密封胶

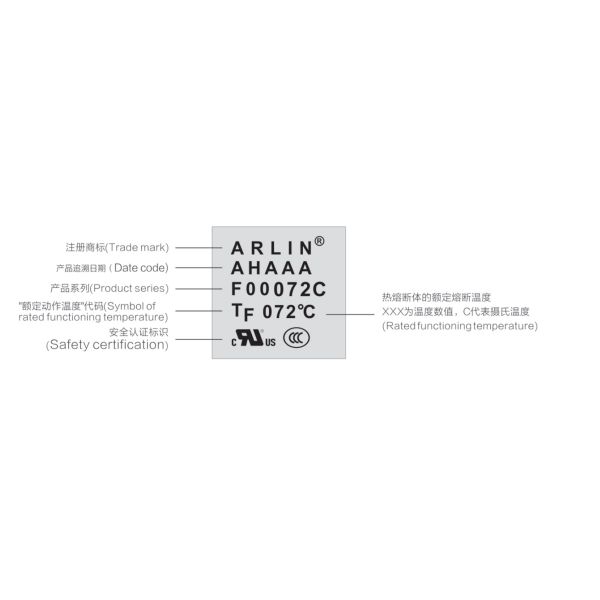

Printing and coding principles for thermal fuse products:

16A Series ARF Temperature Fuse High Current Load Capacity And Instantaneous Overload Protection


Specification Table:

Characteristic Sheet of ARLIN® 16A/250V

额定动作温度

Tf

实际动作温度

Ta

保持温度

Th

极限温度

Tm

电流电压

I/U

安规认证

CCC

VDE

TUV

PSE

KC

72°C

67℃71℃

57°C

201°C

16A,250V

●

●

●

●

◎

77°C

72℃—76℃

62°C

301°C

16A,250V

●

●

●

●

◎

84°C

79℃—83℃

69°C

301°C

16A,250V

●

●

●

●

●

93°C

88℃—92℃

78°C

301°C

16A,250V

●

●

●

●

●

98°C

92℃—97℃

83°C

301°C

16A,250V

●

●

●

●

●

104°C

98℃—103℃

89°C

226°C

16A,250V

●

●

●

●

●

110°C

105℃—109℃

95°C

301°C

16A,250V

●

●

●

●

●

117°C

111℃—116℃

102°C

401°C

16A,250V

●

◎

●

●

●

121°C

116℃—120℃

106°C

401°C

16A,250V

●

●

●

●

●

128°C

123℃—127℃

113°C

401°C

16A,250V

●

●

●

●

●

134°C

128℃—133℃

119°C

401°C

16A,250V

●

◎

●

●

●

144°C

139℃—143℃

129°C

401°C

16A,250V

●

●

●

●

●

152°C

146℃—151℃

137°C

401°C

16A,250V

●

◎

●

●

●

157°C

151℃—156℃

142°C

401°C

16A,250V

●

◎

●

●

●

167°C

161℃—166℃

152°C

401°C

16A,250V

●

●

●

●

●

172°C

167℃—171℃

157°C

401°C

16A,250V

●

●

●

●

●

184°C

179℃—183℃

169°C

401°C

16A,250V

●

●

●

●

●

192°C

187℃—191℃

177°C

401°C

16A,250V

●

●

●

●

●

216°C

211℃—215℃

200°C

451°C

16A,250V

●

●

●

●

●

229°C

224℃—228℃

200°C

451°C

16A,250V

●

●

●

●

●

240°C

235℃—239℃

210°C

451°C

16A,250V

●

●

●

●

●

257°C

252℃—256℃

220°C

471°C

16A,250V

●

◎

●

●

●

●Approved 已认证 ◎On going 申请中

注:UL&CUL 98—192℃ 16A/250VAC
