ARF Temperature Fuse F00 Series With H90 Copper Shell And Silver Contacts Offering Temperature Protection
ARF Temperature Fuse F00 Series With H90 Copper Shell And Silver Contacts Offering Temperature Protection
Specifications
Model :
ARF
Ratedcurrent :
Varies (e.g., 10A, 15A)
Voltagerating :
Typically 250V AC
Breakingcapacity :
10A at 250V AC
Dimensions :
Varies by model (e.g., length 20mm, diameter 6mm)
Ratedtemperature :
Varies (e.g., 72°C, 90°C, 110°C)
Responsetime :
Fast acting
Place of Origin :
china
Compliance :
UL, CSA, VDE certified
Operatingtemperaturerange :
-40°C to +150°C
Description

Product Description:

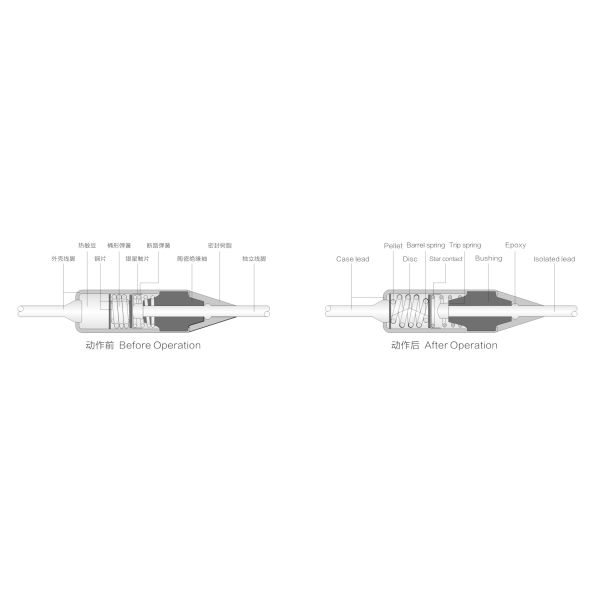

The F00 series products are thermal fuses featuring H90 copper housings and high-sensitivity organic thermal pellets as the temperature-sensing element. High-quality silver contacts provide extremely low internal resistance and excellent current-carrying capability.

ARF Temperature Fuse F00 Series With H90 Copper Shell And Silver Contacts Offering Temperature Protection

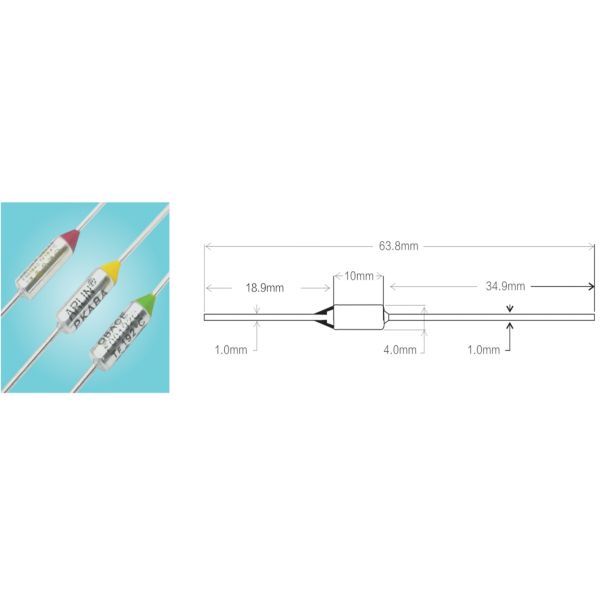

Size:

ARF Temperature Fuse F00 Series With H90 Copper Shell And Silver Contacts Offering Temperature Protection

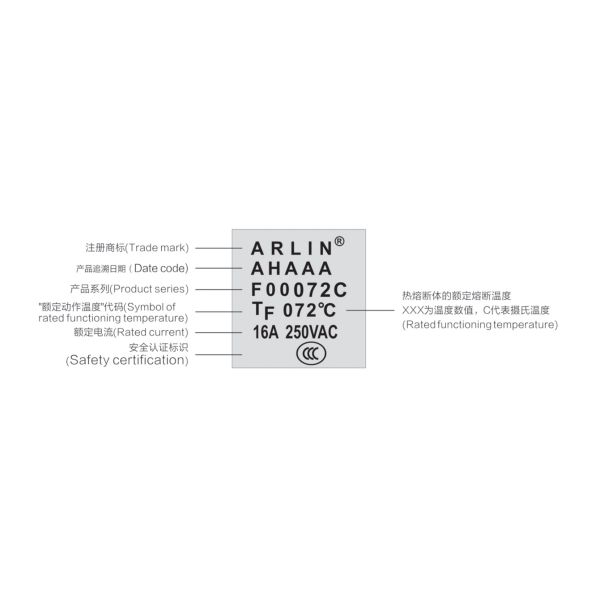

Marking and Coding:

ARF Temperature Fuse F00 Series With H90 Copper Shell And Silver Contacts Offering Temperature Protection

Specification Table:

Characteristic Sheet of ARLIN® F00 Series

额定动作温度

Tf

实际动作温度

Ta

保持温度

Th

极限温度

Tm

额定电流

I/U

安规认证

 环保
UL VDE TUV CCC PSE KC CB REACH ROHS
72°C

67℃～71℃

 57°C 201°C

10A/250V

15A/120V

16A/250V

 ● ● ● ● ● ● ● √ √
77°C 72℃～76℃ 62°C 301°C ● ● ● ● ● ● ● √ √
84°C 79℃～83℃ 69°C 301°C ● ● ● ● ● ● ● √ √
93°C 88℃～92℃ 78°C 301°C ● ● ● ● ● ● ● √ √
98°C 93℃～97℃ 83°C 301°C ● ● ● ● ● ● ● √ √
104°C 99℃～103℃ 89°C 226°C ● ● ● ● ● ● ● √ √
110°C 105℃～109℃ 95°C 301°C ● ● ● ● ● ● ● √ √
117°C 112℃～116℃ 102°C 401°C ● ◎ ● ● ● ● ● √ √
121°C 116℃～120℃ 106°C 401°C ● ● ● ● ● ● ● √ √
128°C 123℃～127℃ 113°C 401°C ● ● ● ● ● ● ● √ √
134°C 129℃～134℃ 119°C 401°C ● ◎ ● ● ● ● ● √ √
144°C 139℃～143℃ 129°C 401°C ● ● ● ● ● ● ● √ √
152°C 147℃～151℃ 137°C 401°C ● ◎ ● ● ● ● ● √ √
157°C 152℃～156℃ 142°C 401°C ● ◎ ● ● ● ● ● √ √
167°C 162℃～166℃ 152°C 401°C ● ● ● ● ● ● ● √ √
172°C 167℃～171℃ 157°C 401°C ● ● ● ● ● ● ● √ √
184°C 179℃～183℃ 169°C 401°C ● ● ● ● ● ● ● √ √
192°C 187℃～191℃ 177°C 401°C ● ● ● ● ● ● ● √ √
216°C 211℃～215℃ 200°C 451°C ● ● ● ● ● ● ● √ √
229°C 224℃～228℃ 200°C 451°C ● ● ● ● ● ● ● √ √
240°C

235℃～239℃

210°C

 451°C ● ● ● ● ● ● ● √ √
257°C 252℃～256℃

210°C

471°C

●

 ◎ ● ● ● ● ● √ √
●Approved已认证 ◎On going申请中 √ Compliance符合
