ART Series Thermostat Miniature And Temperature Control Solution For Household Appliances Power Tools
ART Series Thermostat Miniature And Temperature Control Solution For Household Appliances Power Tools
Specifications
Model Number :
AT02 series
Place of Origin :
China
Description

Structural Features:

·Miniature design for easy installation.

·Responds quickly to temperature changes, with positive and reliable action and no arcing.

·No current thermal effect design ensures accurate temperature control, long service life, and low internal resistance.

·Uses imported environmentally friendly materials (tested to RoHS and REACH standards) and complies with export requirements.

ART Series Thermostat Miniature And Temperature Control Solution For Household Appliances Power Tools

Scope of Application:

This product is used in electric heating appliances such as motors, air compressors, water pumps, electronic ballasts, transformers, lighting fixtures, car seat cushions, medical heat packs, pet mats, electric blankets, glue guns, power tools, household appliances, and instrumentation.

Installation Notes:

·For contact-type temperature sensing installation, the product must be mounted in close contact with the surface of the controlled device.

·Do not forcibly deform, press, or modify the housing during installation, as this may affect product performance.

·Note: Different housing mounting rings and terminals are available upon request.

Technical Specifications:

·Contact form: Normally Open (N.O.) / Normally Closed (N.C.)

·Rated voltage and current: 2.5A / 250VAC

·Operating temperature range: 50°C to 150°C (in 5°C increments)

·Standard tolerance: ±5°C (±2°C available on request)

·Cycle life: ≥ 6,000 cycles

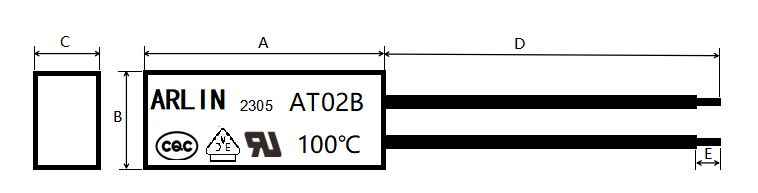

型号 长A 宽B 厚C 材质 电流I/电压U UL VDE CQC
AT02B 15 5 2.4 塑胶 2.5A/250VAC ● ● ●

ART Series Thermostat Miniature And Temperature Control Solution For Household Appliances Power Tools


Safety certification:

ART Series Thermostat Miniature And Temperature Control Solution For Household Appliances Power Tools
