ART Series Thermostat Temperature Control Device With Glue Dispensers Boilers Air Conditioners
ART Series Thermostat Temperature Control Device With Glue Dispensers Boilers Air Conditioners
Specifications
Power :
16A 250VAC
Controltype :
Touchscreen
Installation :
Wall-mounted
Model :
ART-1000
Type :
Digital Thermostat
Powersupply :
AC 110-240V
Temperaturerange :
-10°C to 50°C
Programmable :
Yes
Displaytype :
LCD
Outputtype :
Relay Output
Temperature :
50～250℃
Model Number :
KSD301 series
Place of Origin :
china
Description

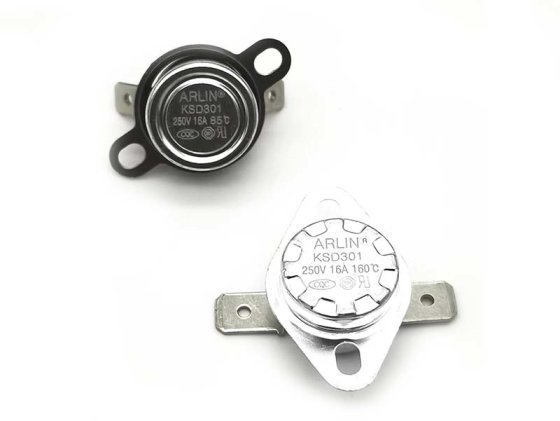

KSD301 thermostat:

ART Series Thermostat Temperature Control Device With Glue Dispensers Boilers Air Conditioners

Structural Features:

·Miniature design for easy installation.

·Responds quickly to temperature changes, with positive and reliable action and no arcing.

·No current thermal effect design ensures accurate temperature control, long service life, and low internal resistance.

·Uses imported environmentally friendly materials (tested to RoHS and REACH standards) and complies with export requirements.

Scope of Application:

This product is used in electric heating appliances such as water dispensers, water heaters, sandwich toasters, dishwashers, clothes dryers, disinfection cabinets, microwaves, electric coffee makers, electric kettles, refrigerators, air conditioners, glue dispensers, boilers, office equipment, household appliances, and instrumentation.

Installation Notes:

·For contact-type temperature sensing installation, the product must be mounted in close contact with the surface of the controlled device.

·Do not forcibly deform, press, or modify the housing during installation, as this may affect product performance.

·Note: Different housing mounting rings and terminals are available upon request.

Technical Specifications:

·Contact form: Normally Open (N.O.) / Normally Closed (N.C.)

·Rated voltage and current: 16A / 250VAC

·Operating temperature range: 50°C to 250°C (in 5°C increments)

·Standard tolerance: ±5°C (±2°C available on request)

·Cycle life: ≥ 100,000 cycles

Temperature range:

KSD系列

型号

动作温度

复位温度

型号

动作温度

复位温度

KSD301-B(K)T(D)-50℃

50±5.0

30±5

KSD301-B(K)T(D)-155℃

155±5.0

130±5

KSD301-B(K)T(D)-55℃

55±5.0

35±5

KSD301-B(K)T(D)-160℃

160±5.0

135±5

KSD301-B(K)T(D)-60℃

60±5.0

40±5

KSD301-B(K)T(D)-165℃

165±5.0

140±5

KSD301-B(K)T(D)-65℃

65±5.0

45±5

KSD301-B(K)T(D)-170℃

170±5.0

145±5

KSD301-B(K)T(D)-70℃

70±5.0

50±5

KSD301-B(K)T(D)-175℃

175±5.0

150±5

KSD301-B(K)T(D)-75℃

75±5.0

55±5

KSD301-B(K)T(D)-180℃

180±5.0

155±5

KSD301-B(K)T(D)-80℃

80±5.0

60±5

KSD301-B(K)T(D)-185℃

185±5.0

160±5

KSD301-B(K)T(D)-85℃

85±5.0

65±5

KSD301-B(K)T(D)-190℃

190±5.0

165±5

KSD301-B(K)T(D)-90℃

90±5.0

70±5

KSD301-B(K)T(D)-195℃

195±5.0

170±5

KSD301-B(K)T(D)-95℃

95±5.0

75±5

KSD301-B(K)T(D)-200℃

200±5.0

175±5

KSD301-B(K)T(D)-100℃

100±5.0

80±5

KSD301-B(K)T(D)-205℃

205±5.0

175±5

KSD301-B(K)T(D)-105℃

105±5.0

85±5

KSD301-B(K)T(D)-210℃

210±5.0

180±5

KSD301-B(K)T(D)-110℃

110±5.0

90±5

KSD301-B(K)T(D)-215℃

215±5.0

185±5

KSD301-B(K)T(D)-115℃

115±5.0

95±5

KSD301-B(K)T(D)-220℃

220±5.0

190±5

KSD301-B(K)T(D)-120℃

120±5.0

100±5

KSD301-B(K)T(D)-225℃

225±5.0

195±5

KSD301-B(K)T(D)-125℃

125±5.0

105±5

KSD301-B(K)T(D)-230℃

230±5.0

200±5

KSD301-B(K)T(D)-130℃

130±5.0

110±5

KSD301-B(K)T(D)-235℃

235±5.0

205±5

KSD301-B(K)T(D)-135℃

135±5.0

115±5

KSD301-B(K)T(D)-240℃

240±5.0

210±5

KSD301-B(K)T(D)-140℃

140±5.0

120±5

KSD301-B(K)T(D)-245℃

245±5.0

215±5

KSD301-B(K)T(D)-145℃

145±5.0

125±5

KSD301-B(K)T(D)-250℃

250±5.0

220±5

KSD301-B(K)T(D)-150℃

150±5.0

130±5


Product Code:

ART Series Thermostat Temperature Control Device With Glue Dispensers Boilers Air Conditioners

Safety certification:

ART Series Thermostat Temperature Control Device With Glue Dispensers Boilers Air Conditioners
