Inductor Inner Electrode Silver Termination Paste High Conductivity
Inductor Inner Electrode Silver Termination Paste High Conductivity
Specifications
Brand Name :
APG
Place of Origin :
china
Certification :
ISO9001、ISO14001、ISO45001、IAFT16949
Packaging Details :
Vacuum-sealed packaging, case-packed for storage and transport
Delivery Time :
4-5 weeks
Payment Terms :
T/T
Supply Ability :
Stable supply
Silver Content (wt.%) :
80~90
Viscosity (Pa·S) :
150~220
Fineness (μm) :
≤8
Printing Accuracy:(μm) :
30~120
Shrinkage Rate (%) :
15~18
Name :

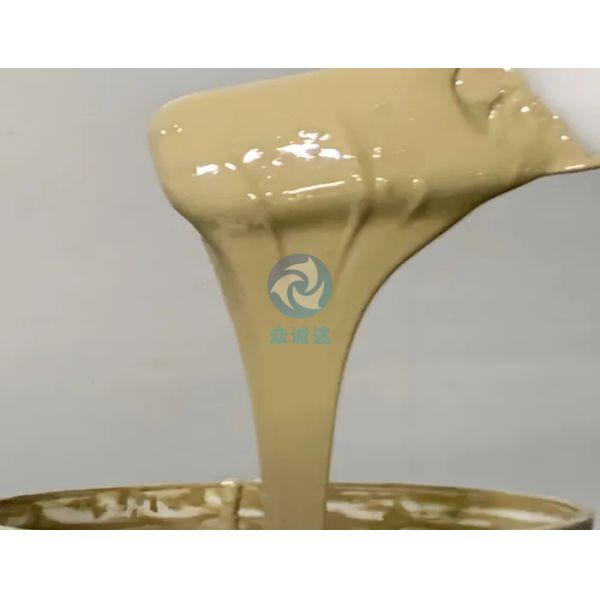

Inductor Inner-Electrode Silver Paste
Core Functions :
Form internal conductive coils or electrodes
Key Features :
Good fowability,thixotropy,uniformity,and ceramic wettability. The printed electrodes are smooth,dense, anduniform,making them suitable for manufacturing fine conductive adhesive films
Application Field :
Specifically engineered for internal electrode fabrication in MLCIs,high-frequency inductors,and ferritebeads. It is optimized for fine-line metallization in signal processing and power modules across 5G/6Ginfrastructure,smartphones,and automotive ECUs.
Description

Silver termination paste is a foundational material for the formation of external inductor electrodes. Formulated from high-purity silver powder, glass frit, and a specialized organic vehicle, it is applied via precision dipping or screen-printing methodologies. Following low-temperature sintering, it develops a highly densified electrode layer that ensures a robust interface between internal coils and external circuitry, providing the necessary resilience for subsequent Ni/Sn electroplating processes.

Core Advantages

● High Conductivity

High silver content (typically 80%-90%) with conductivity up to 10⁵ S/cm or higher, ensuring low resistance and minimal signal loss.

● Fine Printing Adaptability

The paste's fineness can be controlled to ≤8μm, supporting 30μm-level line printing, meeting the high-precision multi-layer structure requirements.

● Excellent Co-firing Compatibility

Matches the shrinkage rate of ferrite dielectric materials, avoiding cracking or delamination during sintering and enhancing product reliability.

● Environmentally Friendly and Safe

Complies with lead-free and cadmium-free environmental standards, suitable for export electronic products.

Application Areas

Mainly used for the internal electrode manufacturing of multi-layer chip inductors (MLCI), high-frequency inductors, and magnetic beads. It is widely applied in signal processing and power conversion modules in high-frequency circuits such as smartphones, communication base stations, and automotive electronics.

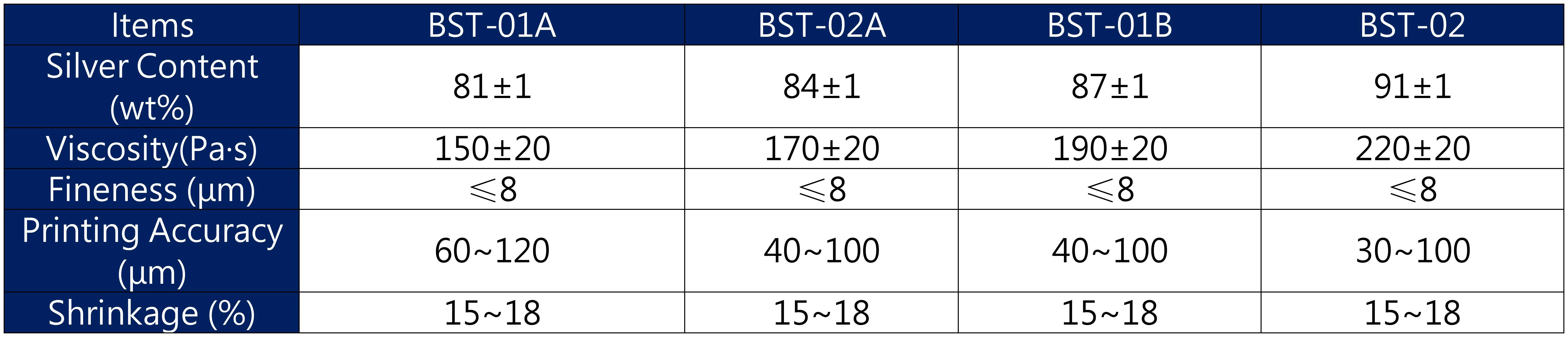

Technical Specifications

Inductor Inner Electrode Silver Termination Paste High Conductivity
