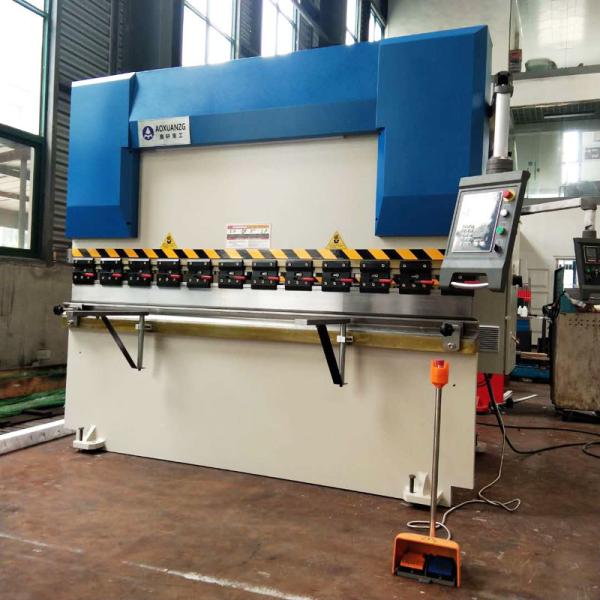

CNC Hydraulic Torsion Bar Press Brake High Accuracy 125T 2500MM
CNC Hydraulic Torsion Bar Press Brake High Accuracy 125T 2500MM
CNC Hydraulic Torsion Bar Press Brake High Accuracy 125T 2500MM
CNC Hydraulic Torsion Bar Press Brake High Accuracy 125T 2500MM
CNC Hydraulic Torsion Bar Press Brake High Accuracy 125T 2500MM
CNC Hydraulic Torsion Bar Press Brake High Accuracy 125T 2500MM
Specifications
Brand Name :
AOXUANZG
Model Number :
WC67Y-125T/2500
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
$8000-$19000/unit
Payment Terms :
L/C, T/T, Western Union, D/P, D/A
Supply Ability :
500sets/Year
Delivery Time :
20-30 days
Packaging Details :
Standard export packing
Controler :
DA41S
Pressure :
1250kn
Length :
2500mm
Throat Depth :
320mm
Stroke :
140mm
Max. Open Height :
395mm
Strokes times :
≥8 times/min
Motor :
7.5kw
Description
High Accuracy 125T 2500MM CNC Hydraulic Press Brake Machine On Sale
NC Press brake series of Hydraulic Press Brake are affordable and versatile with many features normally found on more ranges. They are the ideal choice for tasks such as box folding, tread plates and heavy duty usage, bringing adaptability and versatility without the hefty price tag.

Technical Parameters:

​

Model Nominal pressure (KN) Worktable Length (mm) Columns Distance (mm) Throat Slider Max Main Dimension
Depth Stroke Open motor L x W x H
(mm) (mm) height Power (mm)
(mm) (KW)
WC67Y/K-30/1600 300 1600 1280 200 80 190 3 1700×900×1650
WC67Y/K-30/2000 300 2000 1280 200 80 190 3 1700×900×1650
WC67Y/K-40/2500 400 2500 1900 280 100 320 5.5 2600×1100×1900
WC67Y/K-63/2500 630 2500 1900 350 170 380 5.5 3100×1450×2050
WC67Y/K-80/3200 800 3200 2700 350 170 380 7.5 3500×1550×2100
WC67Y/K-100/3200 1000 3200 2700 400 200 420 7.5 3500×1580×2400
WC67Y/K-160/3200 1600 3200 2700 400 200 420 11 3500×1650×2550
WC67Y/K-200/3200 2000 3200 2700 400 200 420 15 3500×1680×2550
WC67Y/K-250/3200 2500 3200 2700 400 200 420 15 3500×1700×2600
WC67Y/K-320/3200 3200 3200 2700 400 200 420 22 3500×1800×2730
WC67Y/K-400/4000 4000 4000 3500 500 320 600 30 4300×2450×3500
WC67Y/K-500/5000 5000 5000 3900 500 320 600 37 5400×2810×4300
WC67Y/K-500/6000 5000 6000 4900 500 320 600 37 6500×2810×4300
WC67Y/K-500/7000 5000 7000 4900 500 320 600 37 7500×2810×4900
WC67Y/K-600/5000 6000 5000 3900 500 320 600 45 5500×2910×4900
WC67Y/K-600/6000 6000 6000 4900 500 320 600 45 6500×2910×5100
WC67Y/K-600/7000 6000 7000 5900 500 320 600 45 7500×2910×5200
WC67Y/K-800/6000 8000 6000 4900 600 400 600 55 6500×2750 ×5300
WC67Y/K-800/8000 8000 8000 6900 600 400 600 55 8500×2750×5900
WC67Y/K-1000/6000 10000 6000 4900 600 400 600 2×37 6500×2800×5600
WC67Y/K-1000/8000 10000 8000 6900 600 400 600 2×37 8500×2800×6100
WC67Y/K-1000/10000 10000 10000 8000 600 400 600 2×37 10500×2800×5850
WC67Y/K-1200/6000 12000 6000 4900 600 400 800 2×37 6500×3100×5850
WC67Y/K-1200/8000 12000 8000 6900 600 400 800 2×37 8500×3100×7150

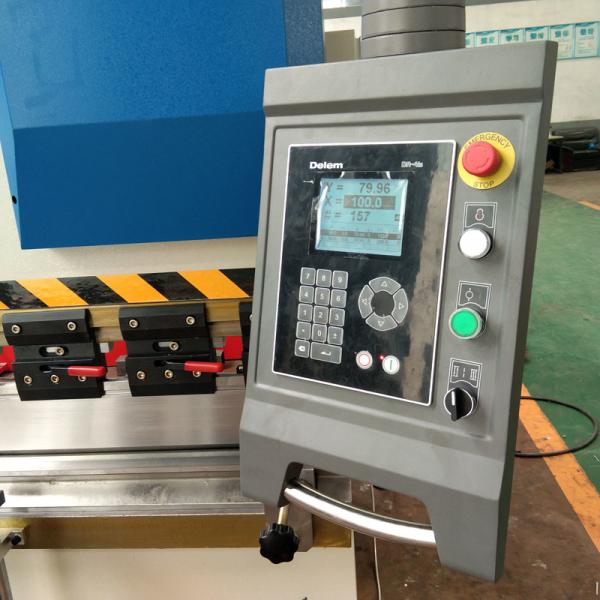

Controller:

Delem DA41S

CNC Hydraulic Torsion Bar Press Brake High Accuracy 125T 2500MM

CNC Hydraulic Torsion Bar Press Brake High Accuracy 125T 2500MM

Details:

CNC Backgauge
The Press Brake Backgauge plays an important in the machine’s everyday use press brake are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.
CNC Hydraulic Torsion Bar Press Brake High Accuracy 125T 2500MM

Standard Upper tools and Down die
Brand: Aoxuanzg
Press brake Upper Bending tooling adopts segmented tooling. we can sperate the whole length into pieces according to your request.

CNC Hydraulic Torsion Bar Press Brake High Accuracy 125T 2500MM

For more information, please contact me (^o^)/~

CNC Hydraulic Torsion Bar Press Brake High Accuracy 125T 2500MM
