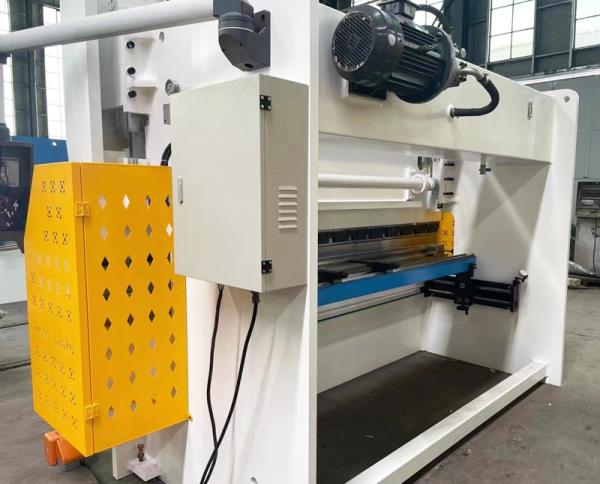

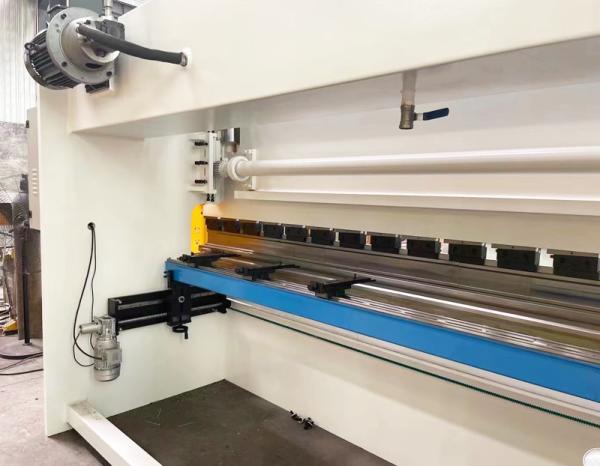

Hydraulic Press Brakes 125T 3200mm
Hydraulic Press Brakes 125T 3200mm
Hydraulic Press Brakes 125T 3200mm
Hydraulic Press Brakes 125T 3200mm
Hydraulic Press Brakes 125T 3200mm
Hydraulic Press Brakes 125T 3200mm
Specifications
Brand Name :
AOXUANZG
Model Number :
WC67Y-125T/3200
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
$7995-$8450/unit
Payment Terms :
L/C, T/T, Western Union, D/P, D/A
Supply Ability :
500sets/Year
Delivery Time :
20-30 days
Packaging Details :
Standard export packing
Material :
Metal plate
Working type :
Hydraulic type
System :

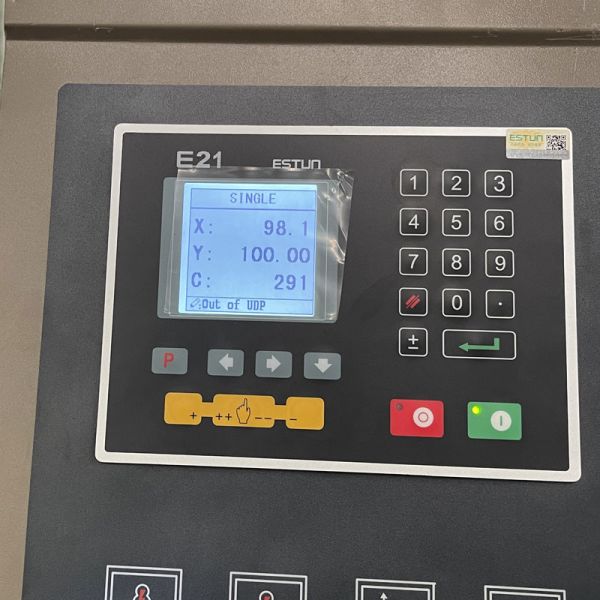

E21 controller
Nominal Pressure :
1250KN
Between Housings :
2510mm
Throat Depth :
320mm
RAM Stroke :
140mm
Strokes :
≥8 times/min
Main Motor :
7.5kw
Machine Net Weight :
6T
Description
Italy NC E21 System Hydraulic Sheet Metal Bender Press Brakes 125T 3200mm
NC PRESS BRAKE MACHINE
The NC series of Hydraulic Press Brake are affordable and versatile with many features normally found on more ranges. They are the ideal choice for tasks such as box folding, tread plates and heavy duty usage, bringing adaptability and versatility without the hefty price tag.

Features:
1. Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
2. Hydualic top-drive, steadiness and reliability. Mechanical stop, steel torsion bar maintain synchronization, high precision.
3. Motorize-adjustinf device of backgauge and rams stroke, fine adjusting by handwheel, numberical display.

Hydraulic Press Brakes 125T 3200mmHydraulic Press Brakes 125T 3200mm

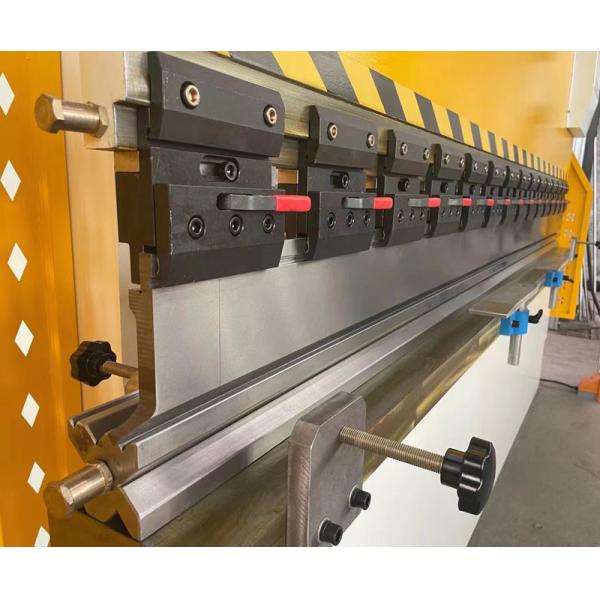

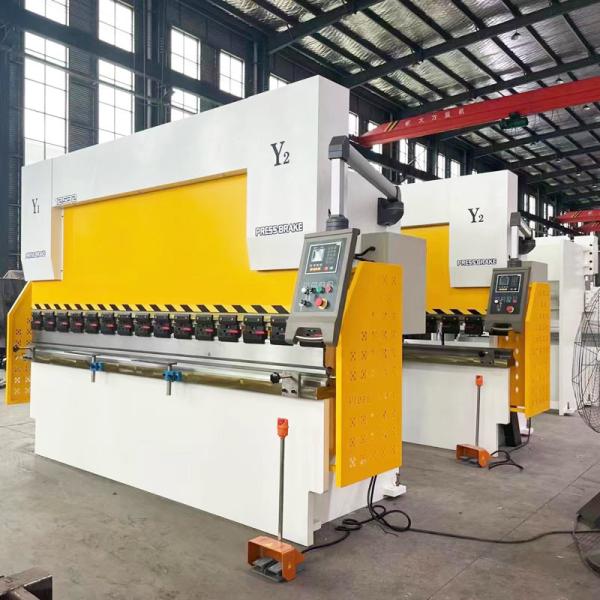

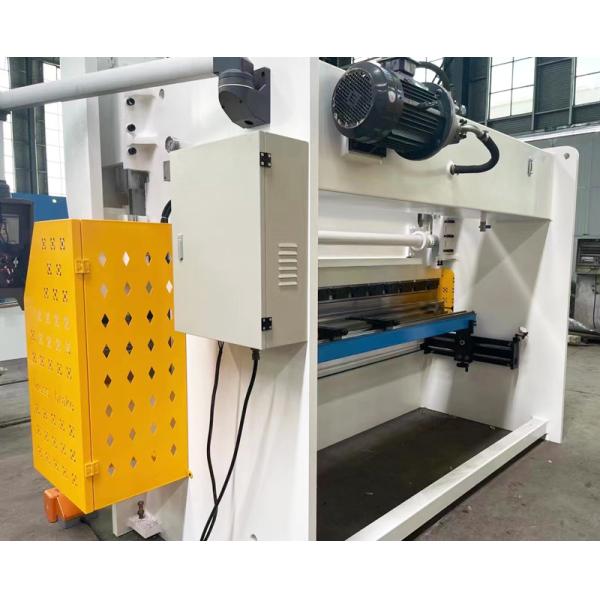

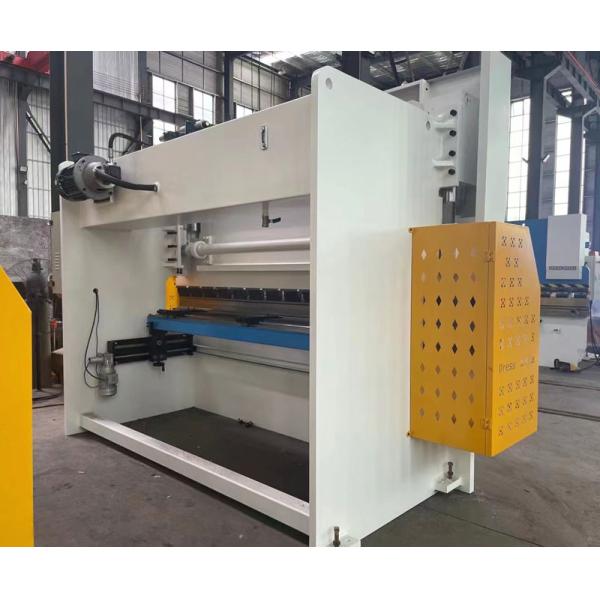

Details:

Hydraulic Press Brakes 125T 3200mm

Hydraulic Press Brakes 125T 3200mm

Hydraulic Press Brakes 125T 3200mm


Technical Parameters:
​

Model Nominal pressure (KN) Worktable Length (mm) Columns Distance (mm) Throat Slider Max Main Dimension
Depth Stroke Open motor L x W x H
(mm) (mm) height Power (mm)
(mm) (KW)
WC67Y/K-30/1600 300 1600 1280 200 80 190 3 1700×900×1650
WC67Y/K-30/2000 300 2000 1280 200 80 190 3 1700×900×1650
WC67Y/K-40/2500 400 2500 1900 280 100 320 5.5 2600×1100×1900
WC67Y/K-63/2500 630 2500 1900 350 170 380 5.5 3100×1450×2050
WC67Y/K-80/3200 800 3200 2700 350 170 380 7.5 3500×1550×2100
WC67Y/K-100/3200 1000 3200 2700 400 200 420 7.5 3500×1580×2400
WC67Y/K-160/3200 1600 3200 2700 400 200 420 11 3500×1650×2550
WC67Y/K-200/3200 2000 3200 2700 400 200 420 15 3500×1680×2550
WC67Y/K-250/3200 2500 3200 2700 400 200 420 15 3500×1700×2600
WC67Y/K-320/3200 3200 3200 2700 400 200 420 22 3500×1800×2730
WC67Y/K-400/4000 4000 4000 3500 500 320 600 30 4300×2450×3500
WC67Y/K-500/5000 5000 5000 3900 500 320 600 37 5400×2810×4300
WC67Y/K-500/6000 5000 6000 4900 500 320 600 37 6500×2810×4300
WC67Y/K-500/7000 5000 7000 4900 500 320 600 37 7500×2810×4900
WC67Y/K-600/5000 6000 5000 3900 500 320 600 45 5500×2910×4900
WC67Y/K-600/6000 6000 6000 4900 500 320 600 45 6500×2910×5100
WC67Y/K-600/7000 6000 7000 5900 500 320 600 45 7500×2910×5200
WC67Y/K-800/6000 8000 6000 4900 600 400 600 55 6500×2750 ×5300
WC67Y/K-800/8000 8000 8000 6900 600 400 600 55 8500×2750×5900
WC67Y/K-1000/6000 10000 6000 4900 600 400 600 2×37 6500×2800×5600
WC67Y/K-1000/8000 10000 8000 6900 600 400 600 2×37 8500×2800×6100
WC67Y/K-1000/10000 10000 10000 8000 600 400 600 2×37 10500×2800×5850
WC67Y/K-1200/6000 12000 6000 4900 600 400 800 2×37 6500×3100×5850
WC67Y/K-1200/8000 12000 8000 6900 600 400 800 2×37

8500×3100×7150


Packing Detail:
Each Hydraulic Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Delivery Detail:
Shipped in 30 days after payment
​Hydraulic Press Brakes 125T 3200mm

Factory

Hydraulic Press Brakes 125T 3200mm
