Specifications
Brand Name :
Anysort
Model Number :
6000T
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
5000 sets per year
Delivery Time :
15 working days
Packaging Details :
Wooden Box
Model :
6000T
Capacity :
≤1150kg/h
Sorting Accuracy :
≥99
Product Power :
3.6kw
Dimension(L*W*H) :
2730*2110*2830mm
Weight :
1600kg
Description

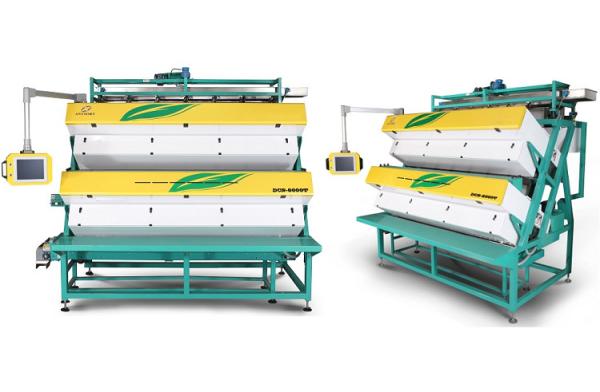

Multifunction Green Tea Color Sorter Black Tea Color Sorting Machine


Color sorter uses intelligent camera sensor for sorting and grading by different colors, shape and size of raw material. Color sorter machine can be applied in field of grain, rice, tea nut, bean, plastic, ore sorting,grading materials and removal of impurity. Color sorer is also named as optical sorter, color sorting machine, spectrum sorting machine and color separation machine.

Anysort Advantages:

1. Anysort,founded in 1999,has been specialized in color sorter manufacturing for over 21 years, initiated new era of cloud technology,explored future development of color sorter.

Anysort is always dedicated to developing cutting-edge technology and has been awarded a number of patent honors till now.

2. AI+Multidimensional space algorithm can accurately identify subtle shape differences to meet fine classification requirements and get good shape sorting effect.

3. Global initiative hawkeye recognition technology combined with cloud image high-speed capture and processing technology can precisely recognize tiny spot, slight color difference and some other impurities that normal color sorter cannot recognize. It perfectly realizes precise classification and optimized carryover ratio.

4. Online Engineering service is always available while providing installation and after-sale service locally in all countries.

5. intelligent high-frequency solenoid valve with high sorting accuracy, ultra-low air consumption and high switching frequency realizes optimized c
arryover ratio. Its perfect self-recovery system ensures low maintenance cost and long lifetime over 10 billion times.

Technical Parameters:

Model

Throughput

(kg/h)

Sorting Accuracy

(%)

Air Pressure
(mpa)

Power (kw)

Power Supply

Dimension

L×W×H(mm)

Weight

(kg)

TQS1 ≤160 ≥99 ≥0.4 0.5 220V/50Hz 835*1480*1450 331
TQS2 ≤220 ≥99 ≥0.4 0.6 220V/50Hz 1270*1480*1450 446
DCS-2000T ≤480 ≥99 0.5~0.8 2.0 380V/50HZ 1280*2050*2830 700
DCS-4000T ≤780 ≥99 0.5~0.8 2.5 380V/50HZ 1870*2140*2686 1160
DCS-5000T ≤900 ≥99 0.5~0.8 3.0 380V/50HZ 2360*2110*2830 1400
DCS-6000T ≤1150 ≥99 0.5~0.8 3.6 380V/50HZ 2730*2110*2830 1600

Remarks: Subject to different raw materials and different raw material contamination ratio, parameters listed in above table will vary,which are references for you choosing a suitable model.

Examples of Sorting:
1150kg/h Automated Tea Color Sorter Machine With High Frequency Ejectors
