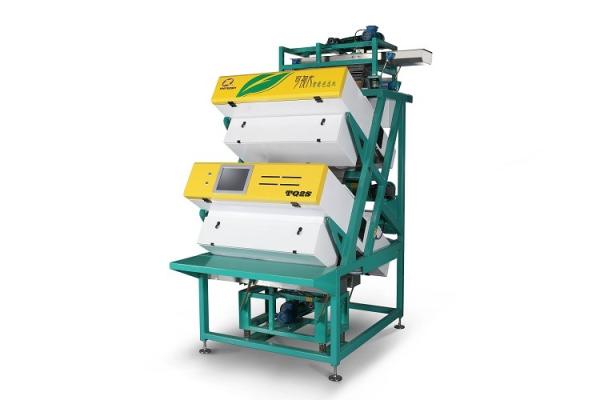

LED Optical Sensor Tea Color Sorter Machine With Hawkeye Camera
LED Optical Sensor Tea Color Sorter Machine With Hawkeye Camera
Specifications
Brand Name :
Anysort
Model Number :
TQ2S
Certification :
CE Certification
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, Western Union, T/T
Supply Ability :
5000 sets per year
Delivery Time :
15 working days
Packaging Details :
Wooden Box
Product Capacity :
≤350 kg/h
Sorting Accuracy :
≥99%
Power :
2.1kw
Dimension(L*W*H) :
1600*2100*2900mm
Weight :
960kg
Description

Intelligent Control Tea Colour Sorter / High Precision Color Sorter

Features of Tea Color Sorters:

1. They are equipped with high-precision image sensors and professional image processors to make image processing more accurate and efficient;

2. They have strong anti-interference performance, good stability, and simpler and novel structure;

3. With the double-layer design, they can effectively reduce the rate of spoiled products and improve tea purity, applicable to the color sorting of different kinds of tea;

4. They provide humanized operation interface to make operation and learning easier, and they have a long service life of more than 1 billion cycles;

5. With advanced programmable chips for signal processing and strong real-time performance, they can implement differential coefficient processing and integrating processing on signals. What's more the area for color sorting can also be set freely.

Technical Parameters:

Model

Throughput

(kg/h)

Sorting Accuracy

(%)

Air Pressure
(mpa)

Power (kw)

Power Supply

Dimension

L×W×H(mm)

Weight

(kg)
TQ2 ≤220 ≥99 0.5~0.8 4.0 380V/50HZ 1280*2050*2830 800
TQ2S ≤350 ≥99 0.5~0.8 2.1 380V/50HZ 1600*2100*2900 960
DCS-2000T ≤480 ≥99 0.5~0.8 2.0 380V/50HZ 1280*2050*2830 700
DCS-4000T ≤780 ≥99 0.5~0.8 2.5 380V/50HZ 1870*2140*2686 1160
DCS-5000T ≤900 ≥99 0.5~0.8 3.0 380V/50HZ 2360*2110*2830 1400
DCS-6000T ≤1150 ≥99 0.5~0.8 3.6 380V/50HZ 2730*2110*2830 1600
T2 ≤780 ≥99 0.5~0.8 2.5 380V/50HZ 1870*2110*2830 1160
T3 ≤1150 ≥99 0.5~0.8 3.2 380V/50HZ 2730*2110*2830 1600

Remarks: Subject to different raw materials and different raw material contamination ratio, parameters listed in above table will vary,which are references for you choosing a suitable model.

Color Sorter Application Fields:

Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice

Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea

Tea: green tea/black tea/dark tea/white tea/ yellow tea

Cereals: corn/barley/wheat/oat/sesame/malt

Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed

Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio

Dehydrated Vegetables: pepper/garlic flake/carrot granule/onion/cabbage

Industrial Goods: quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl

Economic Crops:raisin/medlar/lily/red date/shrimp bran/tobacco/agaric


Sorting Examples:

LED Optical Sensor Tea Color Sorter Machine With Hawkeye Camera
