Specifications
Delivery Time :
5-8 Days
Operating temperature: :
–30°C ~ +70°C (Compliant with GJB1621.7A-2006)
Weight: :
≤ 300 g
Model Number :
RSM04
GNSS signal reception bands: :
BDS-B1I, GPS-L1, GLONASS-L1, Galileo-E1
MOQ :
1
Power-on startup time: :
30 s
Standby: :
≤5 W
Supply Ability :
5000
GNSS synchronization time: :
150 s
Certification :
CE
Power adjustment range: :
80 dB
Place of Origin :
China
Maximum operational distance: :
2 km(Actual distance may vary depending on transmitting antenna specifications, electromagnetic environment, and UAV model.)
Packaging Details :
Carton
Input voltage: :
DC 9 – 18 V
Dimensions (L × W × H): :
116 × 74 × 19 mm
Brand Name :
Roviyno
Price :
3,650
Product Name: :
4 Frequency Point Navigation Signal Source Module
Maximum transmission: :
≤9 W
Description

Navigation Signal Source Module Drone Position Spoof- Spoofing Module

  • Product introduction

This module simulates real-time GPS, GLONASS, BDS, and Galileo signals to spoof drone navigation receivers. It enables precise position, velocity, and time manipulation for targeted diversion, hovering, forced landing, or takeoff prevention.Controlled via communication protocols or external buttons, it features one-click signal generation. Its compact, lightweight, and highly integrated design makes it ideal for handheld counter-drone systems. Perfect for petrochemical, power, law enforcement and security defense..

Navigation Signal Source Module Drone Position Spoofing Module Real Time

Main Function

Ø Supports signal reception and simulated transmission for common frequencies of the four major global navigation satellite systems.

Ø Synchronization with satellite time and ephemeris data, with automatic suppression of co-frequency interference.

Ø Capable of performing navigation spoofing against UAVs relying on GNSS positioning, enabling functions such as:

Ø Forced landing, Direction guidance (drone diversion), Take-off prohibition, GNSS signal interference

Ø Supports control via external keypad module or communication protocol, including the following operation modes: Signal ON/OFF,Navigation satellite signal interference,Direction guidance (drone diversion),No-fly zone mode, Circular motion mode, Crash mode

Ø Supports connection to an external direction-finding module, or direction input via communication protocol. When direction guidance is enabled, the UAV can be guided to move forward, backward, left, or right.

Ø Supports connection of external indicator LEDs to display the operating status of the module.

Table 2.1 Main Functions of the Product

No.

Satellite System

Band

Center Frequency (MHz)

Max Output Power

1

BDS

B1I

1561.098

≥7 dBm

2

GPS

L1 C/A

1575.42

≥7 dBm

3

GLONASS

L1

1598.0625 ~ 1605.375

≥7 dBm

4

Galileo

E1

1575.42

≥7 dBm

Supports effective navigation deception for multiple drones, including those from Autel and DJI.

Serial Number Drone brand Drone Model
1 Autel Autel 4T
2 Autel V3
3 AutelLite
4 DJI Mavic 4 Pro,Mavic 3 Pro,Mavic 2 Pro etc.
5 Air3,Air2s,Air2 etc.
6 Mini4P,Mini3,Minise etc.

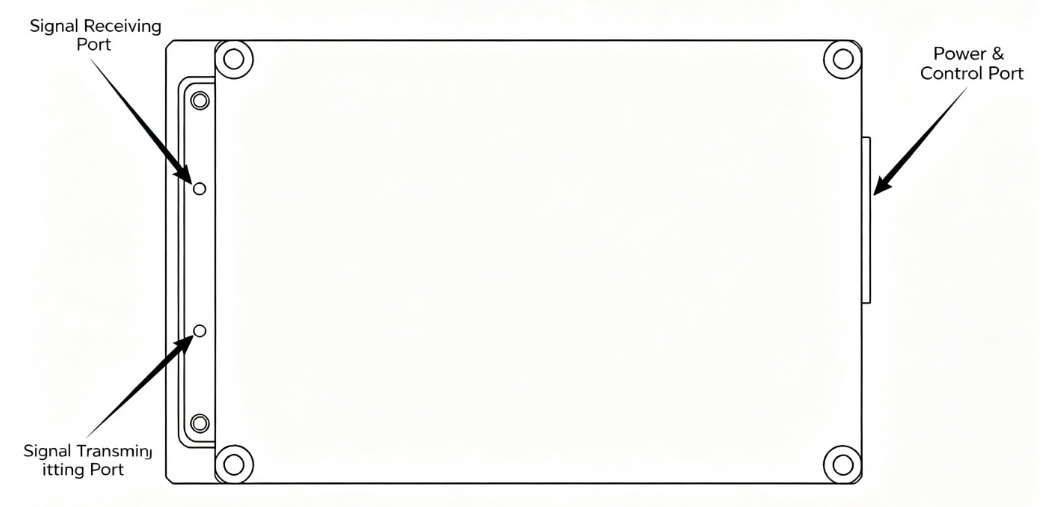

Schematic diagram of product interface

Navigation Signal Source Module Drone Position Spoofing Module Real Time

Standard Package Contents

No.

Item

Quantity

Specification

Hardware

1

Portable Navigation Spoofing Module

1

RSM04

2

GNSS Signal Receiving Antenna

1

Optional

3

Direction-Finding Module

1

Optional

Documentation

4

User Manual

1

Electronic version

5

Communication Protocol

1

Electronic version

6

Factory Test Report

1

Paper version

7

Certificate of Conformity

1
