Vehicle Mounted Unmanned Aerial Vehicle Detection And Control Integrated Equipment

The VDC1 is a comprehensive, vehicle-mountable anti-drone system that integrates passive RF detection and active jamming capabilities into a single, compact unit. Designed for mobile deployment, it effectively detects, identifies, and neutralizes unauthorized drones within a range of 1–5 km in urban environments—all while operating from a moving platform.

Key Features

Passive Detection

One of the core strengths of this system lies in its passive detection capability. When UAVs and their remote controllers are active for communication, the system operates exclusively in a passive mode, receiving signals without emitting any electromagnetic radiation. This ensures robust confidentiality, minimizing the risk of detection or interference from potential adversaries.

Dead Angle‑Free Detection

Utilizing the unique properties of radio waves, the system achieves 360‑degree coverage, eliminating any detection blind spots. This ensures that drones approaching from any direction can be promptly identified and addressed, maintaining an impenetrable security perimeter.

Automatic Operation

The system is designed for seamless automatic operation. Once the automatic defense mode is activated, it can independently discover, identify, and counter unauthorized UAVs without requiring manual intervention. This reduces the operational workload and ensures a rapid response to security threats.

High‑Power Intelligent Jamming

The system employs a high‑jamming module to effectively disrupt the communication between drones and their controllers. In scenarios where drones cannot be recognized or verified, this mode is automatically engaged to neutralize the threat. The intelligent aspect of this feature ensures that jamming is precise and targeted, minimizing collateral impact.

Advance Warning

The system's advanced detection capabilities enable it to identify and recognize UAV remote controls as soon as they are powered on. This provides a significant advance warning, allowing security personnel to take preemptive measures before the drone even takes off, further enhancing overall security.

Radiation and Interference

Despite its powerful capabilities, the system is designed with precision RF transmission, ensuring low radiation levels and no interference with surrounding electronic equipment. This makes it an environmentally friendly solution that can be deployed in close proximity to sensitive electronic systems without compromising their functionality.

Perfect Self‑Protection Mechanisms

The system incorporates multiple self‑protection features, including overheat protection, overcurrent protection, high and low voltage protection, and VSWR (Voltage Standing Wave Ratio) protection. These mechanisms ensure the system and reliably, even under extreme conditions, extending its lifespan and reducing maintenance requirements.

Charactrristic

1. Passive Detection: The detection unit does not actively emit electromagnetic signals and causes no interference.
2. Detection and Jamming Integration: The detection and countermeasure units are linked, enabling automatic identification and striking of targets.
3. Comprehensive UAV Model Recognition: It can accurately identify common brand models such as DJI, Autel, and Hubsan, as well as self‑made racing drones, WiFi‑enabled drones, analog image transmission drones, and digital image transmission drones.
4. Target Positioning: It can real‑time locate the positions of UAVs and operators (for some common UAV models).
5. Unique Identity Recognition: It can identify the unique serial number of UAVs.
6. Blacklist and Whitelist: It can effectively distinguish between cooperative and non‑cooperative targets.
7. Counter‑measurement Capabilities: The equipment has two functions for UAV disposal, namely driving away and forcing down.
8. Integrated Design: The detection and countermeasure modules are integrated into one, with a compact size.

Key Technical Specifications:

1.Detection Frequency Range: 100MHz〜6GHz

2.Airspace Coverage: Horizontal Coverage:0°～360°

Pitch Coverage:-90°～90°

3.Detection Radius: 1-5km (varies by environment and drone model)

4.Direction Finding Accuracy: 3°(RMS)

5.Positioning Accuracy: 5m

6.Countermeasure Frequency Band : 800Mhz/900Mhz/1.2Ghz/1.4Ghz/1.5Ghz/2.4Ghz/5.8Ghz

7.Interception Radius: ≥3km

8.Interception Response Time: ≤5s

9.Total Power Consumption: ≤2500W

10.Network Interfaces: RJ45 BD24

11.Measurement: 1702x1059x670mm

12.Weight: ≤90kg

13.IP rate: IP 65

14.Working temperature: -40~+60℃

15.Humidity: 10~95%(25℃)

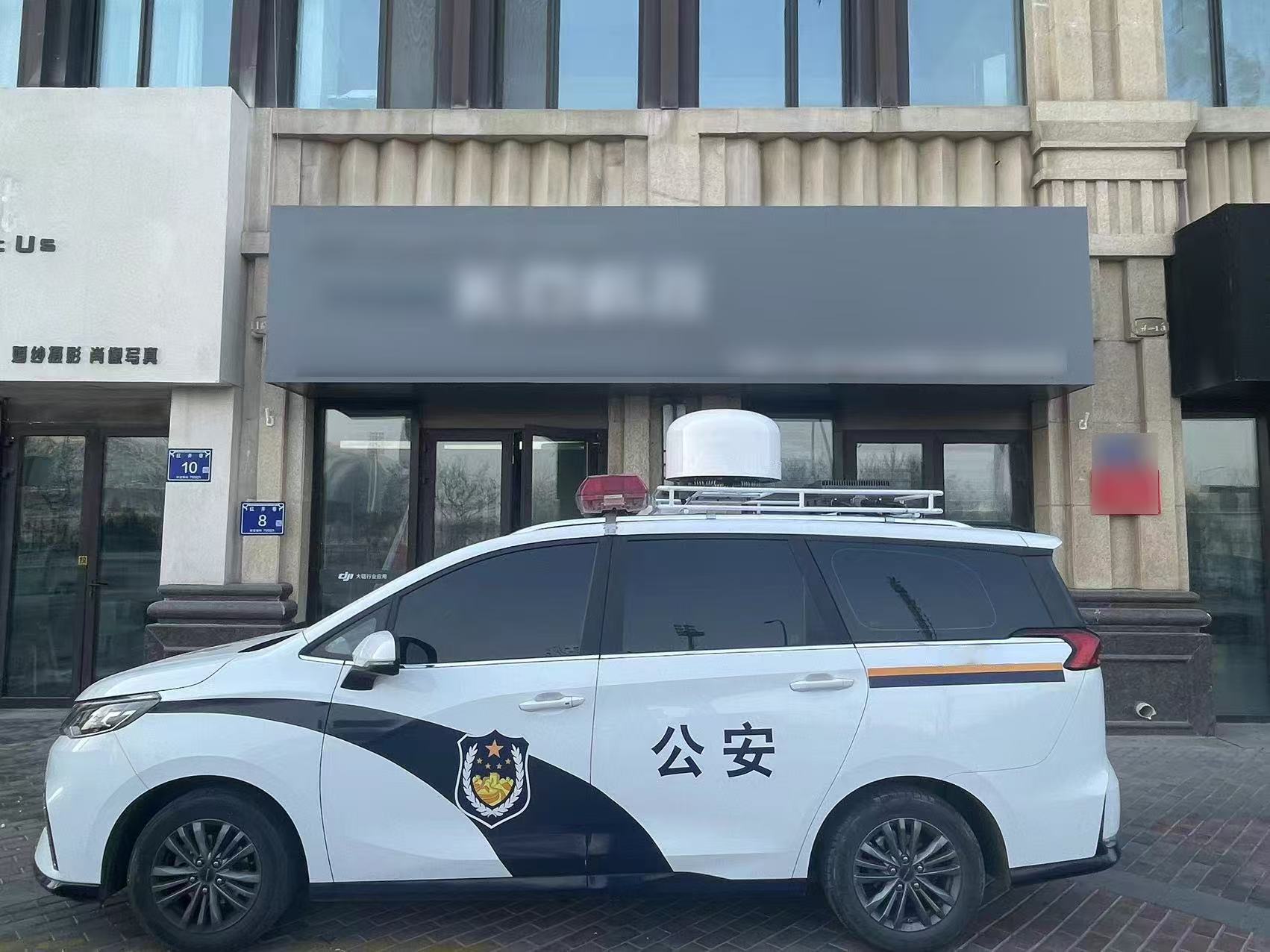

16.Surveillance and Control: Vehicle-Mounted Platform
