10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
Specifications
Delivery Time :
7-10 working days
Alarm Mode :
Sound, web display
Model Number :
T1CP-J
Detection Range: :
Up to 5 km
Payment Terms :
T/T
FPV Signal Detection: :
Supports FPV video transmission signal interception and analysis
Supply Ability :
<100 units 30 working days
Countermeasure Range :
1–3 km
MOQ :
1
Fast Response: :
≤3 seconds
Price :
$3,999/pc~$45,00/pc
Multi-Target Detection: :
≥10 UAVs simultaneously
Packaging Details :
Aluminum box
Power Input Voltage :
AC 220V
Brand Name :
Roviyno
Wideband RF Detection: :
100 MHz–6 GHz
Description

10/8/12/16-Channel 400-1100MHz 1.5g 2.4G 5.2g 5.8g Uav Flight Trajectory Acquisition Pilot Position Localization 10km Detection Range Fixed Anti Drone Jammer

Our anti-drone technology is designed to integrate seamlessly into existing security frameworks, offering a robust layer of protection. It includes advanced detection methods, quick response capabilities, and versatile countermeasures to ensure comprehensive airspace security. Achieve unmatched airspace security with our state-of-the-art UAV-defense system. Designed for precision and reliability, this advanced solution combines innovative drone detection and neutralization technology to safeguard critical infrastructure, high-profile events, and border regions.

Precision Interception, Tailor-Made
4–16 customizable frequency bands cover full remote-control, image-transmission & navigation links, accurately intercepting consumer, industrial, and FPV racing drones.
Portable & easy to deploy, ideal for event security, factory protection, venue safeguarding, and more. OEM/ODM supported; integrable with detection and decoy devices for an integrated detection-interception drone defense solution.
Drone Jammer Anti Drone frequency signal blocker
  • FLEXIBLE FREQUENCY CUSTOMIZATION

    Supports free selection of 4–16 frequency bands, covering the full links of remote control, image transmission, and navigation, and adapting to the interception needs of various drones.
  • GLOBALLY COMPLIANT DESIGN

    Power can be adjusted on demand, fully compliant with global radio management regulations, with zero risk of unauthorized use.
  • PRECISE & EFFICIENT PROTECTION

    Switchable omnidirectional/directional antennas, delivering 500–1500m protection coverage with zero interference to civilian signals.
  • PORTABLE & EASY DEPLOYMENT

    Integrated case design, suitable for event security, factory protection, and other scenarios, enabling quick mobile deployment.
  • HIGHLY EXPANDABLE COMPATIBILITY

    Supports OEM/ODM customization and can be integrated with detection and decoy devices to build an integrated detection-interception defense solution.

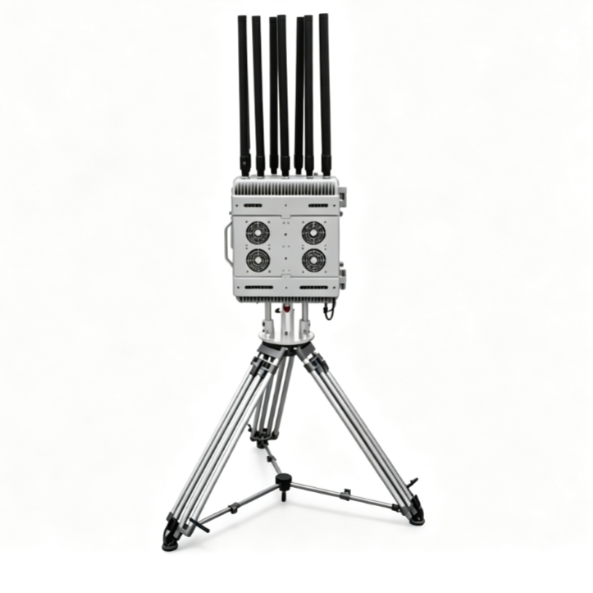

Product Appearance and Function Introduction
10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range 10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
Interface Description
No. Name Function
1 AC 220V Power Interface Connect to 220V AC power supply to power
2 LAN1 Network Port Can connect to a computer or linkage interference chassis via network cable
3 LAN2 Network Port Can connect to a computer or linkage interference chassis via network cable
4 Power Switch Control the power on/off of
5 Air Valve Port Balance the internal and external air pressure of
Interference Chassis
10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range 10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
Interface Description of Interference Chassis
No. Name Function
1 FAN1 Fan Interface Connect to the external cooling fan on one side of the chassis
2 LAN Network Port Connect to the detection unit for combined use
3 FAN2 Fan Interface Connect to the external cooling fan on one side of the chassis
4 Power Switch Control the power on/off of the chassis
5 AC 220V Power Interface Connect to AC 220V power supply via power adapter cable to power the chassis
6 Air Valve Port Used to balance the internal and external air pressure difference of the chassis
7 Antenna Interface Used to install and connect antennas of corresponding frequency bands
Product Performance Indicators
Detection Parameters
No Name Performance Indicator
1 Detection Type Mainstream commercial UAV models on the market such as DJI, Autel, FIMI, as well as FPV racing drones, DIY UAVs, etc.
2 Detection Frequency Range 100MHz～6000MHz
3 Detection Radius 1 ~ 5Km (depending on the on-site electromagnetic environment and UAV model)
4 Detection Response Time ≤3s
5 Detection Quantity ≥10 UAV sorties
6 Positioning Resolution Capability Support positioning of UAV, operator and return point, interception of FPV image transmission video
7 Positioning Error ≤10m
8 Alarm Mode Sound, web display
9 Power Input Voltage AC 220V
10 Communication Mode Ethernet cable
11 Heat Dissipation Mode Passive heat dissipation
12 Protection Grade IP65
Countermeasure Parameters
No Name Performance Indicator
Operating Frequency Band Power(±1dBm)
1 CH1 420 ~ 450MHz 47 dBm(50W)
2 CH2 700 ~ 840MHz 47 dBm(50W)
3 CH3 840 ~ 930MHz 47 dBm(50W)
4 CH4 1100 ~ 1300MHz 47 dBm(50W)
5 CH5 1300 ~ 1500MHz 47 dBm(50W)
6 CH6 1550 ~ 1610MHz 47 dBm(50W)
7 CH7 2400 ~ 2500MHz 50 dBm(100W)
8 CH8 5150 ~ 5300MHz 47 dBm(50W)
9 CH9 5700 ~ 5900MHz 50 dBm(100W)
10 Countermeasure Range 1 ~ 3km (depending on the on-site electromagnetic environment)
11 Power Input Voltage AC 220V
12 Communication Mode Ethernet cable
13 Heat Dissipation Mode Air cooling
14 Protection Grade IP65

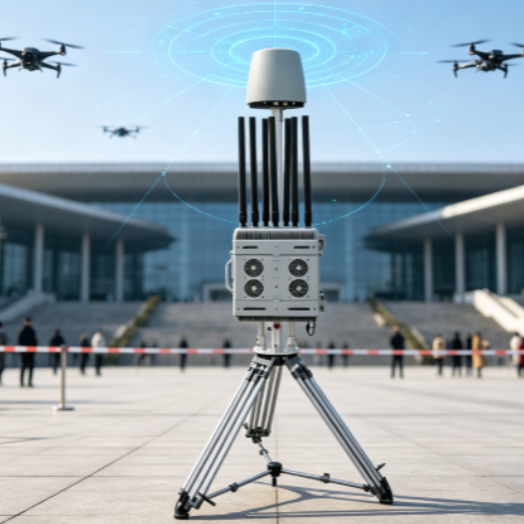

Application
10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
10 8 12 16 Channel 400-1100MHz Fixed Anti Drone Detection Jammer 5km Range
