Fixed Drone Detection Device With 70 MHz～8 GHz Full Band

Product Specificaiton

Product Overview

The Fixed UAV Detection & Defense Equipment is a professional fixed-site counter-UAV system designed for authorized defense, public safety, airport perimeter support, industrial security, critical infrastructure protection and high-security facility monitoring. It combines full-band drone detection across 70MHz–6GHz with coordinated omnidirectional and directional RF mitigation modules for authorized drone-defense operations.

Product function

1)TDOA Positioning: Networking multiple (≥3) devices using TDOA technology enables the tracking and positioning of various brands and models of unmanned aerial vehicles (drones).
2)Comprehensive Detection and Identification: Capable of identifying drone brand, model, frequency band, bandwidth, and other related information.
3)Multi-target Trajectory Tracking: Simultaneously locates and tracks multiple drones, displaying multiple drone flight trajectories concurrently.
4)drone Monitoring [1]: Capable of obtaining information within the monitoring range of drones, including serial numbers, models, positions (latitude, longitude, azimuth), speed, altitude, take-off points, return points, flight paths, remote controller positions (latitude, longitude, azimuth), and other related data.
5)SN Serial Number [2]: Capable of recognizing the unique serial number (SN) of drones to confirm their individual identity information.
6)Pilot Positioning [3]: A single device is capable of locating the pilot's position, displaying real-time information such as the pilot's (remote controller) location (latitude, longitude), azimuth, and distance from the device's position.
Note: [1]-[3] Effective for DJI OcuSync series video transmission drones.
7)Blacklist/Whitelist: Capable of distinguishing between cooperative and non-cooperative drones. When detecting cooperative drones, the device does not trigger an alarm and can be configured to mark these cooperative drones as trusted.
8)Intrusion Alert: When the device detects drone intrusion, it triggers either an audible or visual alarm.
9)Trajectory Playback: Supports playback of drone flight paths, assisting security personnel in analyzing historical drone flight data.
10)Detection Log: The detection log maintains a historical record of detections, including multi-dimensional information such as drone serial numbers, models, frequencies, and more.
11)Data Visualization and Analysis: Supports statistical analysis of drone detection and flight data, presenting visual representations such as heatmaps, line graphs, and other visualizations.
12)Electronic Maps: Supports switching between electronic maps, including options like AMAP Maps, Bing Maps, and Google Maps.
13)Multi-device Networking: The equipment can connect to a backend management platform, allowing multiple devices to network together, ensuring broad coverage across extensive areas.
14)Surveillance-Strike Coordination: Capable of integrating and networking with countermeasure or navigation deception devices, achieving surveillance-strike coordination within the defense and control zone.

Composition of the Product

The product mainly consists of three parts: equipment host, power adapter, and bracket, as illustrated in the table below:

KEY FEATURES & BENEFITS:

Full-Band UAV Detection:
• 70MHz–6GHz full-band scanning, detection and display
• Detection range ≥10km depending on operating conditions
• Detection response from drone power-on to reporting ≤10 seconds
• Horizontal detection angle up to 360°
• Direction-finding accuracy ≤±15° RMS under clean conditions

Integrated RF Defense Capability:
• Omnidirectional RF mitigation modules for wide-area coverage
• Directional RF mitigation modules for key frequency-band control
• Interference distance ≥3km depending on operating conditions
• Designed to defend against RF flight-control drones and FPV drones
• Supports analog image-transmission interference capability

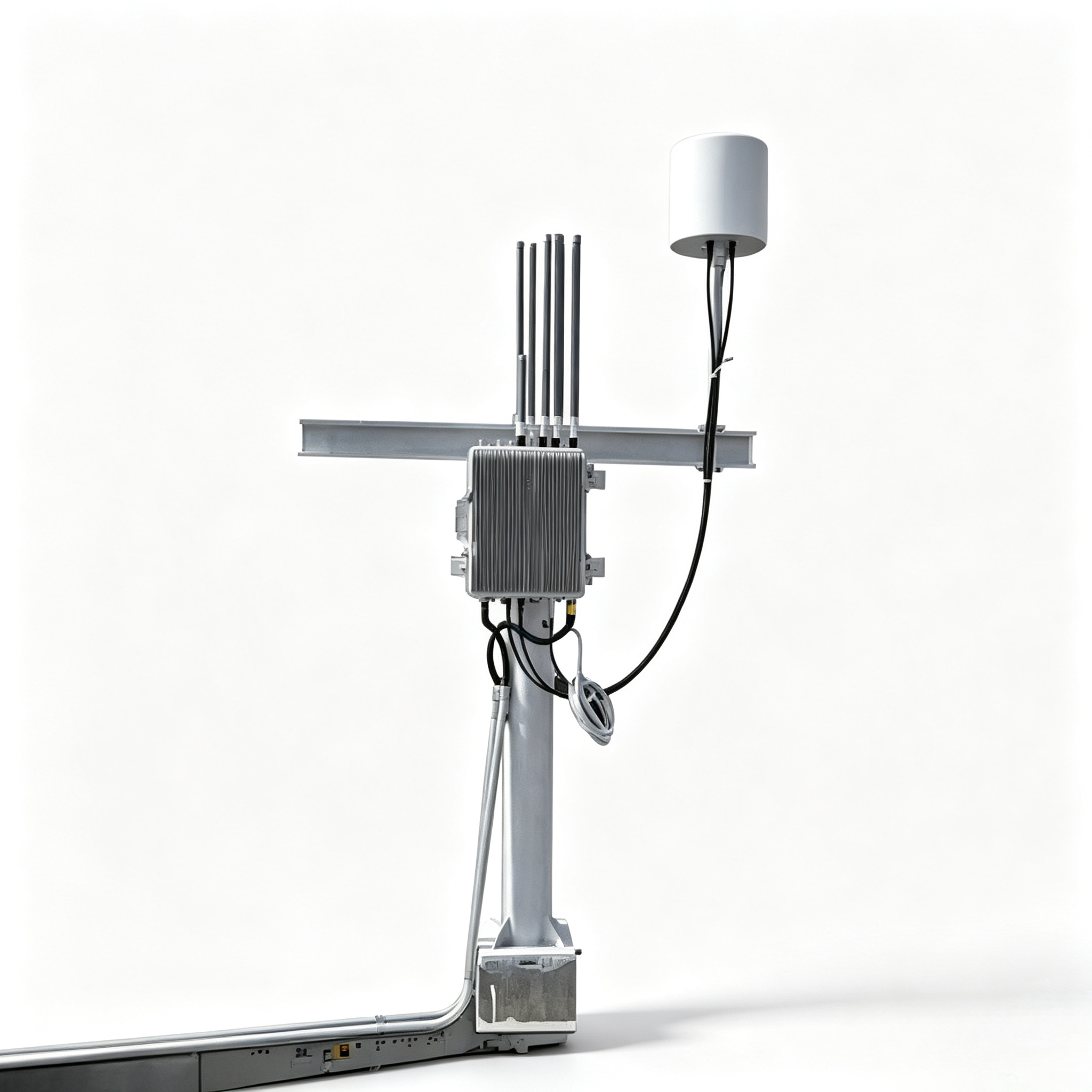

Fixed-Site System Architecture:
• Detection host for full-band UAV discovery and direction finding
• Two omnidirectional interference hosts, main and auxiliary
• Four directional interference hosts for four-side key-band mitigation
• Aviation aluminum fuselage for environmental adaptability

Scalability & Integration:
• Supports integration with radar, electro-optical and navigation deception systems
• Supports multi-equipment networking and backend command integration
• Built-in drone signal collection function for learning unknown signals
