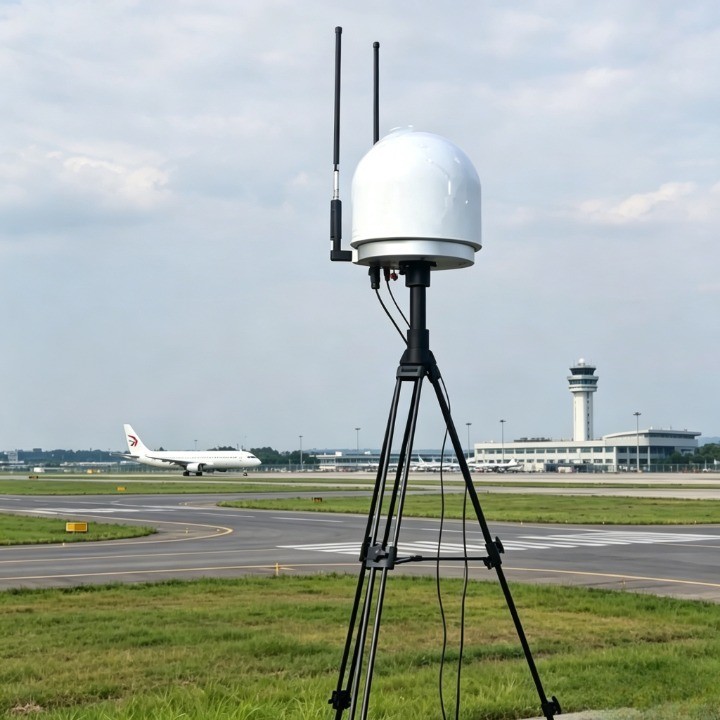

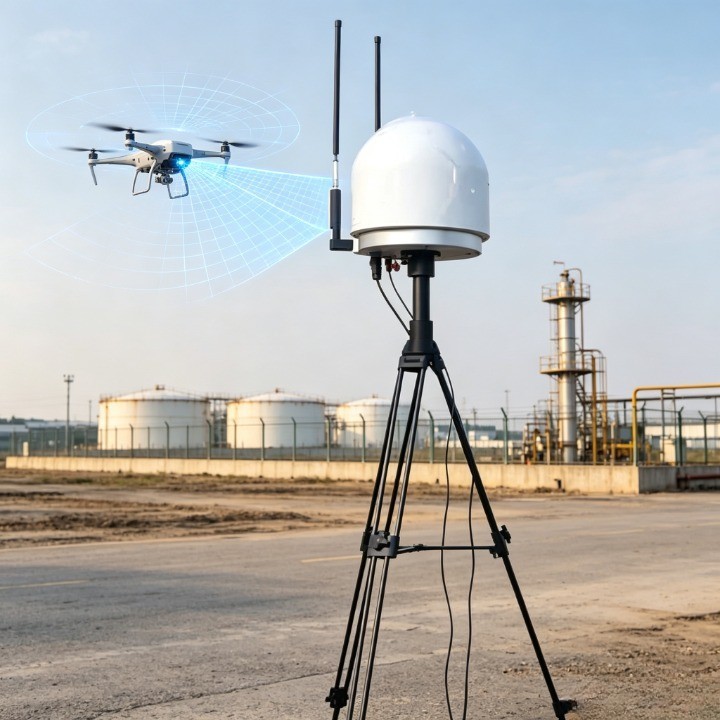

10km Full Band Scanning Detection Drone System DID And RID Positioning 70MHz-6GHz
10km Full Band Scanning Detection Drone System DID And RID Positioning 70MHz-6GHz
10km Full Band Scanning Detection Drone System DID And RID Positioning 70MHz-6GHz
10km Full Band Scanning Detection Drone System DID And RID Positioning 70MHz-6GHz
10km Full Band Scanning Detection Drone System DID And RID Positioning 70MHz-6GHz
10km Full Band Scanning Detection Drone System DID And RID Positioning 70MHz-6GHz
10km Full Band Scanning Detection Drone System DID And RID Positioning 70MHz-6GHz
10km Full Band Scanning Detection Drone System DID And RID Positioning 70MHz-6GHz
Specifications
Payment Terms :
T/T
Positioning distance :
DID ≥ 5 km, RID≥2 km (suburban line-of-sight environment, electromagnetic environment noise: -90～-95dB);
Model Number :
ZW11
Detection Range :
5km (line-of-sight environment, electromagnetic noise: -90 dB to -95 dB)
Price :
$27,799-$28,299
Weight :
≤17 kg
Certification :
CE
Key detection frequency bands :
433 MHz, 530 MHz, 750 MHz, 800 MHz, 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 3.3 GHz, 5.2 GHz, 5.8 GHz
MOQ :
1
Delivery Time :
7-10 working days
Overall power consumption :
≤100 W
Dimensions :
400 mm * 531 mm (diameter * height)
Supply Ability :
<100 units 30 working days
FPV video transmission detection :
≥1.5 km (Supports real-time video viewing, environmental line of sight, analog image transmission power ≥2.5 W)
Brand Name :
Roviyno
Detection Frequency :
Full-band 70 MHz - 6 GHz (including spectrum analysis function)
Packaging Details :
Aluminum box
Protection level :
IP66
Place of Origin :
China
Extended detection band :
6GHz-8GHz detection
Description

10km Full-band Scanning Detection Drone System And DID & RID Positioning

Product Introduction

ZW11 can detect and identify the type and electronic fingerprint of low-altitude, low-speed, small drones. Utilizing advanced Protocol Analysis Technology, the system decodes radio signals from remote control links and video transmissions to ensure high-accuracy identification. This enables early warning identification, location tracking, and provides precise intelligence information for subsequent defense and handling.

Product Feature
  1. Precision Protocol Decoding Utilizes advanced protocol analysis to identify unique UAV electronic fingerprints and serial numbers, enabling zero-false-alarm blacklist/whitelist management.
  2. Full-Spectrum Surveillance Continuous 70MHz–6GHz multi-band scanning covers all mainstream, DIY, and non-standard drone frequencies without blind spots
  3. Long-Range 360° Situational Awareness Provides omnidirectional 360° coverage with a detection radius of up to 10km, ensuring maximum early-warning lead time.
  4. Passive & Stealthy Detection A zero-emission, silent monitoring system that ensures zero interference with local communications and remains undetectable to intruders.
  5. Scalable Network Integration Supports seamless multi-node networking for unified command, ideal for large-scale urban defense and critical infrastructure protection.

10km Full Band Scanning Detection Drone System DID And RID Positioning 70MHz-6GHz10km Full Band Scanning Detection Drone System DID And RID Positioning 70MHz-6GHz

Product Specificaiton
Technical Parameter Specification
Detection frequency band 70MHz-6GHz full-frequency scanning, detection and display
Key detection frequency bands 800MHZ,900MHz,1.2GHz,1.4GHz,2.4GHz,5.2GHz,5.8GHz
Detection range ≥10km (Depends on working conditions)
FPV Video transmission detection 500MHz-6GHz full-frequency scanning, detection and display
Video transmission detection range ≥1.5km(Supports viewing real-time video)
Minimum height 0m
Azimuth range Horizontal: 360°,Pitch: 90°
Operation temperature -40°C~+60°C
Weight ≤15kg
Size 400mm*370mm(Diameter*Height)
Product selling points
  1. Long Detection Range: 3-10 km line-of-sight detection; 2-10 km DID/RID positioning; ≥1.5 km FPV video interception;
  2. Full-band detection coverage: 70 MHz--8 GHz full spectrum scanning, supports spectrum analysis;
  3. 360° omnidirectional monitoring: No blind zone, full azimuth coverage;
  4. Ultra-fast response: Drone detection alarm ≤5 seconds;
  5. High-Precision Positioning: ≤1 meter latitude/longitude accuracy with real-time trajectory tracking;
  6. Triple alarm mode: Sound + light + vibration real-time alert.
