Jammer Antenna Fixed-Mount Directional Panel Antenna
Jammer Antenna Fixed-Mount Directional Panel Antenna
Specifications
Brand Name :
FengQing
Model Number :
FQ2
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiated
Payment Terms :
L/C,T/T
Supply Ability :
1000pcs/month
Delivery Time :
In 5 work day
Packaging Details :
Box Meets Your Requirements
Product Type :
Fixed-Mount Directional Panel Antenna (Specialized for Drone Countermeasure)
Shell Material :
Reinforced ABS Material + Anti-Corrosion Coating
Protection Level :
IP65 (Waterproof and Dustproof)
Handheld Design :
The back of the antenna supports handheld use
Radio Frequency Cable :
Low - loss Radio Frequency Connecting Cable
Connector Adaptation Range :
Connector Adaptation Range Supports 0 - 6G Antenna Connectors
Appearance Color :
Two colors (black and white) available, silk - screen customization supported
Installation Method :
Pole installation (standard fixed clamps and pole brackets included), supporting auxiliary wall mounting
Operating Temperature Range :
-30℃ ~ +60℃
Storage Temperature Range :
-40℃ ~ +85℃
Connector Compatibility :
Supports mainstream RF connectors such as N-J and SMA-J (customizable)
Description
Jammer Antenna Fixed-Mount Directional Panel Antenna
Product Introduction

The fixed-mount directional panel antenna is designed for continuous prevention of unauthorized drone intrusion in critical locations including airports, military restricted areas, energy plants, government facilities, and large event venues. Featuring standard mounting hardware, this antenna provides stable installation on poles, walls, and monitoring masts while precisely targeting drone communication (2.4G/5.8G), navigation (1.5G), and special frequency bands (e.g., 800M/900M). With excellent performance characteristics including low standing wave ratio and high front-to-back ratio, it delivers reliable, all-weather signal interference for long-term security protection.

Jammer Antenna Fixed-Mount Directional Panel Antenna
Product Features

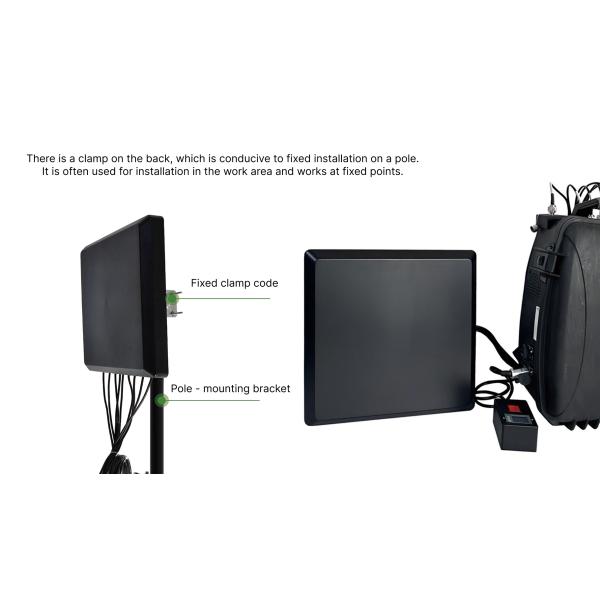

  • Strong Fixed Adaptability: Includes customized mounting hardware for poles (50-100mm diameter) with reinforced ABS housing featuring anti-corrosion coating for durable outdoor performance with minimal maintenance.
  • High Control Efficiency: Standing wave ratio ≤1.5 (select models) ensures minimal signal loss, while front-to-back ratio ≥20 enables precise directional interference without affecting non-target areas.
  • Multi-Frequency Coverage: Supports 3-6 frequency combinations covering 830-960MHz (industrial drones), 1560-1620MHz (navigation), 2400-2500MHz/5725-5850MHz (consumer drones), adaptable to various protection scenarios.
  • Extreme Environment Resistance: IP65-rated waterproof/dustproof construction operates in -30℃ to +60℃ temperatures, maintaining 24/7 protection through heavy rain, sandstorms, and temperature extremes.
Product Specifications
Model Frequency Band Gain Polarization Standing Wave Ratio Front-to-Back Ratio Dimensions Connector Applications

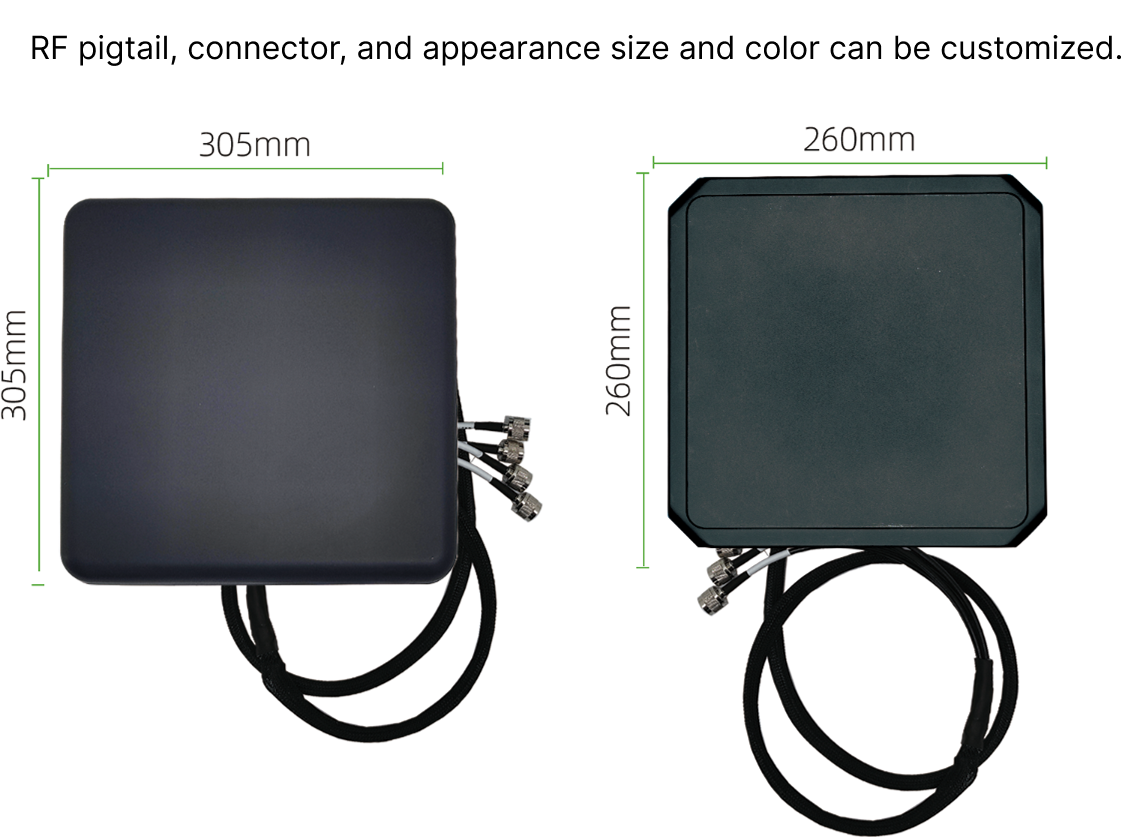

FQ2-1559-14D32WL4E 1560-1620MHz, 2400-2500MHz, 5640-5950MHz 14±1dBi Vertical (4 channels) ≤1.8 ≥22 320*320*35mm 4*N-J Airports, large venues
FQ2-9058-816D65AHW4B 830-950MHz, 1550-1620MHz, 2400-2500MHz, 5725-5850MHz 8-12dBi Vertical (4 channels) ≤1.8 ≥20 360*360*40mm 4*N-J Factories, industrial parks
FQ2-8659-816D65AHD5B 860-960MHz, 1100-1300MHz, 1570-1630MHz, 2400-2500MHz, 5100-5900MHz 8-14dBi Vertical + Horizontal (5 channels) ≤1.5 ≥23 400*400*45mm 5*N-J Military, energy facilities
FQ2-9358-514D65AHE6E (Standard) 880-960MHz, 1180-1280MHz, 1560-1620MHz, 2400-2500MHz, 5150-5350MHz, 5725-5850MHz 5-14dBi Vertical (6 channels) ≤1.8 ≥20 390*390*50mm 6*N-J Parks, scenic areas
FQ2-9358-514D65AHE6E (Compact) Same as standard model 5-13dBi Vertical (6 channels) ≤2.0 ≥18 260*260*40mm 6*N-J Space-constrained installations
Jammer Antenna Fixed-Mount Directional Panel Antenna
Shenzhen Fengqing Instrument Co., Ltd.

Crafted in China, Quality Forges Low-Altitude Security.

Our customer-first approach ensures comprehensive support:

  • Pre-sales: Custom solutions tailored to your requirements and budget
  • In-sales: Full technical support for installation, configuration, and training
  • After-sales: Rapid-response system including remote support and maintenance
