Jammer Antenna - Shock-Absorbing Drum Spring, External Omni-Directional FRP (For Backpack/Vehicle Suitcase Equipment)
Jammer Antenna - Shock-Absorbing Drum Spring, External Omni-Directional FRP (For Backpack/Vehicle Suitcase Equipment)
Specifications
Brand Name :
FengQing
Model Number :
FQ-O-S
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiated
Payment Terms :
L/C,T/T
Supply Ability :
1000pcs/month
Delivery Time :
In 5 work day
Packaging Details :
Box Meets Your Requirements
Structure and Dimensions :
Pipe Diameter: 25mm, 32mm Overall Dimensions: Φ25*900mm, Φ32*900mm Pipe Cap: 35mm, 28mm
Basic Performance :
Power Bearing Capacity: 100W (unified for all models) Voltage Standing Wave Ratio (VSWR): ≤1.5 Horizontal Beamwidth: 360°
Frequency Band and Gain :
Coverage Frequency Bands: 433M, 900M, 1.2G, 1.4G, 1.5G, 2.4G, 5.2G, 5.8G (a total of 8 major mainstream frequency bands) Gain Range: 3±1dBi ~ 10±1dBi Vertical Beamwidth: 9±3° ~ 55±10°
Compatibility :
Adaptable Equipment Types: Vehicle-mounted suitcase-type, backpack-type, built-in in hand suitcase, medium-power base station and other security/communication equipment Interface Type: Embedded N-type connector Compatible Signals: 2G/3G/4G/5G, UAV, GPS/Bei
Environmental Adaptability :
Material: Special fiberglass for outdoor use Protection Capability: Resistance to high and low temperatures, humidity, collision and rain erosion
Core Functional Features :
Anti-vibration Design: Spring shock-absorbing sleeve
Description

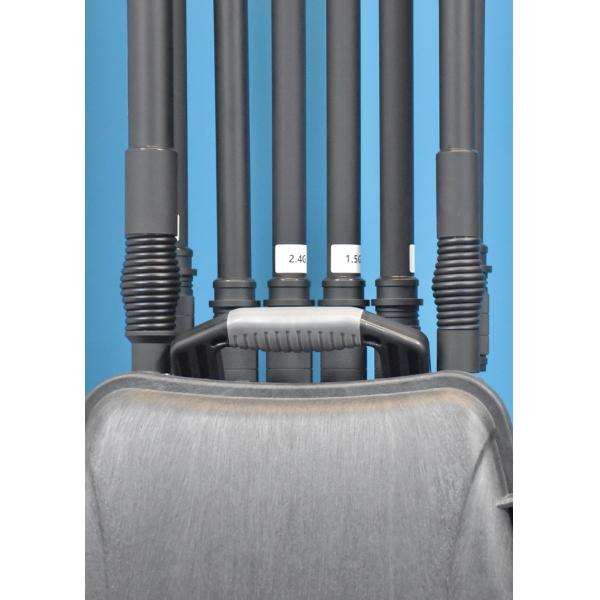

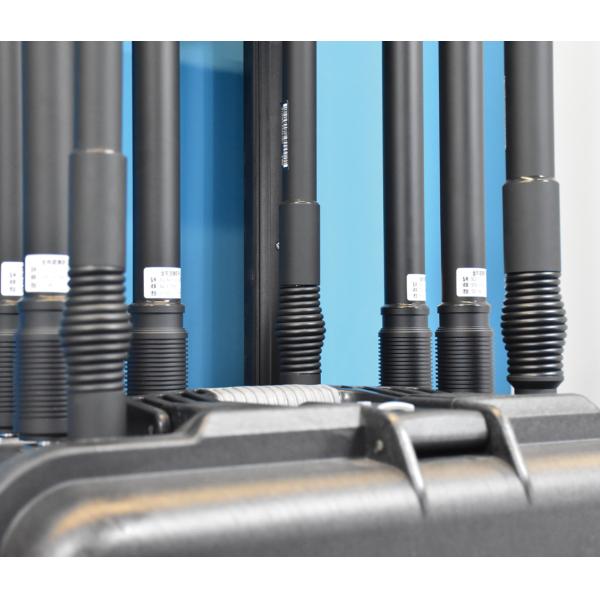

Jammer Antenna Shock-absorbing drum spring appearance Omnidirectional fiberglass antenna Suitable for backpack countermeasure equipment and vehicle-mounted suitcase-type equipment

This antenna is designed for "shock resistance + omnidirectional communication", compatible with multi-scenario security and wireless communication devices.

Key Features

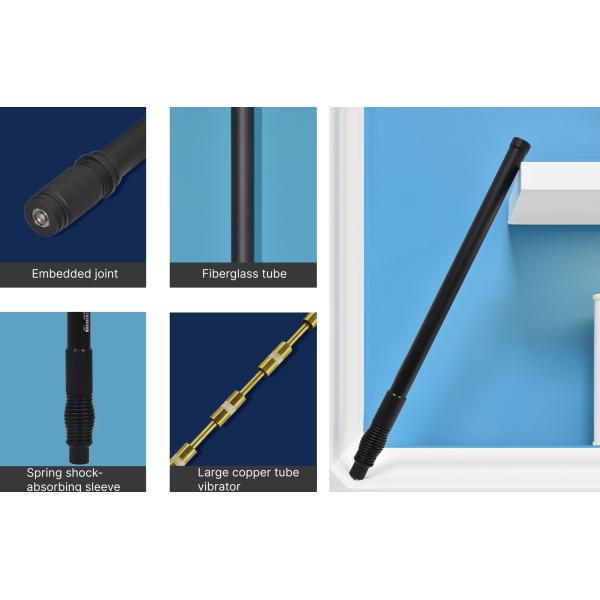

  • Appearance & Structure: Features shock-absorbing drum spring sleeve, tube caps (35mm/28mm), tube diameters (25mm/32mm), and dimensions Φ25*900mm/Φ32*900mm. Core parts: embedded N-type connector, FRP tube, antenna sleeve, large copper oscillator.
  • Key Params: All models: 100W power bearing, VSWR ≤1.5, 360° horizontal beamwidth (no coverage dead angles).
  • Frequency Bands: Covers 2G/3G/4G/5G (n41/n77/n78/n79), GSM, CDMA, TDD-LTE, FDD-LTE; plus UAV (flight control/navigation/image transmission), GPS/Beidou/WLAN, Bluetooth, WIFI-2.4G/5.8G. Specific bands: 433M/900M/1.2G/1.4G/1.5G/2.4G/5.2G/5.8G, with gain 3±1dBi-10±1dBi and vertical beamwidth 9±3°-55±10°.
Core Advantages
  1. Strong Shock Resistance: Shock-absorbing sleeve reduces vibration damage (e.g., vehicle jolts), stabilizes performance in mobile devices (vehicle-mounted/backpack-type), extends service life.
  2. Stable Performance: Large copper oscillator + 25mm/32mm tubes (32mm for higher power/efficiency) enables long-distance transmission; VSWR ≤1.5 (low loss) + 360° coverage, reliable for base stations and emergency devices.
  3. Easy Installation & Compatibility: Embedded N-type connector for simple setup; 25mm/32mm tubes fit most security devices (backpack/suitcase-type); 8 frequency bands work with UAV remotes, walkie-talkies, GPS.
  4. Durable & Environmentally Adaptable: Outdoor FRP material resists temperature changes, humidity; double protection (copper oscillator + FRP tube) withstands collisions/rain, suitable for long-term outdoor/field use.
Jammer Antenna - Shock-Absorbing Drum Spring, External Omni-Directional FRP (For Backpack/Vehicle Suitcase Equipment)
Total Parameter Table of Shock-Absorbing Drum Spring External Omnidirectional Antenna
Antenna Frequency Band Pipe Diameter (mm) Antenna Frequency Range (MHz) Antenna Gain (dBi) VSWR (Voltage Standing Wave Ratio) Power Handling (W) Horizontal Beamwidth Vertical Beamwidth Antenna Connector Antenna Size
433M 25 420-440 5±1 ≤1.5 100 360° 55±10° Embedded N-J Φ25*900mm
433M 32 420-440 5±1 ≤1.5 100 360° 55±10° Embedded N-J Φ32*900mm
900M 25 840-930 6±1 ≤1.5 100 360° 55±10° Embedded N-J Φ25*900mm
900M 32 840-930 6±1 ≤1.5 100 360° 55±10° Embedded N-J Φ32*900mm
1.2G 25 1180-1280 6±1 ≤1.5 100 360° 23±5° Embedded N-J Φ25*900mm
1.2G 32 1180-1280 6±1 ≤1.5 100 360° 23±5° Embedded N-J Φ32*900mm
1.4G 25 1430-1450 6±1 ≤1.5 100 360° 23±5° Embedded N-J Φ25*900mm
1.4G 32 1430-1450 6±1 ≤1.5 100 360° 23±5° Embedded N-J Φ32*900mm
1.5G 25 1560-1620 6±1 ≤1.5 100 360° 23±5° Embedded N-J Φ25*900mm
1.5G 32 1560-1620 6±1 ≤1.5 100 360° 23±5° Embedded N-J Φ32*900mm
2.4G 25 2400-2500 8±1 ≤1.5 100 360° 17±3° Embedded N-J Φ25*900mm
2.4G 32 2400-2500 8±1 ≤1.5 100 360° 17±3° Embedded N-J Φ32*900mm
5.2G 25 5150-5350 10±1 ≤1.5 100 360° 9±3° Embedded N-J Φ25*900mm
5.2G 32 5150-5350 10±1 ≤1.5 100 360° 9±3° Embedded N-J Φ32*900mm
5.8G 25 5700-5900 10±1 ≤1.5 100 360° 9±3° Embedded N-J Φ25*900mm
5.8G 32 5700-5900 10±1 ≤1.5 100 360° 9±3° Embedded N-J Φ32*900mm
Jammer Antenna - Shock-Absorbing Drum Spring, External Omni-Directional FRP (For Backpack/Vehicle Suitcase Equipment)Jammer Antenna - Shock-Absorbing Drum Spring, External Omni-Directional FRP (For Backpack/Vehicle Suitcase Equipment)
Shenzhen Fengqing Instrument Co., Ltd.

Crafted in China, Quality Forges Low-Altitude Security.

Upholding a "customer-first" philosophy, Fengqing Instrument is committed to providing professional service throughout the entire product lifecycle:

  • Pre-sales Consultation: Customized solution designs and product recommendations based on client needs and budget.
  • In-sales Support: Comprehensive technical support for installation, debugging, and operational training.
  • After-sales Service: Rapid-response system including remote support, on-site maintenance, and system upgrades.
