Automatic Target Tracking Anti Drone System Fpv Interception Uav Countermeasure
Automatic Target Tracking Anti Drone System Fpv Interception Uav Countermeasure
Specifications
Brand Name :
FengQing
Model Number :
FQ400
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiated
Payment Terms :
L/C,T/T
Supply Ability :
1000pcs/month
Delivery Time :
In 5 work day
Packaging Details :
Box Meets Your Requirements
Application :
Airport,Lab testing / Signal Jammer,Signal Jammer,conference,Control drone by GPS/GALILEO/GLONASS
Product name :
drone jammer,RF Power Amplifier For Signal Jammer,Anti Signal Jammer,GPRS Signal Jammer Amplifier,12 channels signal jammer
Usage :
Police Law Enforcement Military Security,Secuity Equipment
Function :
drone jammer block signal of drone,Isolate RF Signal
Size :
700*420*497 （mm）
Control distance :
1-3km
Dimension :
700*420*497 （mm）
Power supply :
AC220V/50~60Hz
Description

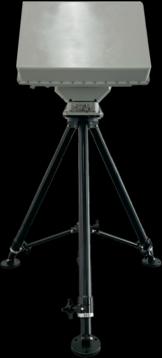

Product Description: This directional drone countermeasure gimbal is specifically designed for drone countermeasure scenarios. It features convenient setup and retrieval, quick module replacement and maintenance, supports remote control via a command and control terminal, and supports configuration of scheduled jamming. It can jam multiple frequency bands, effectively countering drones, and excels in environmental adaptability and sustained operation.


Features:

Multi-band precision countermeasures cover multiple mainstream drone jamming frequency bands, offering powerful transmit power to disrupt drone navigation, control, and image transmission signals, forcing them to hover, land, or return. The device also supports timed jamming transmissions.

Easy deployment and maintenance: Easy setup and retrieval, with module-level quick replacement and repair capabilities, facilitates rapid commissioning and maintenance.

Intelligent and flexible control: Connect to a command and control terminal for remote configuration and control of jamming, as well as timed jamming transmissions, for intelligent and efficient operation.


Main Parameters

Countermeasure Parameters Countermeasure Frequency Band Power
Countermeasure Frequency Band 1 433MHz (420 - 520MHz) 100W
Countermeasure Frequency Band 2 700MHz (700 - 830MHz) 100W
Countermeasure Frequency Band 3 900MHz (830 - 940MHz) 100W
Countermeasure Frequency Band 4 1.2G (1180 - 1280MHz) 100W
Countermeasure Frequency Band 5 1.5G (1550 - 1620MHz) 100W
Countermeasure Frequency Band 6 2.4G (2400 - 2500MHz) 100W
Countermeasure Frequency Band 7 5.2G (5150 - 5300MHz) 100W
Countermeasure Frequency Band 8 5.8G (5725 - 5925MHz) 100W
Remarks Countermeasure frequency bands and power can be customized according to requirements

Structural Parameters

Structural Parameters Details
Jamming Distance 1 - 3km
Horizontal Coverage Range 0° - 360°
Pitch Coverage Range 0° - +60°
Beam Width 30° - 40°
Total Power Consumption ≤2000W
Communication Method Ethernet RJ45 interface communication, TCP/IP protocol
Power Supply AC220V/50 - 60Hz
Operating Temperature - 40℃ - +70℃
Storage Temperature - 45℃ - +70℃
Waterproof Grade IP65
Dimensions 700420497 (mm)
Weight 44kg (including pan - tilt)
