433MHz Anti Drone Equipment Block Signal 100W Anti Jammer Device
433MHz Anti Drone Equipment Block Signal 100W Anti Jammer Device
Specifications
Brand Name :
FengQing
Model Number :
FQ400
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiated
Payment Terms :
L/C,T/T
Supply Ability :
1000pcs/month
Delivery Time :
In 5 work day
Packaging Details :
Box Meets Your Requirements
Application :
Airport,Lab testing / Signal Jammer,Signal Jammer,conference,Control drone by GPS/GALILEO/GLONASS
Product name :
drone jammer,RF Power Amplifier For Signal Jammer,Anti Signal Jammer,GPRS Signal Jammer Amplifier,12 channels signal jammer
Usage :
Police Law Enforcement Military Security,Secuity Equipment
Function :
drone jammer block signal of drone,Isolate RF Signal
Size :
700*420*497 （mm）
Control distance :
1-3km
Dimension :
700*420*497 （mm）
Power supply :
AC220V/50~60Hz
Description

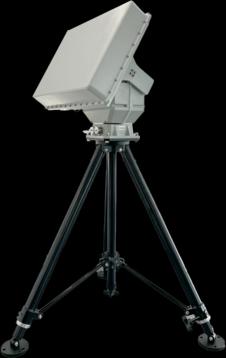

Anti Jammer Device Anti-Drone Fighter Anti-Uav System with directional countermeasure Gimbal
Product Overview

This directional drone countermeasure gimbal is specifically designed for drone countermeasure scenarios. It features convenient setup and retrieval, quick module replacement and maintenance, supports remote control via a command and control terminal, and supports configuration of scheduled jamming. It can jam multiple frequency bands, effectively countering drones, and excels in environmental adaptability and sustained operation.

Key Features
  • Multi-band precision countermeasures: Covers multiple mainstream drone jamming frequency bands with powerful transmit power to disrupt drone navigation, control, and image transmission signals, forcing them to hover, land, or return.
  • Scheduled operation: Supports timed jamming transmissions for automated operation.
  • Easy deployment and maintenance: Quick setup and retrieval with module-level replacement capabilities for rapid commissioning and maintenance.
  • Intelligent control: Remote configuration and control via command terminal with support for timed jamming transmissions.
Technical Specifications
Countermeasure Parameters
Countermeasure Parameters Countermeasure Frequency Band Power
Countermeasure Frequency Band 1 433MHz (420 - 520MHz) 100W
Countermeasure Frequency Band 2 700MHz (700 - 830MHz) 100W
Countermeasure Frequency Band 3 900MHz (830 - 940MHz) 100W
Countermeasure Frequency Band 4 1.2G (1180 - 1280MHz) 100W
Countermeasure Frequency Band 5 1.5G (1550 - 1620MHz) 100W
Countermeasure Frequency Band 6 2.4G (2400 - 2500MHz) 100W
Countermeasure Frequency Band 7 5.2G (5150 - 5300MHz) 100W
Countermeasure Frequency Band 8 5.8G (5725 - 5925MHz) 100W
Countermeasure frequency bands and power can be customized according to requirements.
Structural Parameters
Structural Parameters Details
Jamming Distance 1 - 3km
Horizontal Coverage Range 0° - 360°
Pitch Coverage Range 0° - +60°
Beam Width 30° - 40°
Total Power Consumption ≤2000W
Communication Method Ethernet RJ45 interface communication, TCP/IP protocol
Power Supply AC220V/50 - 60Hz
Operating Temperature -40℃ - +70℃
Storage Temperature -45℃ - +70℃
Waterproof Grade IP65
Dimensions 700 * 420 * 497 (mm)
Weight 44kg (including pan-tilt)
