Single Screw Aqua Feed Extruder 4-6t/H Fish Pellets Machine Fish Meal Machine Animal Fish Feed Extruder Floating Fish Pellets Plant For Fish Feed Production
Single Screw Aqua Feed Extruder 4-6t/H Fish Pellets Machine Fish Meal Machine Animal Fish Feed Extruder Floating Fish Pellets Plant For Fish Feed Production
Single Screw Aqua Feed Extruder 4-6t/H Fish Pellets Machine Fish Meal Machine Animal Fish Feed Extruder Floating Fish Pellets Plant For Fish Feed Production
Single Screw Aqua Feed Extruder 4-6t/H Fish Pellets Machine Fish Meal Machine Animal Fish Feed Extruder Floating Fish Pellets Plant For Fish Feed Production
Single Screw Aqua Feed Extruder 4-6t/H Fish Pellets Machine Fish Meal Machine Animal Fish Feed Extruder Floating Fish Pellets Plant For Fish Feed Production
Single Screw Aqua Feed Extruder 4-6t/H Fish Pellets Machine Fish Meal Machine Animal Fish Feed Extruder Floating Fish Pellets Plant For Fish Feed Production
Specifications
Brand Name :
Serworld
Model Number :
SW165
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
LC/TT
Supply Ability :
35 days for 1 set
Delivery Time :
45-60days
Packaging Details :
Wooden Pallet
Price :
USD10,000-100,000/SET
Main Power(kw) :
160
Feeder Power(kw) :
2.2
Conditioner (kw) :
18.5
Capacity(t/h) :
4-6
Motor brand :
ABB or SIEMENS
Expansion Coefficient :
1.5-1.9
Steam Consumpition(kg/t) :
50-60kg/t
Screw Diameter :
165mm
Length-to-diameter ratio (L/D ratio) of the screw :
13.5
Cutting motor speed（rpm) :
0-2900
Production per unit energy consumption(kg/Kw.h) :
>23
Feed floating rate :
>99%
Voltage :
220V
Power :
55kw
Control System :
PLC
Features :
High Efficiency, Easy Operation, Low Noise
Motivation Type :
Belt or Gear
Hourly Output :
900-1200kg/h
Motor Brand :
Siemens
Application :
Animal Feed Production
Production Capacity :
8-10T
Function :
Aniaml Feed Machine
Pellet Size :
2-14mm
Usage :
Animal Feed Production
Color :
custom made
Applicable Industries :
Manufacturing Plant, Farms, Feed Factory
Pellets Diameter :
2-12mm
Condition :
New
Raw Material :
Powder
Fit For :
Chicken, pig, duck etc animals
Frequency :
50Hz
Motor Power :
11kw
Steam Temperature :
130-150ºC
Description

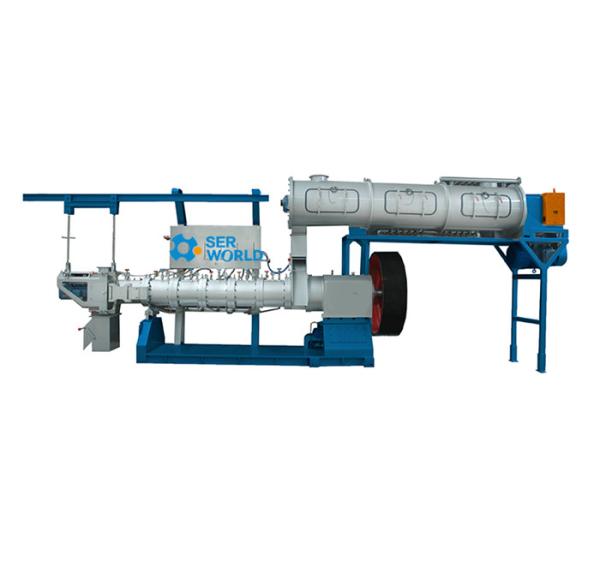

Single-Screw Extruder Fish Feed Production Equipment Animal Feed Pellet Making Machine

Application scope:

The SW165 series single-screw extruder is primarily deployed in medium-to-large scale feed mills for the extrusion processing and shaping of aquatic feeds. Through integrated processes including preconditioning and mechanical extrusion, it ensures the production of water-stable pellets with minimized solubility in aquatic environments.

Main features:

(1) Stirring rods rotate around conical disc in stirring tank. Feeder makes automatic adjustment according to electric current changes of main machine with variable-frequency drive to provide material evenly and stably. Therefore, the main engine keeps high productivity. The machine is controlled by PLC programming control system in which operation panel displays various operating parameters.

(2) In different diameter cylinder conditioner, raw material is completely soaked and gelatinized in the process of water and steam adding. At the same time, addition material is addable inside including fish oil, lecithin, fish soluble and any formula material of strong attractant and high-energy, which achieve the addition of high-fat and high-viscous material. Now the maximum adding amount of fat is ≥ 20%.

(3) The main machine is specially designed with geometric thread machine to maximize the effect of mechanical kneading. Material is extruded and cured completely and capacity is increased 15-20% more than before.

(4) Special aquatic feed can be produced through vacuum exhaust system that produces floating feed with density of 360~460g/cm³ and fast sinking feed with density of 620~720g/cm³. Moreover, this series can produce sophisticated sinking pellet such as penaeus monodon feed with advantages including 100% sinking rate, easy digestion, good water resistance and favorable appearance.

(5) The combination of suspending rotary mold holder and cutter is conducive to quickly replace mold and easily adjust cutter with less footprint. Time for mold replacement is short to produce feed of different specifications. Operation is simple and maintenance of machine is easy. Cutter is controlled by the frequency converter to guarantee consistent length of feed.

​Technical parameters:

Model

SW165

SW215

SW265

Main Power(kw)

160

250/315

500/600

Feeder Power(kw)

2.2

3

3

Conditioner Power(kw)

18.5

22

 22

Capacity(t/h)

4-6

8-12

15-18

Single Screw Aqua Feed Extruder 4-6t/H Fish Pellets Machine Fish Meal Machine Animal Fish Feed Extruder Floating Fish Pellets Plant For Fish Feed Production

Single Screw Aqua Feed Extruder 4-6t/H Fish Pellets Machine Fish Meal Machine Animal Fish Feed Extruder Floating Fish Pellets Plant For Fish Feed Production

Single Screw Aqua Feed Extruder 4-6t/H Fish Pellets Machine Fish Meal Machine Animal Fish Feed Extruder Floating Fish Pellets Plant For Fish Feed Production

Feed sample shows:

Single Screw Aqua Feed Extruder 4-6t/H Fish Pellets Machine Fish Meal Machine Animal Fish Feed Extruder Floating Fish Pellets Plant For Fish Feed Production
