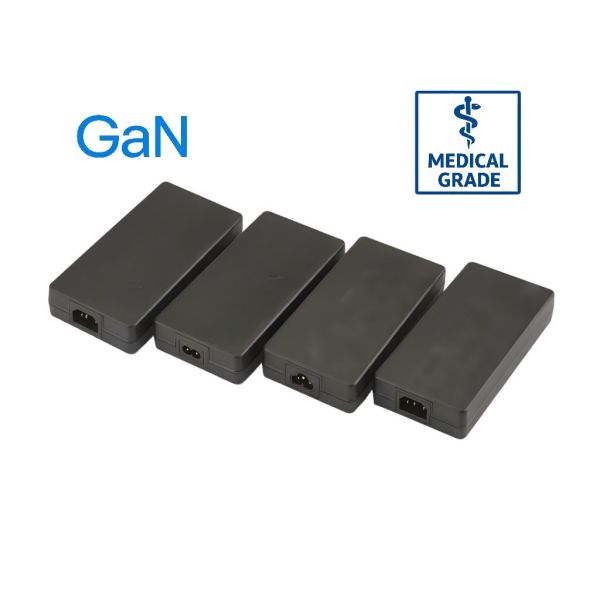

300W GaN Medical Desktop Power Supply: 48V 6.25A Ultra-Safe Solution

Product Overview

The 300W GaN Medical Desktop Power Supply represents the pinnacle of high-density power engineering for the healthcare sector. By leveraging advanced Gallium Nitride (GaN) power semiconductors, this unit delivers a massive 48V 6.25A output in a form factor significantly smaller and more efficient than traditional silicon-based power bricks. It is the premier power choice for Rehabilitation Training Equipment, High-Power Surgical Motors, and Automated Clinical Actuators.

Built to the most rigorous global medical safety standards, including full compliance with IEC 60601-1 (3.1 Edition), this unit features 2 x MOPP (Means of Patient Protection). The GaN-driven architecture achieves 95%+ efficiency, minimizing heat dissipation in sensitive clinical environments. Its robust isolated design and ultra-low leakage current ensure absolute safety for patients undergoing active rehabilitation therapy or motorized treatment.

Key Specifications

Our 300W GaN medical series maximizes power delivery while offering a range of high-voltage outputs to drive the most demanding medical hardware.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 300W Continuous Maximum.

• Standard Output: 48V 6.25A (Optimized for heavy-duty rehabilitation motors and high-voltage actuators).

• Other Available Outputs:

  • 12V 25A

  • 15V 20A

  • 19V 15.8A

  • 24V 12.5A

  • 36V 8.33A

  • 54V 5.55A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• GaN Architecture: High-frequency switching for 95%+ Efficiency and superior power density.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in critical care and therapy zones.

• AC Inlet: IEC320-C14 (3-Pin grounded) or C18 (2-Pin isolated) desktop configurations.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year uptime for intensive-use hospital environments.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 300W medical-grade output is optimized for high-power therapeutic and diagnostic electronics:

• Rehabilitation Training Equipment: Motorized treadmills, robotic gait trainers, and advanced exoskeletons.

• Surgical Equipment: Motorized surgical tables, surgical laser systems, and high-power orthopedic drills.

• Therapy Equipment: High-intensity professional Therapy Units and clinical Therapy Units.

• Rehabilitation: Automated physical Rehabilitation Devices and intensive-use robotic massage systems.

• Diagnostic Systems: High-performance medical computing workstations and multi-display diagnostic centers.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical or rehabilitation procedures.

• Motor-Grade Peak Power Handling: Engineered to manage the high inrush currents and back-EMF typical of motorized rehabilitation equipment without triggering false-trips.

• Advanced Thermal Management: GaN technology significantly reduces energy loss as heat, allowing for a fanless, silent design that prevents the spread of airborne contaminants in sterile environments.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
