100W Max Medical Desktop AC Adapter: 20V 5A / 24V 4.16A Ultra-Safe Power Solution

Product Overview

The 100W Max Medical Desktop AC Adapter is a premium power conversion solution engineered to support the high-performance computing needs of modern healthcare. Delivering a versatile 20V 5A or a stable 24V 4.16A, this adapter is the primary power choice for Medical-Grade Workstations, Nursing Carts (WOW), and Integrated Clinical Tablets.

Designed in strict compliance with global medical safety standards (IEC 60601-1), it features reinforced insulation and an ultra-low leakage current architecture to ensure maximum safety for both patients and healthcare professionals. The desktop form factor provides a secure, grounded connection that effectively suppresses electromagnetic interference (EMI), ensuring that sensitive diagnostic software and medical-grade displays operate with absolute data integrity and visual clarity. Whether used in a centralized nurse station or a mobile diagnostic cart, this 100W unit delivers the sustained power and medical-grade protection required for high-stakes clinical environments.

Key Specifications

Our medical series incorporates redundant safety layers and advanced power management to ensure fail-safe performance in interference-sensitive environments.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 100W Continuous Maximum.

• Common Output Configurations:

  • 20V Series: 20V 5A (100W Max - Ideal for medical laptops and tablets)

  • 24V Series: 24V 4A / 24V 4.16A (100W Max - Standard for clinical monitors)

  • 12V Series: 12V 8.33A (100W Max - High-current for imaging processors)

  • 19V/19.5V Series: 19.5V 5.12A (100W Max)

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in critical care zones.

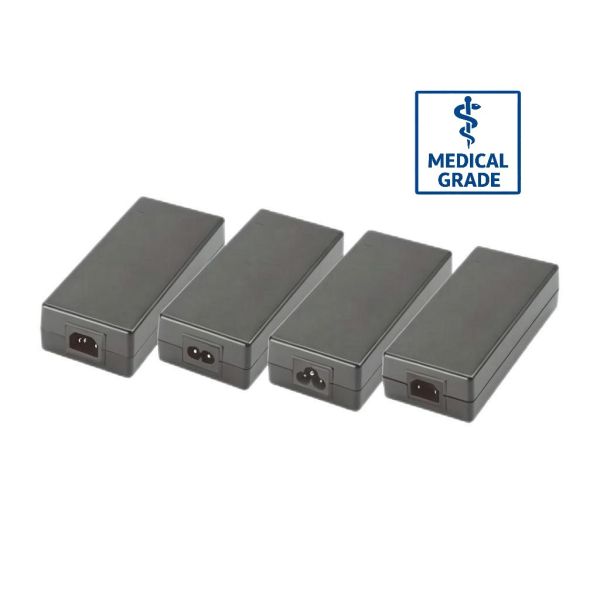

• AC Inlet Options: IEC320-C14 / C6 (Grounded Class I for maximum EMI shielding).

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 100W medical-grade output is optimized for high-performance clinical computing and diagnostic electronics:

• Medical Workstations: Nursing workstations-on-wheels (WOW), mobile clinical carts, and pharmacy dispensers.

• Clinical Tablets: Medical-grade touchscreen tablets and diagnostic handhelds.

• Patient Monitoring: Multi-parameter vital signs hubs and centralized monitoring stations.

• Diagnostic Imaging: Portable ultrasound workstations and high-resolution medical displays.

• Laboratory & Analytical: Automated blood analyzers and precision liquid handling systems.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: High-voltage 4000VAC primary-to-secondary isolation for absolute patient protection.

• Workstation-Grade EMI/EMC: Optimized to prevent interference with wireless hospital infrastructure (WLAN) and sensitive medical sensors.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active OVP, OCP, and SCP with intelligent auto-recovery to maintain device operation during electrical transients.
