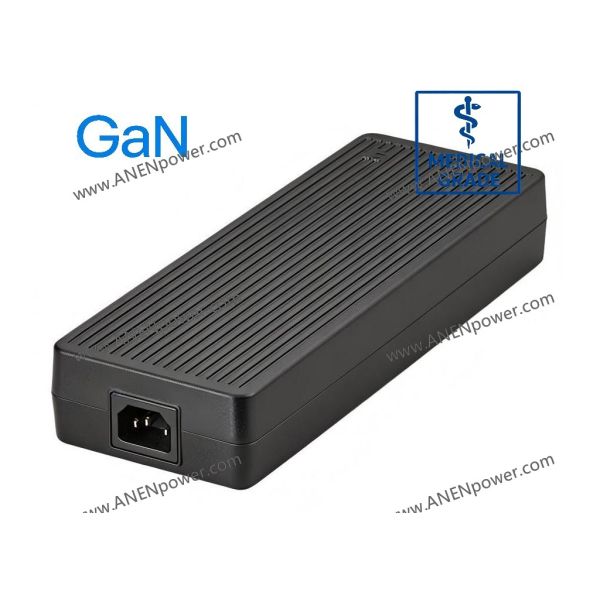

500W GaN Medical Desktop AC/DC Adapter: 24V 20.8A High-Density Power Solution

Product Overview

The 500W GaN Medical AC/DC Adapter is a flagship-tier, clinical-grade power solution designed for high-performance medical systems that require massive energy throughput in a compact desktop form factor. By leveraging state-of-the-art Gallium Nitride (GaN) power semiconductors, this unit achieves a peak efficiency of 95.5%+, delivering a stable 24V 20.8A output. It is the premier choice for Advanced Therapy Consoles, Surgical Robotic Systems, and High-Intensity Clinical Actuators.

Fully compliant with IEC 60601-1 (3.1 Edition) and featuring 2 x MOPP (Means of Patient Protection), this power supply ensures the highest level of patient and operator safety. The GaN-driven architecture allows for a completely fanless, silent design, which is essential for maintaining sterile and quiet environments in operating theaters and intensive care units. With ultra-low leakage current and superior EMI suppression, it provides a clean, interference-free power link for mission-critical medical hardware.

Key Specifications

Our 500W GaN medical series is optimized for high-voltage and high-current reliability, offering a versatile range of power configurations for specialized healthcare equipment.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 500W Continuous Maximum.

• Standard Output: 24V 20.8A (Optimized for heavy-duty therapy controllers and motorized surgical tools).

• Other Available Outputs:

  • 19V 26.3A

  • 28V 17.8A

  • 36V 13.8A

  • 48V 10.4A

  • 54V 9.25A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• GaN Technology: High-frequency switching for 95.5%+ Efficiency and a slim, fanless design.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in high-acuity zones.

• AC Inlet: IEC320-C14 (3-Pin grounded) desktop configuration.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year uptime for intensive-use hospital environments.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 500W medical-grade output is optimized for high-power diagnostic and therapeutic electronics:

• Therapy Consoles: High-intensity professional Therapy Units, surgical laser controllers, and advanced shockwave therapy devices.

• Surgical Robotics: Robotic surgery control hubs, motorized surgical table platforms, and orthopedic power tool systems.

• Rehabilitation: Heavy-duty motorized Rehabilitation Devices and robotic gait training systems.

• Imaging Systems: Mobile X-ray/CT processing units and centralized high-performance imaging workstations.

• Laboratory Systems: High-throughput automated blood analyzers and large-scale clinical centrifuges.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical procedures.

• High-Current Industrial Connectivity: Equipped with high-retention, multi-pin locking DC connectors (e.g., 6-Pin/8-Pin Power DIN or circular medical connectors) to safely handle high-current loads without electrical arcing or heat buildup.

• Advanced Thermal Management: GaN technology minimizes energy loss as heat, allowing for a fanless, silent design that prevents the spread of airborne contaminants in sterile hospital environments.

• Motor-Grade Peak Load Handling: Engineered to manage the high inrush currents and back-EMF typical of motorized therapy systems and high-torque therapeutic actuators.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP), and Short-Circuit Protection
