45W GaN Medical USB-C PD AC Adapter: 5V-20V Adaptive Ultra-Compact Power Solution

Product Overview

The 45W GaN Medical USB-C PD AC Adapter is a cutting-edge, clinical-grade power solution engineered for the high-efficiency and safety demands of modern mobile healthcare. By utilizing advanced Gallium Nitride (GaN) technology, this adapter provides a powerful 45W output in an ultra-compact form factor that runs cooler and more efficiently than standard silicon adapters.

Supporting Power Delivery (PD 3.0) with multi-voltage output (5V/9V/12V/15V/20V), it is the ideal universal power source for Handheld Ultrasound Devices, Clinical Tablets, and Portable Patient Monitors. Fully compliant with IEC 60601-1 (3.1 Edition) and featuring 2 x MOPP (Means of Patient Protection), this adapter ensures absolute electrical isolation and ultra-low leakage current, making it safe for use in the immediate patient vicinity and home-care environments.

Key Specifications

Our 45W GaN medical series balances rapid multi-voltage charging with the most stringent patient safety protocols.

• Technology: GaN (Gallium Nitride) for superior power density and thermal efficiency.

• Input Voltage: 100-240V AC, 50/60Hz (Global Universal Compatibility).

• Output Port: USB Type-C (Power Delivery 3.0 / PPS Support).

• Multi-Voltage Output: 5V 3A, 9V 3A, 12V 3A, 15V 3A, 20V 2.25A (45W Max).

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for reinforced electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to prevent micro-shocks in clinical settings.

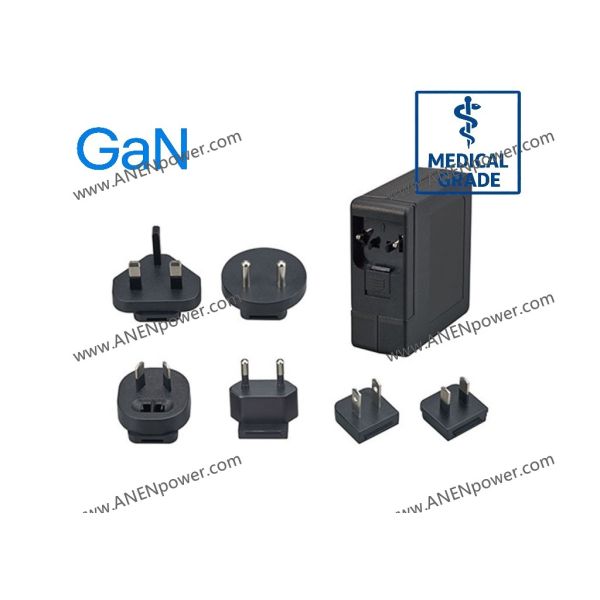

• Plug Types: Interchangeable AC Plugs (US/EU/UK/AU) for seamless global clinical mobility.

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 45W GaN medical-grade output is optimized for high-performance portable and diagnostic electronics:

• Portable Medical Devices: Handheld ultrasound scanners, portable ECG monitors, and mobile diagnostic hubs.

• Clinical Tablets & Laptops: Medical-grade tablets used for patient charting and digital imaging.

• Patient Monitoring: Bedside vital signs monitors and multi-parameter telemetry units.

• Rehabilitation: Advanced TENS Therapy Units and mobile Rehabilitation Devices.

• Respiratory Care: Control logic and power for portable nebulizers and CPAP therapy modules.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical or home-care use.

• GaN Thermal Management: Advanced semiconductor technology ensures the adapter remains cool to the touch even during sustained 45W loads.

• Clinical-Grade EMI/EMC: Precision filtering to prevent electronic interference with sensitive biosensors and wireless hospital networks (WLAN).

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Intelligent Voltage Negotiation: Automatically detects the connected device to deliver the optimal voltage, protecting sensitive medical micro-controllers.
