6W Medical AC/DC Adapter: Interchangeable Plug, 5V 1.2A / 12V 0.5A Ultra-Safe Solution

Product Overview

The 6W Medical Interchangeable Plug AC/DC Adapter is a versatile, clinical-grade power solution designed for global medical portability. Delivering a stable 5V 1.2A or 12V 0.5A output, this adapter is the premier choice for Handheld Monitoring Devices, Portable Diagnostic Sensors, and Global Home-Healthcare Equipment.

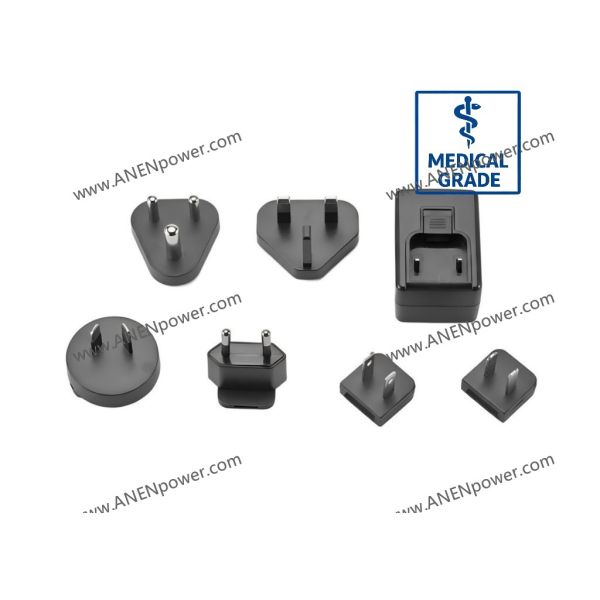

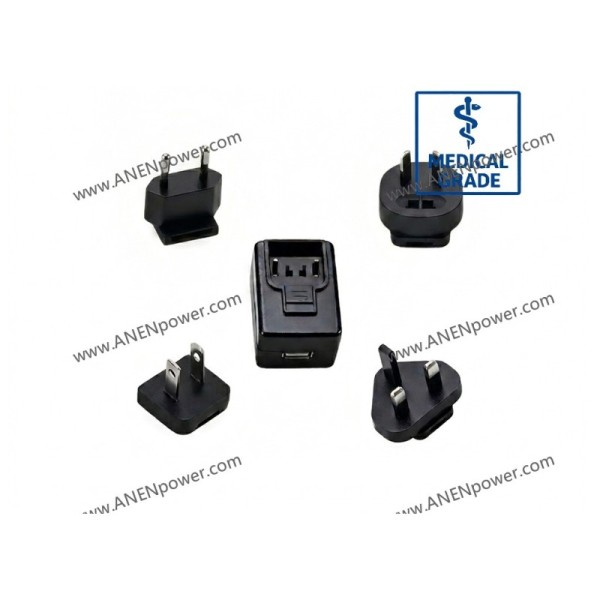

Equipped with a secure, tool-free Interchangeable AC Plug System (US/EU/UK/AU), this unit allows medical device manufacturers to ship a single SKU worldwide. Built to the most stringent safety benchmarks, including IEC 60601-1 (3.1 Edition), it features 2 x MOPP (Means of Patient Protection) and an ultra-low leakage current design. This ensures maximum safety for patients and practitioners, even in direct-contact monitoring applications where electrical isolation is critical.

Key Specifications

Our 6W medical series maximizes global compatibility while offering a range of precise voltage outputs for sensitive healthcare electronics.

• Input Voltage: 100-240V AC, 50/60Hz (Universal Global Compliance).

• Total Output Power: 6W Continuous Maximum.

• Standard Output Options:

  • 5V 1.2A (Optimized for USB-powered sensors and digital logic).

  • 12V 0.5A (Ideal for desktop monitoring hubs and micro-actuators).

• Other Available Outputs:

  • 5V 1A

  • 9V 0.66A

  • 15V 0.4A

  • 24V 0.25A

• Medical Safety Compliance: Fully compliant with IEC/EN/ANSI/AAMI ES 60601-1 (3.1 Edition).

• Global Portability: Interchangeable AC Plugs available for US, EU, UK, and AU markets.

• Isolation Protection: 2 x MOPP (Means of Patient Protection) for superior electrical isolation.

• Leakage Current: Ultra-low leakage current (< 100µA) to ensure patient safety in the patient vicinity.

• Efficiency: Meets DoE Level VI and CoC Tier 2 energy efficiency standards.

• MTBF (Reliability): > 100,000 Hours, ensuring multi-year clinical uptime.

• Global Certifications: UL/cUL (Medical), CE (MDR), TUV-GS, CB, FCC, RoHS, REACH.

Ideal Applications

The 6W medical-grade output is optimized for high-sensitivity diagnostic and therapeutic electronics:

• Monitoring Devices: Portable pulse oximeters, handheld blood pressure monitors, and bedside telemetry hubs.

• Diagnostic Sensors: Electronic stethoscopes, handheld ECG recorders, and smart wearable trackers.

• Therapy Equipment: Low-power TENS Therapy Units and clinical Therapy Units.

• Rehabilitation: Portable massage controllers and micro Rehabilitation Devices.

• Home Healthcare: Automated health tracking stations and remote patient monitoring (RPM) gateways.

Professional Safety Suite

• Reinforced 2 x MOPP Isolation: 4000VAC primary-to-secondary isolation for absolute safety during clinical or home-care use.

• Signal-Grade Low Ripple: Specialized output filtering to ensure Low Ripple & Noise, protecting the integrity of sensitive physiological data and analog-to-digital conversions.

• Secure Locking Plug System: The interchangeable head mechanism is designed for high retention, preventing accidental disconnection during critical monitoring.

• Anti-Bacterial & Flame-Retardant Casing: UL94 V-0 rated high-impact housing, designed to withstand frequent disinfection with clinical-grade chemical agents.

• Comprehensive Protection: Active Over-Voltage (OVP), Over-Current (OCP), and Short-Circuit Protection (SCP) with intelligent auto-recovery.
